996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Drive Train, Front Gearbox Internals Parts Diagram

Atlas JSV Utility Vehicle

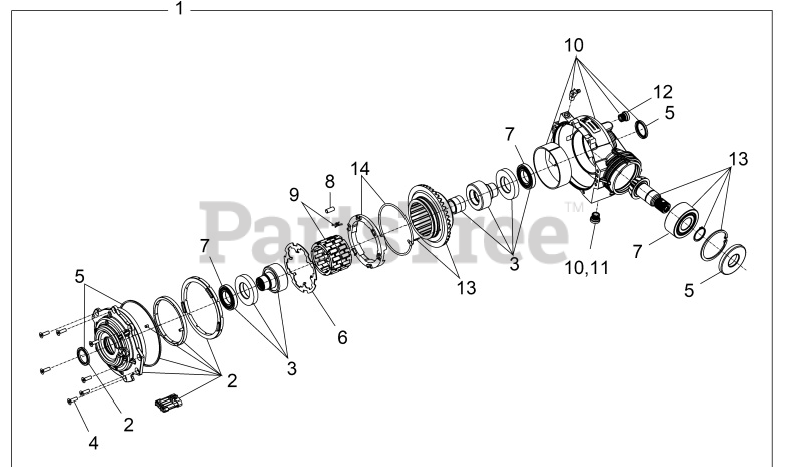

Drive Train, Front Gearbox Internals Parts Diagram

  • Title

1

Gravely 21902162

ASM-GEARCASE,FRONT,5

Note: Includes Item Number 2 Through 14

$

$

Currently unavailable

2

Gravely 21900771

ASM-COVER,OUTPUT

$

$

Not available

3

Gravely 21900673

KIT-HUB,ASM

$

$

Not available

4

Gravely 21900787

KIT-FASTENER

$

$

Not available

5

Gravely 21900645

KIT-SEAL REPAIR

$

$

Not available

6

Gravely 21901203

PLATE-4WD ARMATURE

$

$

Not available

7

Gravely 21900715

BEARING-PINION,5306

$

$

Not available

8

Gravely 21901204

K-CLUTCH ROLLS

$

$

Not available

9

Gravely 21901852

ASSY, ROLL CAGE ZN

$

$

Not available

10

ASM., GEARCASE

$

$

Not available

11

Gravely 21900653

DRAIN PLUG(6203-95-010)

$

$

Not available

12

Gravely 21900648

FILL PLUG(1300-04-001-T)

$

$

Not available

13

KIT-GEAR HOUSING & PINION GEAR ASSSY

$

$

Not available

14

Gravely 21901207

K-TORSION SPRING & RETAINER

$

$

Not available
