996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Drive Train, Clutch Cover and Ducting Parts Diagram

Atlas JSV Utility Vehicle

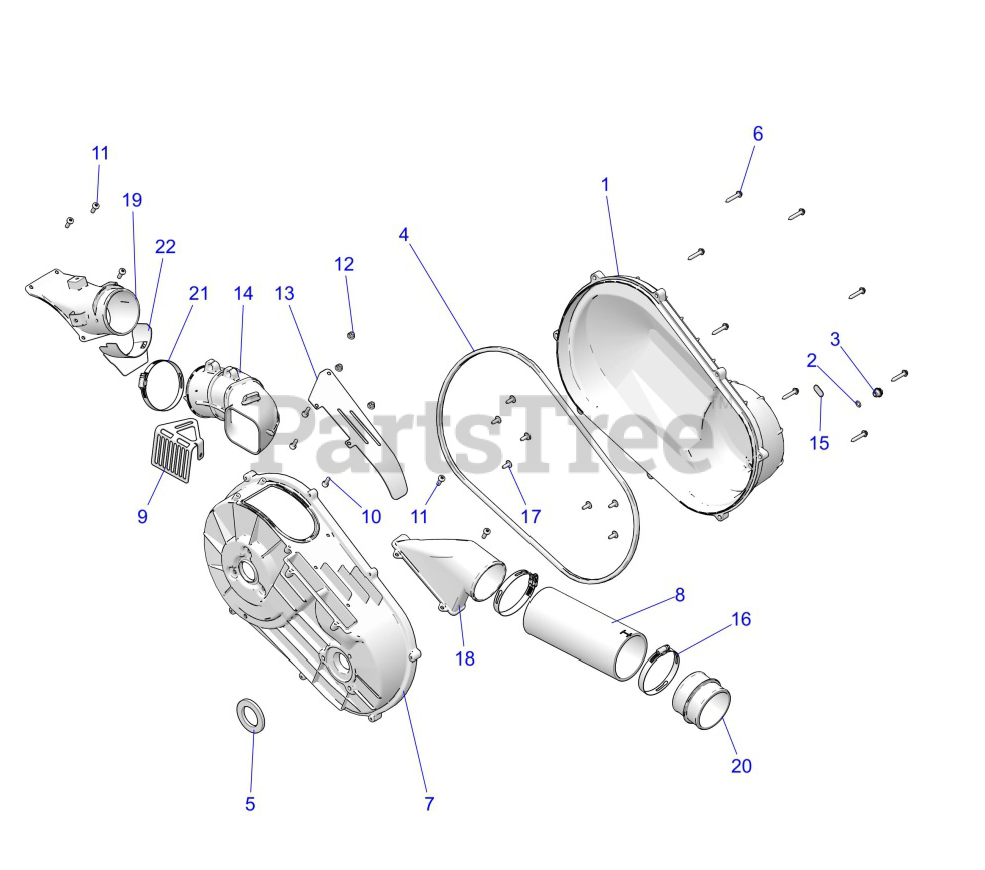

Drive Train, Clutch Cover and Ducting Parts Diagram

  • Title

1

Gravely 21902097

ASM-COVER,CLUTCH,OUTER

$

$

Currently unavailable

2

Gravely 21900208

O RING-.364X.504X.07

$

$

Not available

3

Gravely 21900253

PLUG-DRAIN

$

$

Not available

4

SEAL-OUTER CLUTCH COVER

$

$

Not available

5

Gravely 21902096

SEAL, COVER, PTO

$

$

Currently unavailable

6

Gravely 21900439

SCR-HXFL-M6X35 ZOD HILO

$

$

Not available

7

Gravely 21902091

ASM., COVER, CLUTCH, INNER

$

$

Currently unavailable

7

Gravely 21902094

COVER, CLUTCH, INNER, BLACK

Note: Includes Item Number 5, 7, 10, 11, 12, 13, 18, 19, 21

$

$

Currently unavailable

8

Gravely 21902102

HOSE-CLUTCH,INTAKE

$

$

Currently unavailable

9

Gravely 21902577

BRKT-BELT SCREEN

$

$

Currently unavailable

10

Gravely 21900395

SCR-M6X1.0X20MM,TX,PH,8.8-B

$

$

Not available

11

Gravely 21900428

SCR-#14X3/4 HI/LO-PH-PN TRX-M

$

$

Not available

12

Gravely 21900472

NUT-HXFL-M6X1.0 8 ZB3 NYL

$

$

Not available

13

Gravely 21902092

BRKT-GUARD,CLUTCH COVER

$

$

Currently unavailable

14

Gravely 21902101

DUCT-CLUTCH,AIR OUTLET

$

$

Currently unavailable

15

Gravely 21901396

DECAL, BELT, CAUTION/CHECK

$

$

Not available

16

Gravely 21902104

CLAMP-HOSE SLOTTED,89-100 DIA

$

$

Currently unavailable

17

SCR-TXTH-M6X1.0X16 ZPB P80

$

$

Not available

18

Gravely 21902093

DUCT-CLUTCH,AIR INLET

$

$

Currently unavailable

19

Gravely 21902095

DUCT-CLUTCH,AIR OUTLET

$

$

Currently unavailable

20

Gravely 21902103

BOOT-HOSE ADAPTER

$

$

Currently unavailable

21

Gravely 21900349

CLAMP-WORM DRIVE,3.69 DIA

$

$

Not available

22

WELD-GUARD,CLUTCH

Note: Includes Item Number 22

$

$

Not available

22

BRKT-GUARD,CLUTCH COVER

$

$

Not available
