996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 024000 - 024999) Body, Box Assembly Parts Diagram

Atlas JSV Utility Vehicle

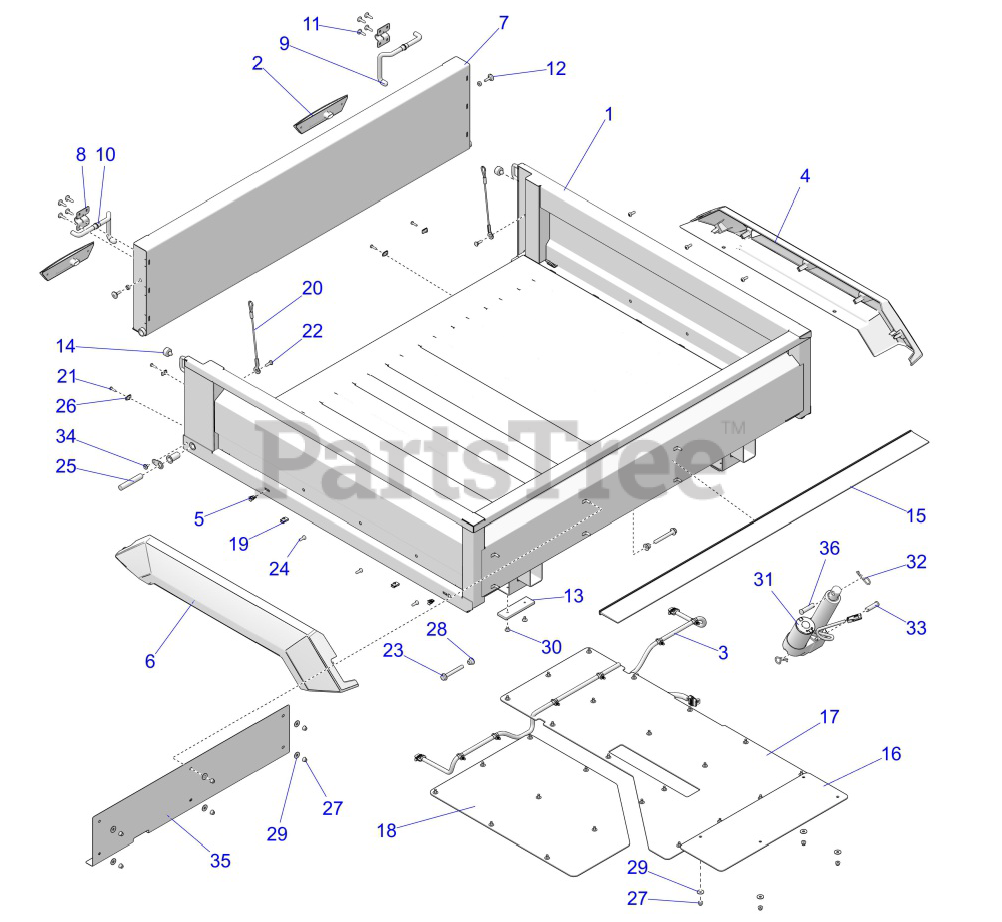

Body, Box Assembly Parts Diagram

  • Title

1

Gravely 21902568

WELD-BOX,ARNS,GRVLY RED

$

$

Currently unavailable

2

Gravely 21900071

ASM-TAILLIGHT

$

$

Not available

3

Gravely 21902569

HARNESS,BOX,ARNS

$

$

Currently unavailable

4

Gravely 21900912

FLARE-BOX,LH,ARIENS

$

$

Not available

5

Gravely 21901360

CLIP, DASH TRIM METAL

$

$

Not available

6

Gravely 21901252

FLARE-BOX,RH,ARIENS

$

$

Not available

7

TAILGATE, RED

$

$

Not available

8

Gravely 21901458

BRKT-TAILGATE LATCH

$

$

Not available

9

Gravely 21901318

CAP, TAILGATE LATCH

$

$

Not available

10

Gravely 21901327

BUSHING, TAILGATE LATCH

$

$

Not available

11

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

12

Gravely 21900870

SCR-TXTH-M6X1.0X25 RIE,SHDR

$

$

Not available

13

Gravely 21900217

BUMPER-BOX BASE

$

$

Not available

14

Gravely 21901317

BUMPER, TAILGATE

$

$

Not available

15

TRIM-BOX

$

$

Not available

16

Gravely 21902570

SHIELD-HEAT,EXHAUST,FRONT

$

$

Currently unavailable

17

Gravely 21902571

SHIELD-HEAT,EXHAUST,REAR

$

$

Currently unavailable

18

Gravely 21902572

SHIELD-HEAT,EXHAUST,SIDE

$

$

Currently unavailable

19

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

20

Gravely 21901759

TAILGATE CABLE

$

$

Not available

21

Gravely 21901358

SCREW

$

$

Not available

22

Gravely 21900390

BLT-SHLDR .188X.188X.25-20

$

$

Not available

23

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

24

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

25

Gravely 21901455

PIN-TAILGATE MOUNT

$

$

Not available

26

Gravely 21902574

NUT-U,CHIMNEY,10-24-B

$

$

Currently unavailable

27

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

28

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

29

Gravely 21901332

WASHER

$

$

Not available

30

Gravely 21900497

RIVET(50) *

$

$

Not available

31

Gravely 21902329

ACTUATOR,BOX LIFT,CMPT,TTN

$

$

Currently unavailable

32

Gravely 21901334

CLIP, HITCH PIN

$

$

Not available

33

Gravely 21901335

PIN, CLEVIS

$

$

Not available

34

Gravely 21900409

SCR-M6X1X16 TR/TX-M

$

$

Not available

35

Gravely 21902573

SHIELD-HEAT,BOX,FRONT

$

$

Currently unavailable

36

Gravely 21901336

PIN, CLEVIS BOX LIFT 2"

$

$

Not available
