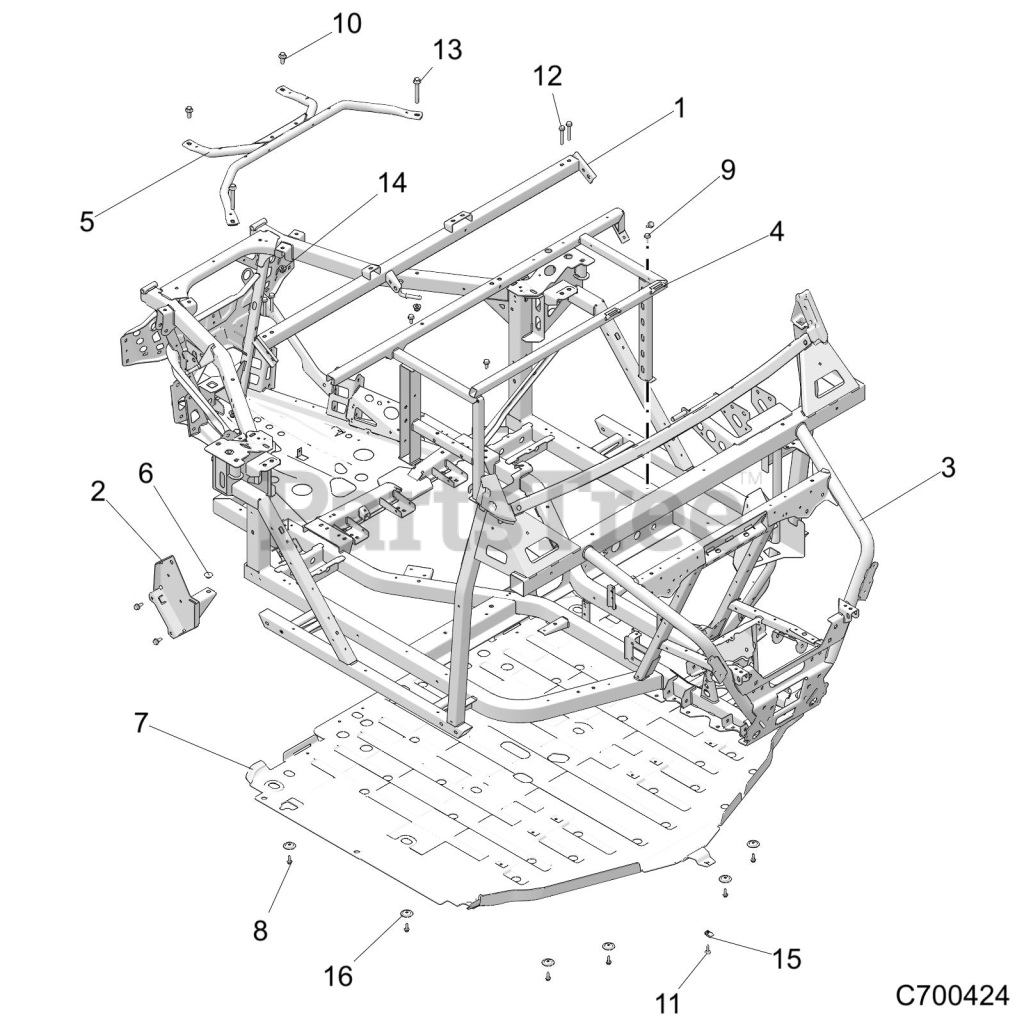

996204 (JSV 3400 SD) - Gravely Atlas JSV Utility Vehicle (SN: 000101 - 023999) Chasis, Main Frame Parts Diagram

Atlas JSV Utility Vehicle

Chasis, Main Frame Parts Diagram

  • Title
1

Gravely 21902015

WELD-CROSSBAR,ECOAT

$

$

Currently unavailable

2

Gravely 21902596

WELD-SEAT SPPRT,MNT,PASS,M.BLK

$

$

Currently unavailable

3

Gravely 21902383

WELD-FRAME,MAIN,M.BLK

$

$

Currently unavailable

4

Gravely 21902016

WELD-SEAT BASE,MAIN,ECOAT

$

$

Currently unavailable

5

Gravely 21902018

WELD-FRAME,BRACE,M.BLK

$

$

Currently unavailable

6

Gravely 21902020

GROMMET-SEAT BASE

$

$

Currently unavailable

7

Gravely 21902022

PLATE-SKID,BLK

$

$

Currently unavailable

8

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

9

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

10

Gravely 21902023

SCR-M10X1.5X25-8.8 HFS ZOD

$

$

Currently unavailable

11

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

12

Gravely 21902024

SCR-HXFL-M8X1.25X55 8.8 ZB

$

$

Currently unavailable

13

Gravely 21902025

SCR-HXFL-M10X1.5X75 8.8 ZY3 NY

$

$

Currently unavailable

14

Gravely 21900470

NUT-M10X1.5 HFN NYLOC ZOD

$

$

Not available

15

Gravely 21902026

NUT-M6-1.0,U-TYPE (2.5-3.8)

$

$

Currently unavailable

16

Gravely 21900485

WASHER SKID PLATE

$

$

Not available
