996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 180101 - 189999) Engine Mounting Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

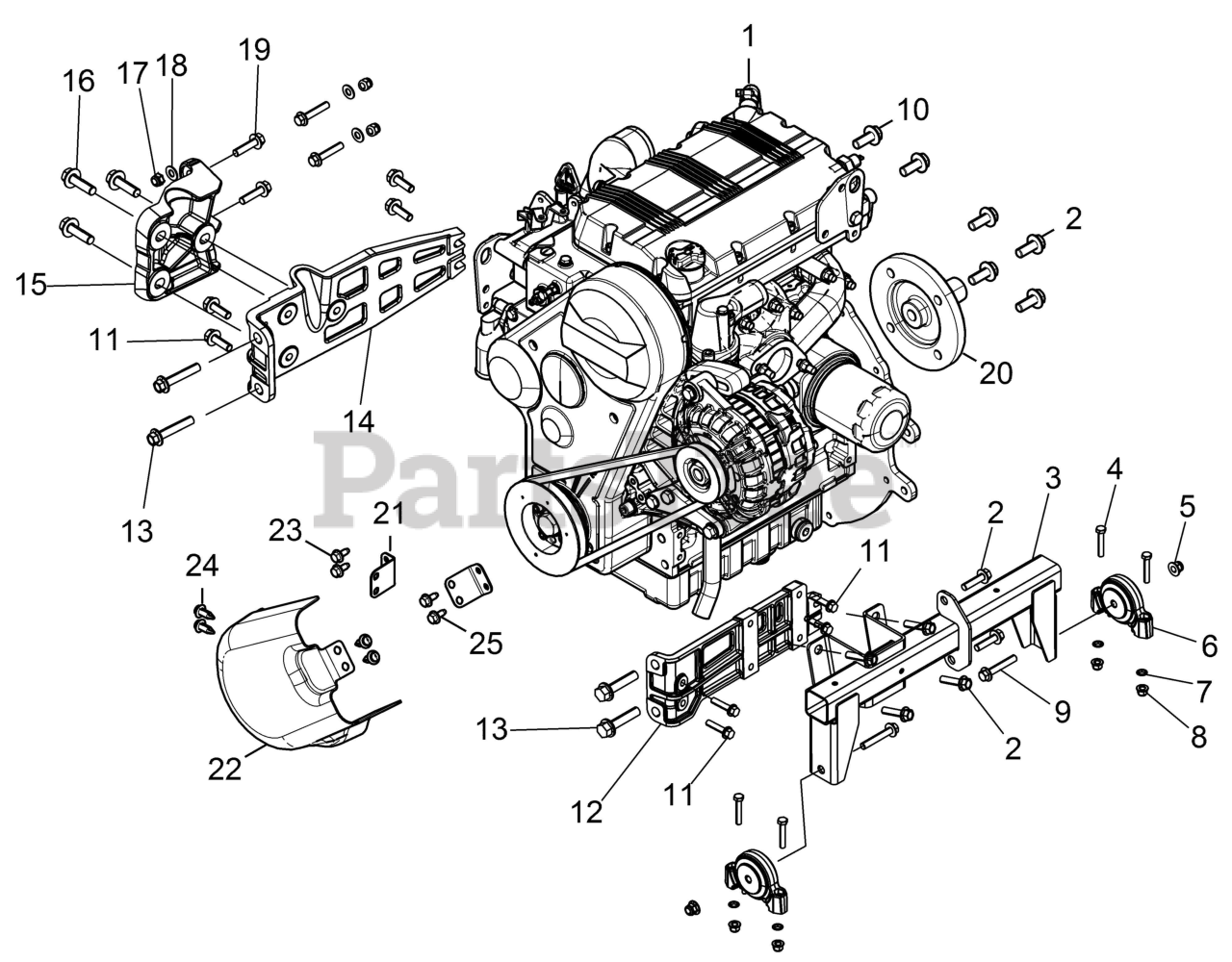

Engine Mounting Parts Diagram

  • Title

1

Gravely 21901822

ASM-ENG KDW1003-5143

$

$

Not available

2

Gravely 21900416

SCR-M10X1.5X25 8.8 HXFL ZOD

$

$

Not available

3

Gravely 21901249

WELD-MOUNT,ENGINE,BLK

$

$

Not available

4

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

5

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

6

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

7

Gravely 21900460

PALNUT

$

$

Not available

8

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

9

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

10

Gravely 21900422

SCR-HXFL-M8X1.25X20 8.8 ZOD P3

$

$

Not available

11

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available

12

Gravely 21901232

COUPLER-L-ENGINE,FRONT

$

$

Not available

13

Gravely 21901241

SCR-HXFL-M12X1.75X30 ZOD

$

$

Not available

14

Gravely 21901714

COUPLER, ENGINE, GEARCASE

$

$

Not available

15

Gravely 21901231

COUPLER-L-ENGINE,GEARCASE

$

$

Not available

16

Gravely 21900450

SCR-HXFL-M10X1.5X35 10.9 ZOD D

$

$

Not available

17

Gravely 21900470

NUT-M10X1.5 HFN NYLOC ZOD

$

$

Not available

18

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

19

Gravely 21900451

SCR-HXFL-M10X1.5X50 10.9 ZOD

$

$

Not available

20

Gravely 21901219

ADAPTER-CLUTCH,DSL

$

$

Not available

21

Gravely 21901715

BRKT,BELT GUARD,MOUNT,BLK

$

$

Not available

22

Gravely 21901716

COVER,DEBRIS

$

$

Not available

23

Gravely 21901717

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

$

$

Not available

24

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

25

Gravely 21900381

SCREW

$

$

Not available
