996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 180101 - 189999) Brake Lines And Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

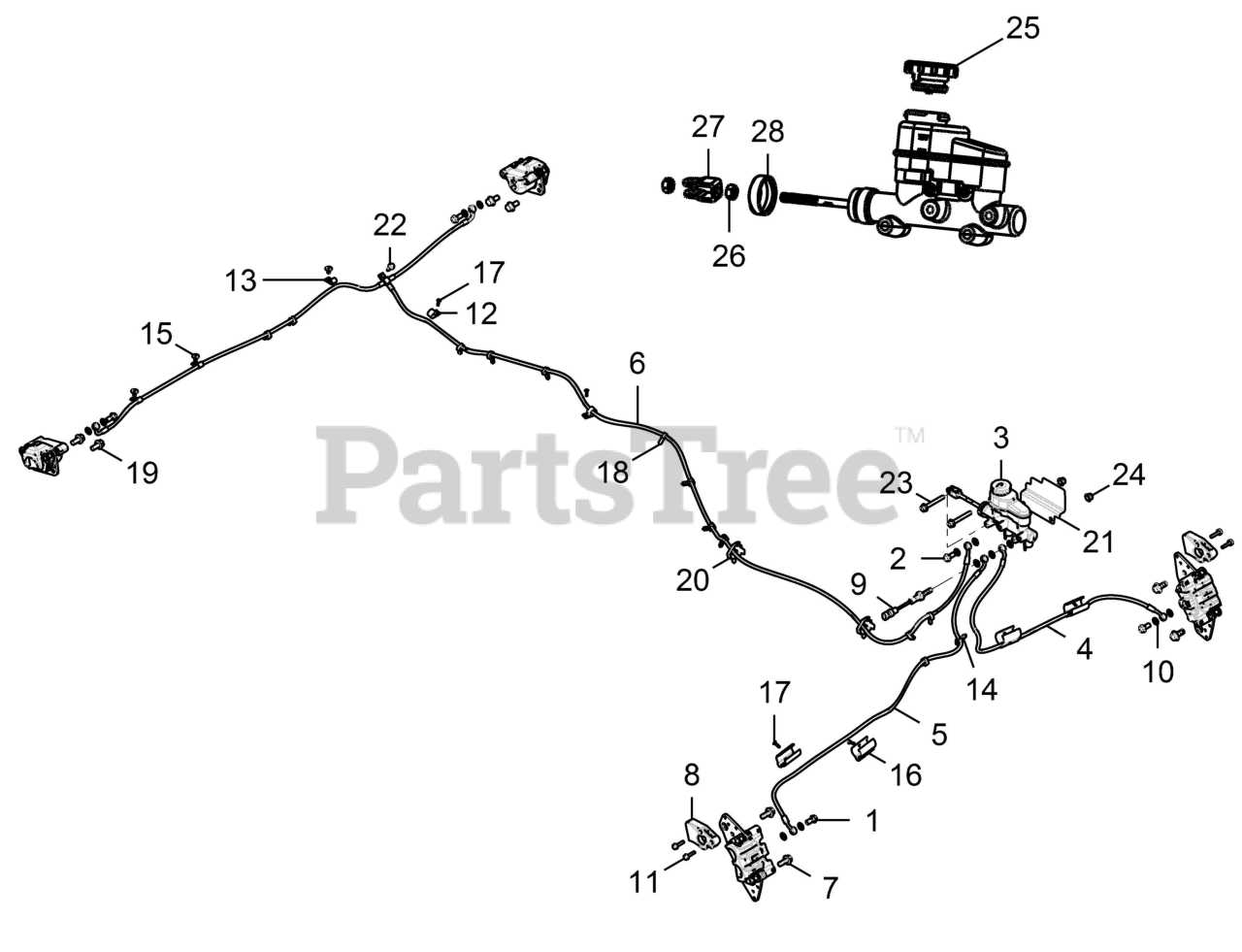

Brake Lines And Master Cylinder Parts Diagram

  • Title
1

Gravely 21900051

BOLT-BANJO,10MMX1.00

$

$

Not available

2

Gravely 21900053

BOLT-BANJO, 10MM X 1.25-6G

$

$

Not available

3

Gravely 21901831

ASM-M/C-T,HBII,STD PUSH ROD

Note: [INCL. 25-28]

$

$

Not available

4

Gravely 21900058

LINE-BRAKE,FRONT,LEFT,BRD

$

$

Not available

5

Gravely 21900059

LINE-BRAKE,FRONT,RIGHT,BRD

$

$

Not available

6

Gravely 21901833

LINE-BRK,3WAY,128",20B,0B,0B

$

$

Not available

7

Gravely 21900406

BOLT-M10X1.25X25,HXFLG,W/PATCH

$

$

Not available

8

Gravely 21901971

SCRAPER, FRONT BRAKE

$

$

Currently unavailable

9

$

$

Not available

10

Gravely 21900224

SEAL-STAT-O-3/8,70EP

$

$

Not available

11

Gravely 21901982

SCR-HXFL,M6X1.0X35 W/PATCHLOCK

$

$

Currently unavailable

12

Gravely 21900334

CLAMP, CABLE

$

$

Not available

13

Gravely 21900337

CLAMP,HOSE

$

$

Not available

14

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15

Gravely 21900497

RIVET(50) *

$

$

Not available

16

Gravely 21900265

RETAINER-BRAKE LINE,1"

$

$

Not available

17

Gravely 21900495

POP RIVET(50)

$

$

Not available

$

$

Not available

19

Gravely 21900397

BOLT-M10X1.25X20,HXFLG-OLV D

$

$

Not available

20

Gravely 21900509

CLIP-ROUTING

$

$

Not available

21

Gravely 21900186

SHIELD-MASTER CYL

$

$

Not available

22

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

23

Gravely 21900436

SCR-HXFL-M8X1.25X60 8.8 ZOD

$

$

Not available

24

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

25

Gravely 21901837

RESERVOIR CAP ASM.

$

$

Not available

26

Gravely 21901835

NUT, HEX

$

$

Not available

27

$

$

Not available

28

DUST BOOT

$

$

Not available
