996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 170101 - 179999) Cab Frame Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

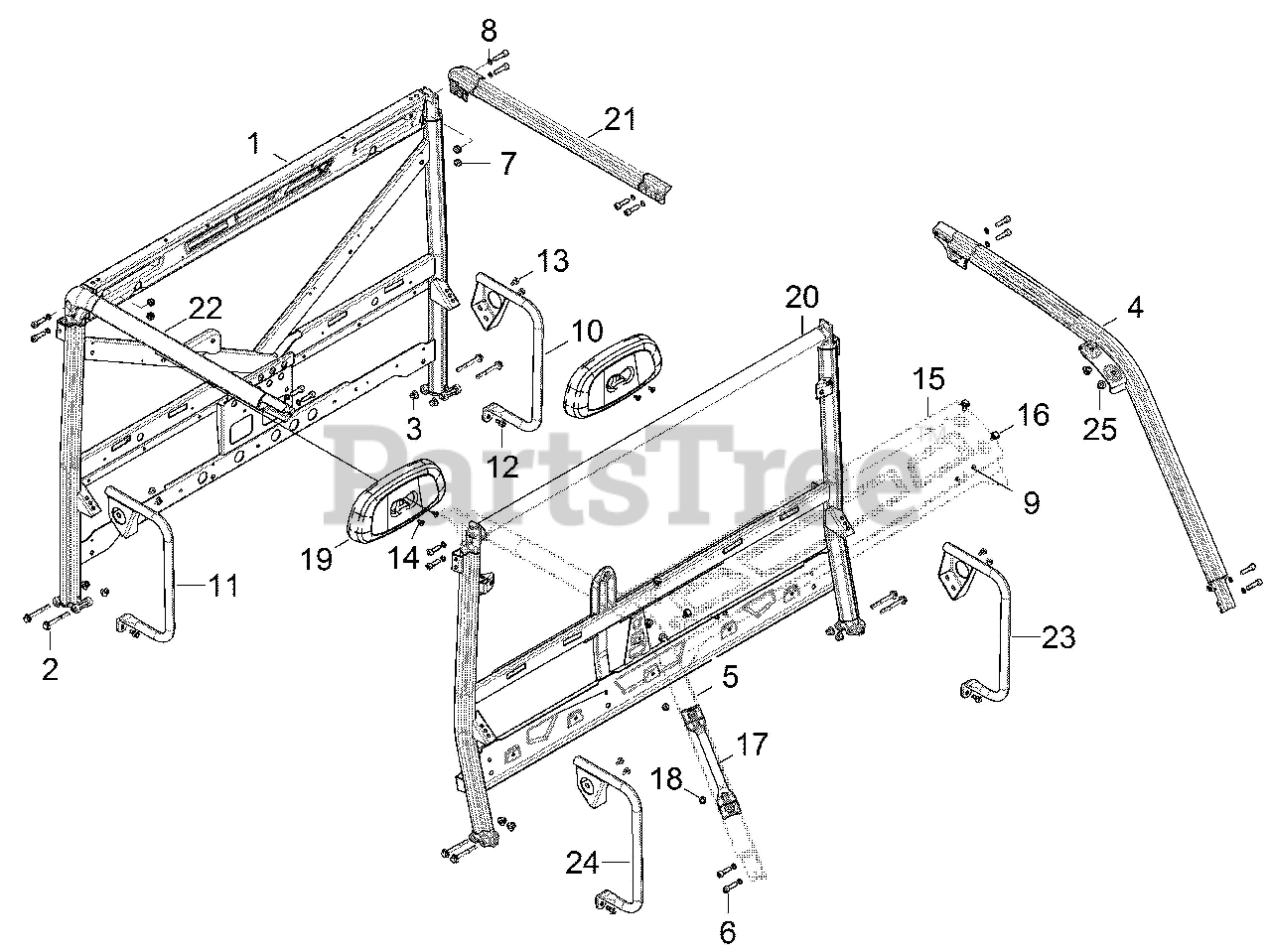

Cab Frame Parts Diagram

  • Title

1

Gravely 21901463

WELD-CAB FRAME,REAR,BLK

$

$

Not available

2

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

3

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

4

Gravely 21901815

FRONT CAB FRAME, FRONT LH

$

$

Not available

5

Gravely 21901816

FRONT CAB FRAME, FRONT RH

$

$

Not available

6

Gravely 21900453

SCR-SH-M10X1.5X35 8.8 ZPB

$

$

Not available

7

Gravely 21900462

NUT-NYLOC M10X1.5,REF

$

$

Not available

8

Gravely 21900482

WASHER

$

$

Not available

9

Gravely 21901814

CLIP-PLASTIC,DART

$

$

Not available

10

Gravely 21901810

HIP BOLSTER, LH

$

$

Not available

11

Gravely 21901813

HIP BOLSTER, RH

$

$

Not available

12

Gravely 21900422

SCR-HXFL-M8X1.25X20 8.8 ZOD P3

$

$

Not available

13

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

14

Gravely 21900496

RIVET(50)

$

$

Not available

15

Gravely 21901811

WINDSHIELD MOUNT PLATE

$

$

Not available

16

Gravely 21901812

SCREW-HXFL-M10X1.25X20

$

$

Not available

17

Gravely 21900576

HANDLE-GRAB,ROPS,BLK

$

$

Not available

18

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

19

Gravely 21900915

HEADREST-GRAVELY,GRAY

$

$

Not available

20

Gravely 21901262

WELD-CAB FRAME,CENTER 6 PASS

$

$

Not available

21

Gravely 21900539

WELD-CAB FRAME,REAR,LH,M.BLK

$

$

Not available

22

Gravely 21900540

WELD-CAB FRAME,REAR,RH,M.BLK

$

$

Not available

23

Gravely 21901817

HIP BOLSTER FRONT: 219

$

$

Not available

24

Gravely 21901818

HIP BOLSTER FRONT: 219

$

$

Not available

25

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
