996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 160100 - 170100) Seat And Base Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

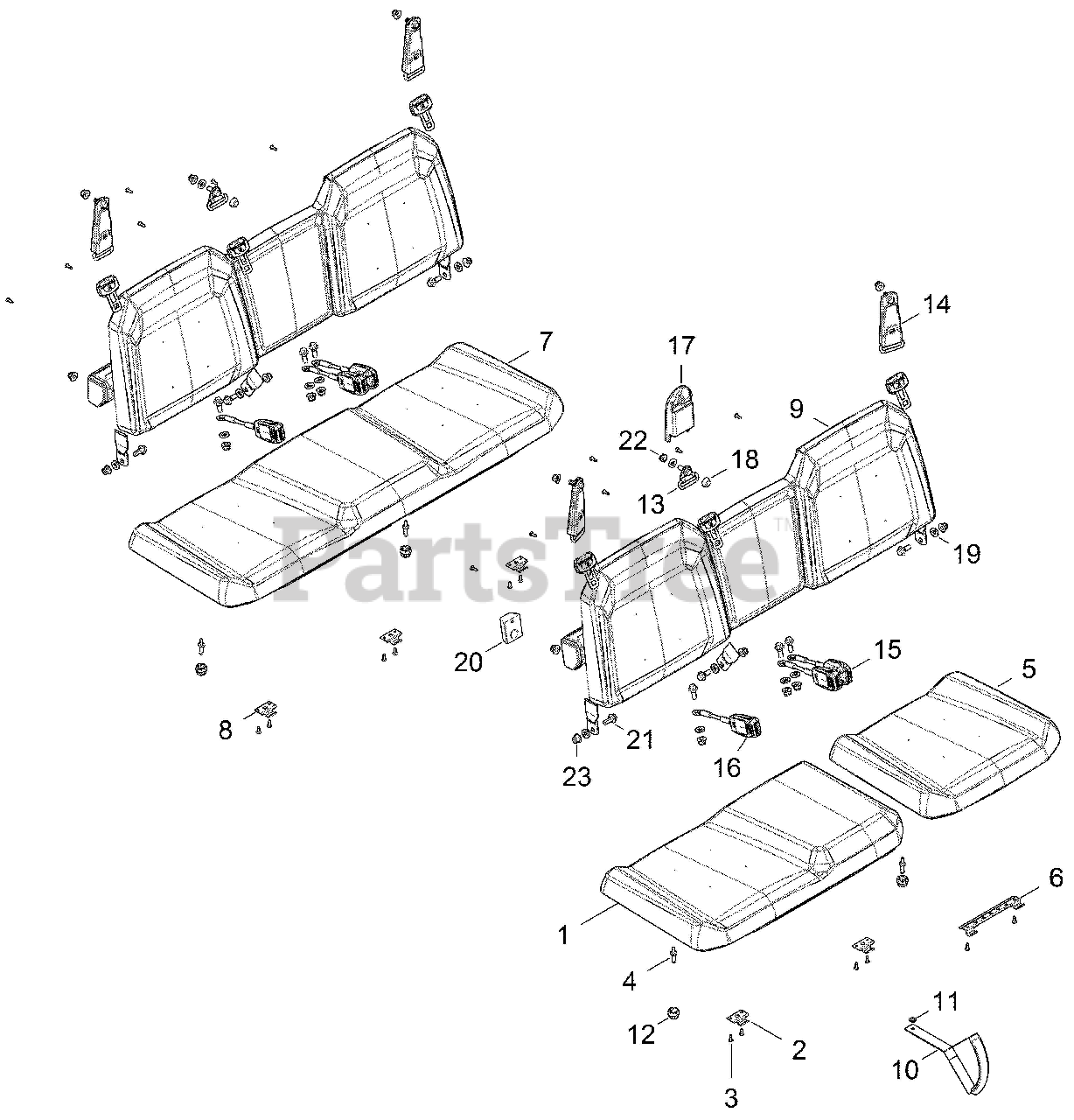

Seat And Base Parts Diagram

  • Title

1.

Gravely 21900890

ASM-SEAT,BTM,60,GRAVELY GRAY

Note: [INCL. QTY 2 OF 2, QTY 4 OF3, QTY 1 OF 4]

$

$

Not available

2.

Gravely 21900853

BRKT-SEAT HINGE

$

$

Not available

3.

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

4.

Gravely 21900306

PIN-SEAT LATCH

$

$

Not available

5.

Gravely 21901699

ASM., SEAT BOTTOM, 40, BLACK

Note: [INCL. QTY 2 OF 3, QTY 1 OF 4,5]

$

$

Not available

6.

Gravely 21900854

BRKT-SEAT HINGE,DOUBLE

$

$

Not available

7.

Gravely 21901700

ASM.,SEAT,3 PASSENGER,BTM,BLK

Note: [INCL. QTY 6 OF 3, QTY 2 OF 4,8]

$

$

Not available

8.

Gravely 21900197

BRKT-SEAT HINGE

$

$

Not available

9.

Gravely 21901701

ASM., SEAT, BACK, BLACK

$

$

Not available

10.

Gravely 21901345

STRAP, SEAT, CENTER

$

$

Not available

11.

Gravely 21901484

WASHER, NYLON

$

$

Not available

12.

Gravely 21900264

GROMMET

$

$

Not available

13.

Gravely 21900088

ASM-SEAT BELT,3PT,CENTER

$

$

Not available

14.

Gravely 21900089

ASM-SEAT BELT,3PT

$

$

Not available

15.

Gravely 21900090

BUCKLE-SEATBELT,9.6,DRIVER

$

$

Not available

16.

Gravely 21900091

BUCKLE-SEATBELT,9.6,PASSENGER

$

$

Not available

17.

Gravely 21900248

COVER-SEAT BELT MOUNT

$

$

Not available

18.

Gravely 21900276

CAP-BOLT HEAD

$

$

Not available

19.

Gravely 21900301

WASHER-SEATBELT,RUBBER

$

$

Not available

20.

Gravely 21900305

PAD-REAR,SEAT BASE

$

$

Not available

21.

Gravely 21900449

SCR-HXFLSH-M12X1.75-M14X9 ZOD

$

$

Not available

22.

Gravely 21900455

NUT-NYLOK,M12X1.5,0600110

$

$

Not available

23.

Gravely 21900471

NUT-HXFL M12X1.75 NYLOC ZOD

$

$

Not available
