996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 160100 - 170100) Pedal And Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

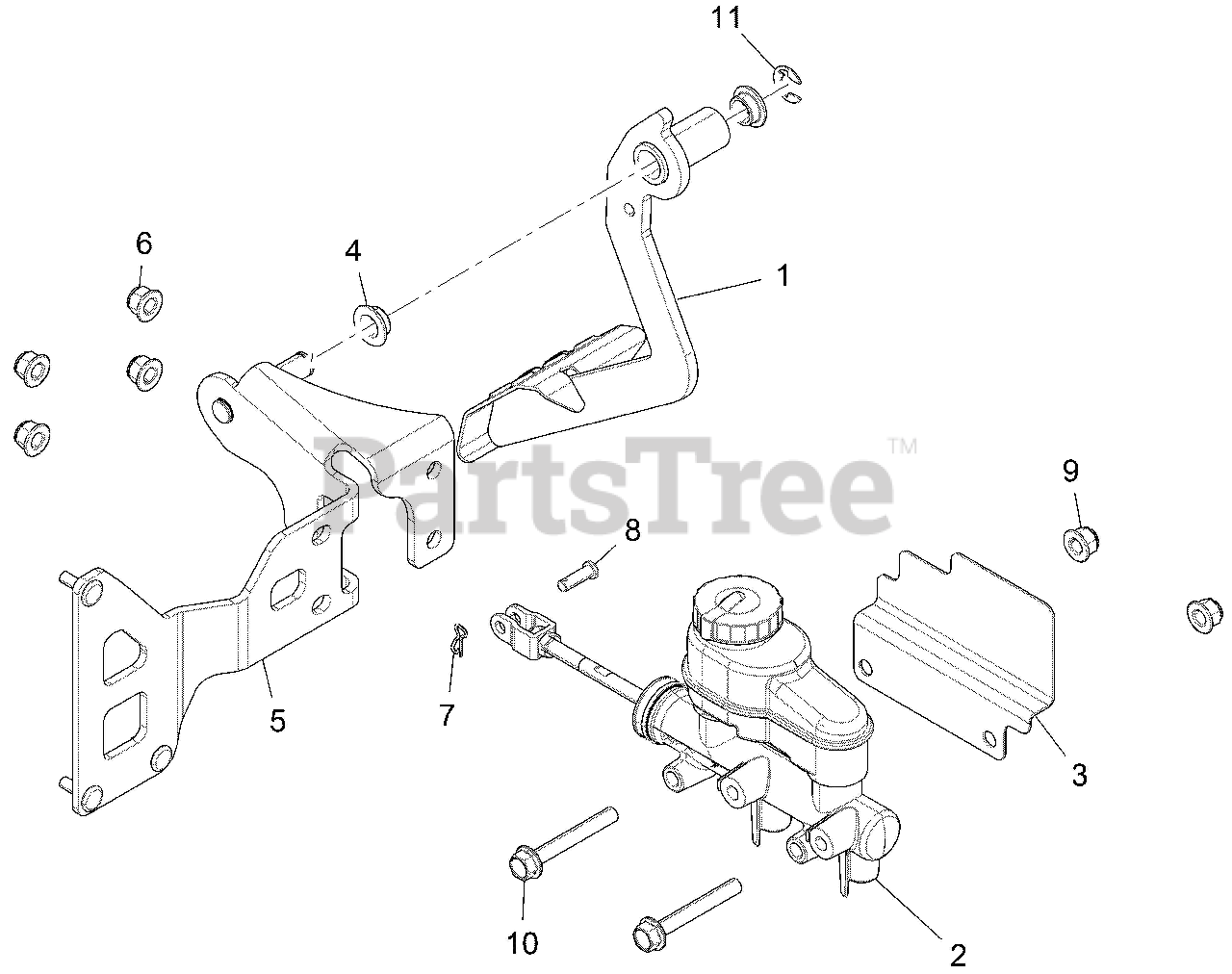

Pedal And Master Cylinder Parts Diagram

  • Title

1.

Gravely 21901487

PEDAL, BRAKE, MATTE BLACK

$

$

Not available

2.

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

3.

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

4.

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

5.

Gravely 21901425

MOUNT, PEDAL, BLACK

$

$

Not available

6.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7.

Gravely 21900498

PIN-CLIP,14MM

$

$

Not available

8.

Gravely 21900502

PIN-CLEVIS, 1/4 X 3/4 -Y

$

$

Not available

9.

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

10.

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

11.

Gravely 21900518

E RING

$

$

Not available
