996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 150101 - 159999) Prop Shaft Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

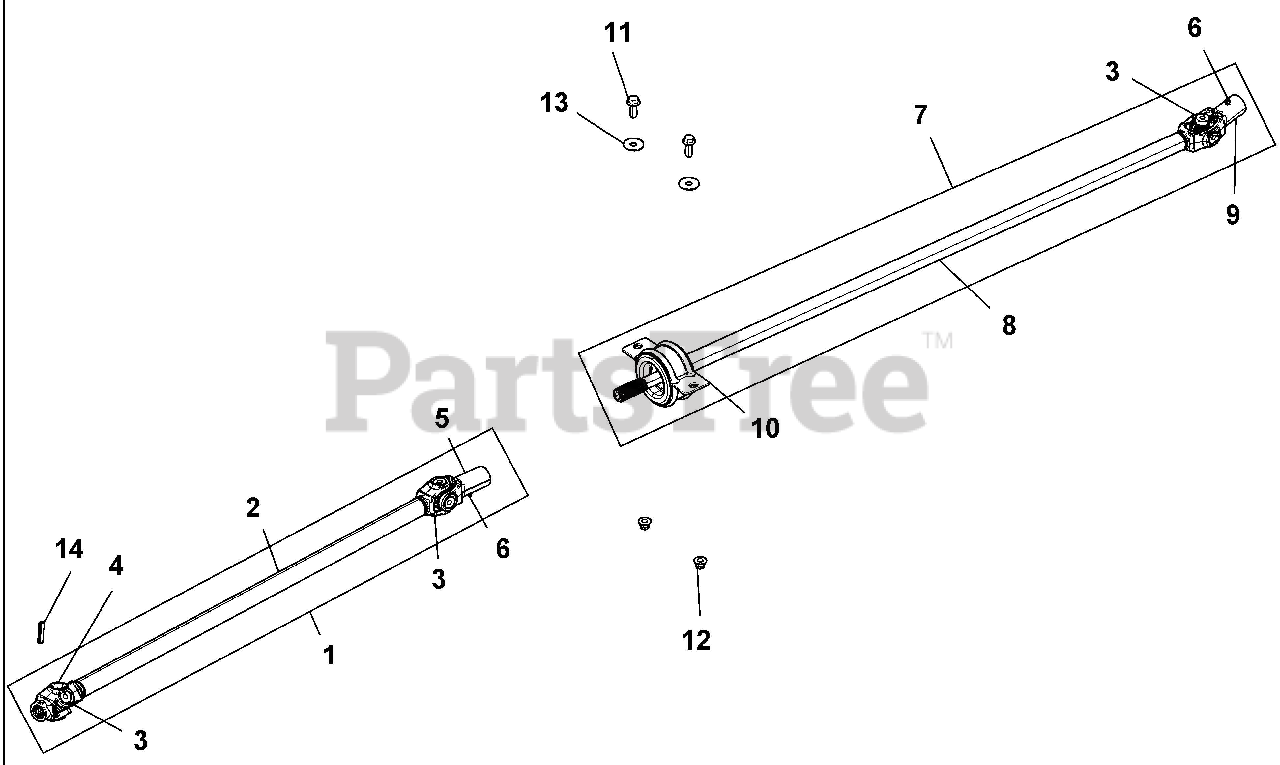

Prop Shaft Parts Diagram

  • Title
1

Gravely 21900041

ASM-PROPSHAFT,FRONT

$

$

Not available

2

Gravely 21900043

WELD-PROPSHAFT,FRONT

$

$

Not available

3

Gravely 21900120

U-JOINT-1000 SERIES

$

$

Not available

4

Gravely 21900122

YOKE-PIN

$

$

Not available

5

Gravely 21901410

YOKE, SLIP, INDEXED

$

$

Not available

6

Gravely 21900329

FITTING, LUBRICATION

$

$

Not available

7

Gravely 21900042

ASM-PROPSHAFT,REAR

$

$

Not available

8

Gravely 21900044

WELD-PROPSHAFT,REAR

$

$

Not available

9

Gravely 21900121

YOKE-SLIP

$

$

Not available

10

Gravely 21900132

ASM-BEARING,FLEX

$

$

Not available

11

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

12

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13

Gravely 21900480

WASHER, FLAT

$

$

Not available

14

Gravely 21900504

PIN,SPRING(10)

$

$

Not available
