996203 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Diesel (SN: 150101 - 159999) Brake Pedal And Master Cylinder Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Diesel

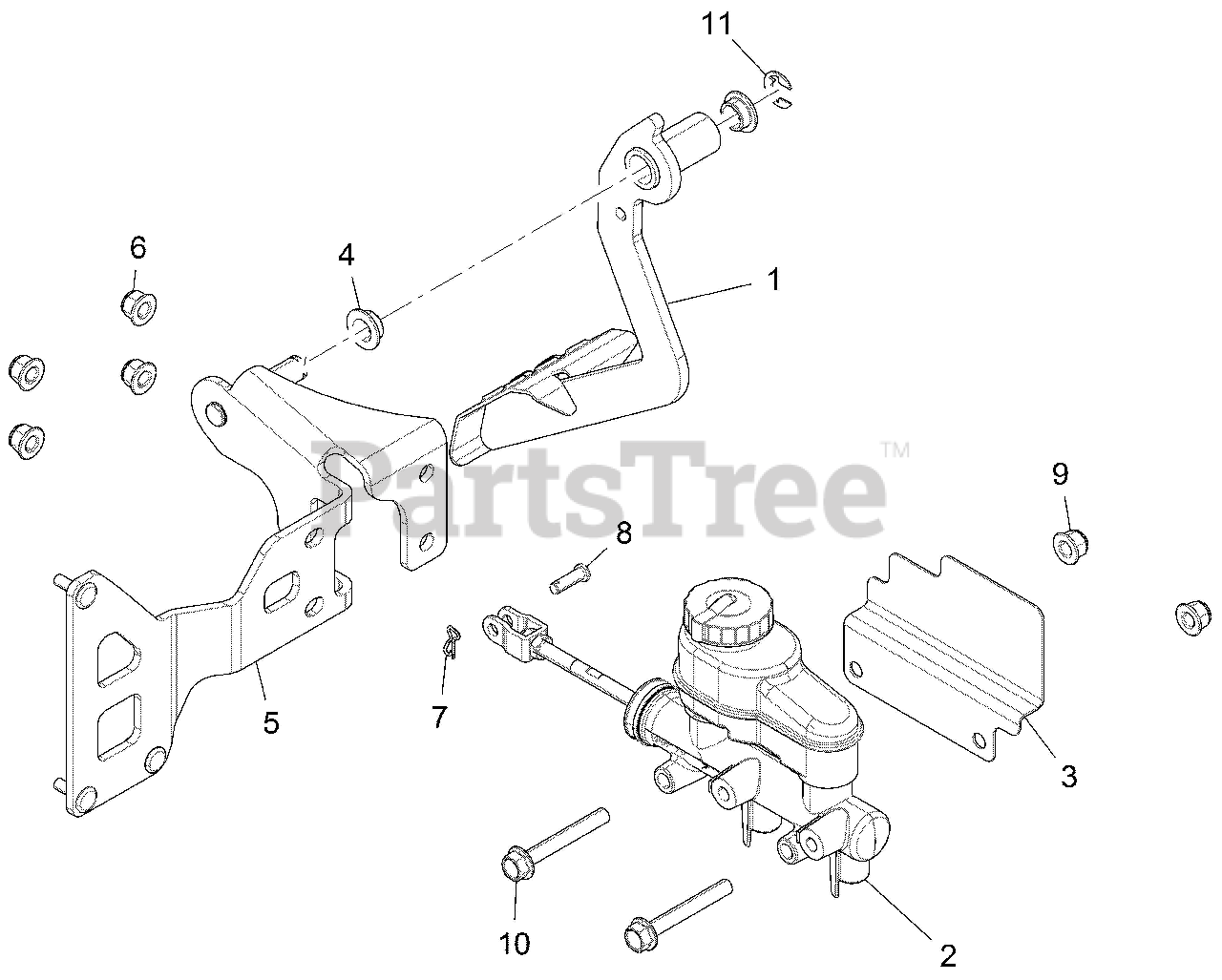

Brake Pedal And Master Cylinder Parts Diagram

  • Title
1

Gravely 21901487

PEDAL, BRAKE, MATTE BLACK

$

$

Not available

2

Gravely N/A

ASM., MASTER CYLINDER

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Currently unavailable

3

Gravely 21900186

SHIELD-MASTER CYL

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

4

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

5

Gravely 21901425

MOUNT, PEDAL, BLACK

$

$

Not available

6

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7

Gravely 21900498

PIN-CLIP,14MM

$

$

Not available

8

Gravely 21900502

PIN-CLEVIS, 1/4 X 3/4 -Y

$

$

Not available

9

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

10

Gravely 21901488

SCREW

Note: [SEE BRAKE LINES AND MASTER CYL. PAGE]

$

$

Not available

11

$

$

Not available
