996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 180101 - 189999) Pedal Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

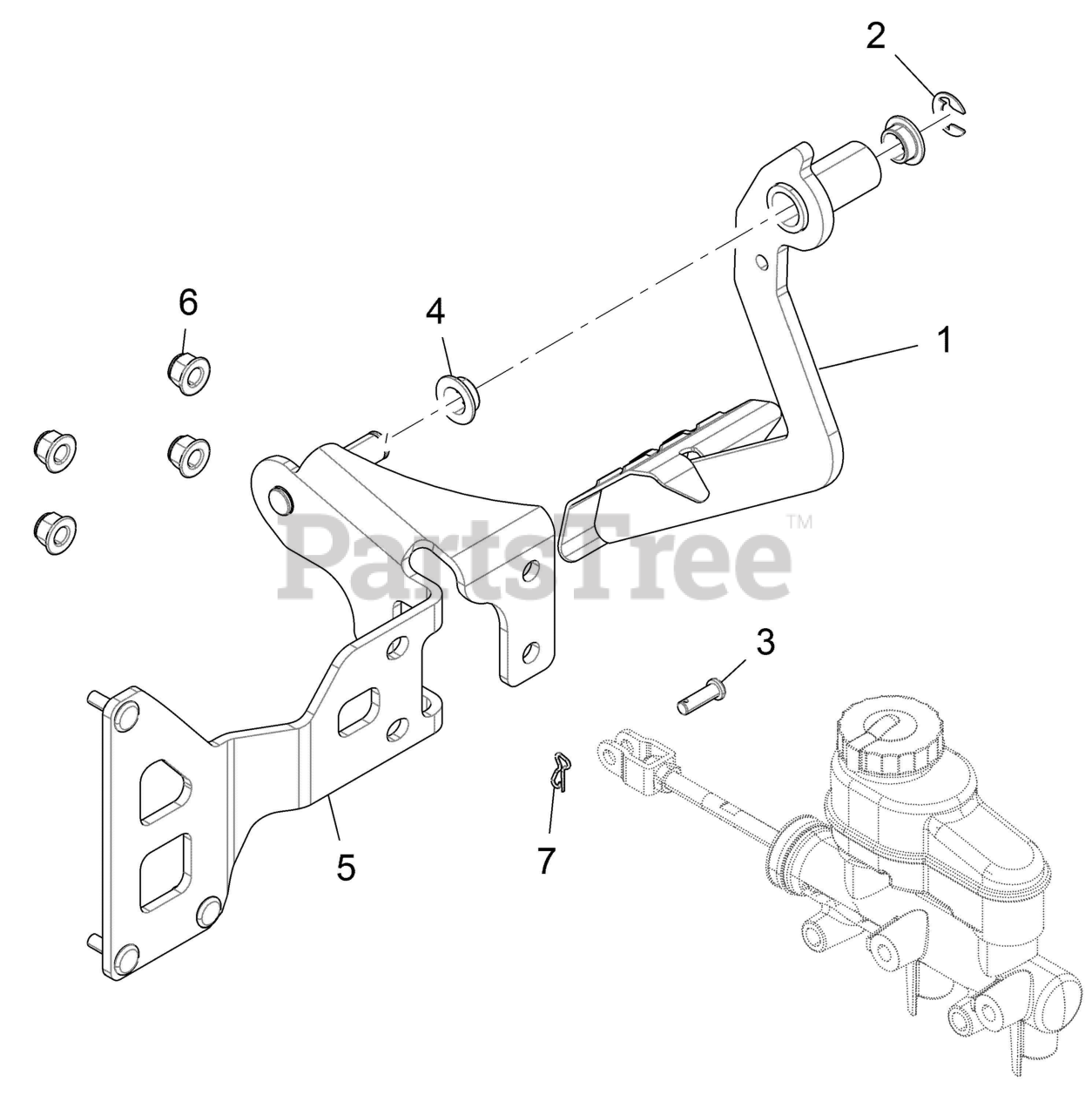

Pedal Parts Diagram

  • Title
1

Gravely 21900522

WELD-BRAKE PEDAL,MATTE'BLK

$

$

Not available

2

$

$

Not available

3

Gravely 21900502

PIN-CLEVIS, 1/4 X 3/4 -Y

$

$

Not available

4

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

5

Gravely 21901425

MOUNT, PEDAL, BLACK

$

$

Not available

6

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7

Gravely 21900498

PIN-CLIP,14MM

$

$

Not available
