996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 180101 - 189999) Fuel Tank Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

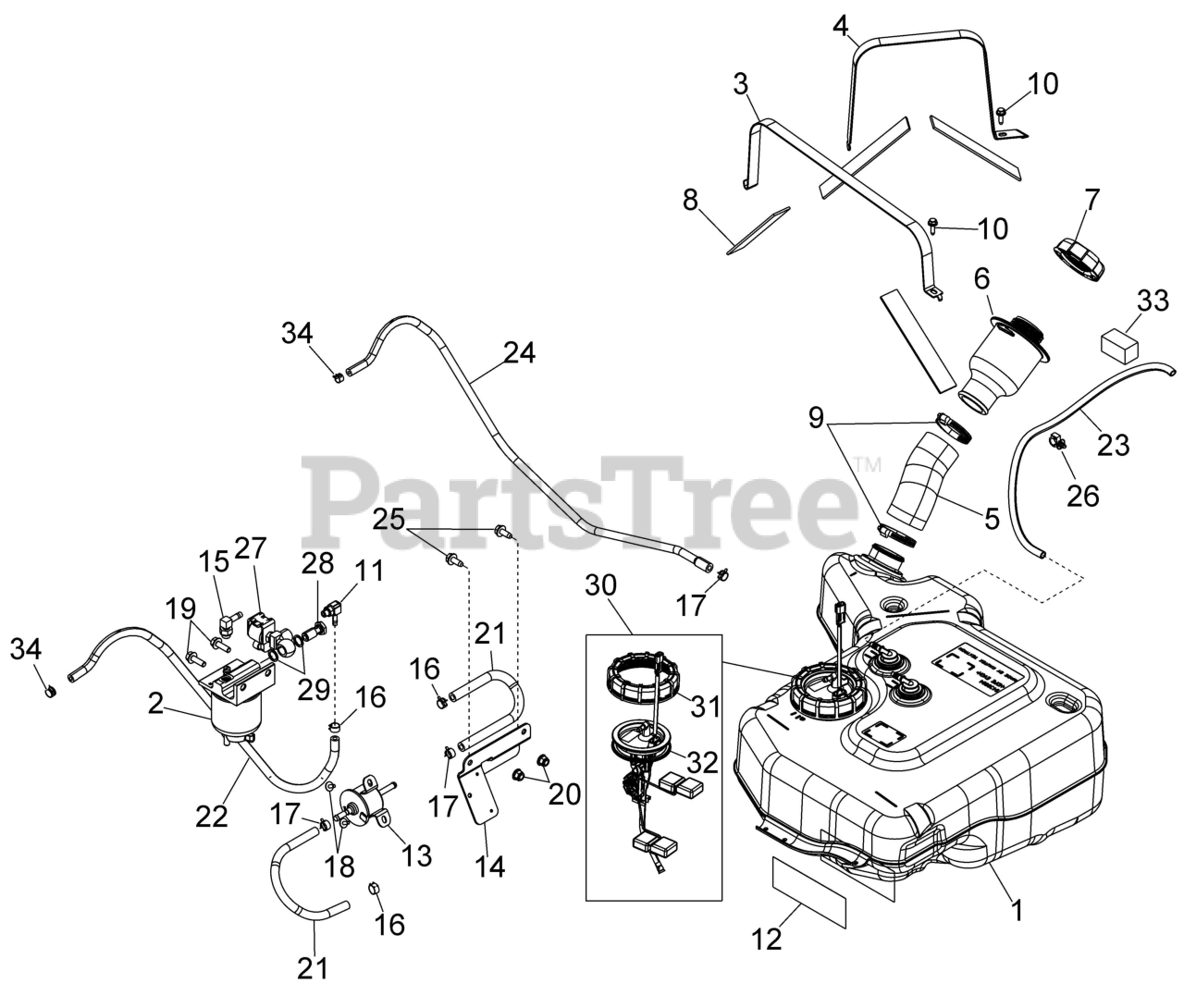

Fuel Tank Parts Diagram

  • Title
1

Gravely 21900081

ASM-FUEL TANK,DIESEL

$

$

Not available

2

Gravely 21901378

ASM., FILTER, FUEL

$

$

Not available

3

Gravely 21900202

BRKT-TANK,STRAP,INSIDE,GALV

$

$

Not available

4

Gravely 21900203

BRKT-TANK,STRAP,OUTSIDE,GALV

$

$

Not available

5

Gravely 21900241

HOSE-FUEL FILL

$

$

Not available

6

Gravely 21900082

ASM-FUEL INLET

$

$

Not available

7

Gravely 21900258

CAP-TANK,DIESEL

$

$

Not available

8

Gravely 21900293

PAD, BATTERY

$

$

Not available

9

Gravely 21900327

CLAMP,BAND,NARROW (10)

$

$

Not available

10

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

11

Gravely 21901238

FITTING-M10X1.0X6.35-90

$

$

Not available

12

Gravely 21900296

FOIL-FENDER JOINT,RH

$

$

Not available

13

Gravely 21901379

ASM., FUEL PUMP

$

$

Not available

14

Gravely 21901222

BRKT-FUEL SYSTEM MOUNT

$

$

Not available

15

Gravely 21901237

FITTING-SAEJ1926-1/2-20X.25-90

$

$

Not available

16

Gravely 21900323

CLAMP,HOSE(10)

$

$

Not available

17

Gravely 21900346

CLAMP-HOSE, 17/32, GREEN

$

$

Not available

18

Gravely 21900369

SCREW(10)

$

$

Not available

19

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available

20

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

21

Gravely 21901895

HOSE, FUEL-25 CM

Note: 25CM

$

$

Not available

22

Gravely 21901709

HOSE, FUEL

Note: 65CM

$

$

Not available

23

Gravely 21901894

FUEL LINE-50 CM

$

$

Not available

24

Gravely 21901227

HOSE-FUEL,3/16 ID,5/16 FLARE

$

$

Not available

25

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

26

Gravely 21900510

CLIP,ROUTING,.472 B.D.,HINGED

$

$

Not available

27

Gravely 21901380

SOLENOID, FUEL

$

$

Not available

28

Gravely 21901381

BOLT, BANJO

$

$

Not available

29

Gravely 21901382

WASHER, COPPER

$

$

Not available

30

Gravely 21900931

KIT-FUEL SENDER,DIESEL

$

$

Not available

31

Gravely 21901351

NUT, JAM

$

$

Not available

32

$

$

Not available

33

Gravely 21900297

FILTER-VENT LINE

$

$

Not available

34

Gravely 21900325

CLAMP-HOSE

$

$

Not available
