996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 180101 - 189999) Clutch Cover Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

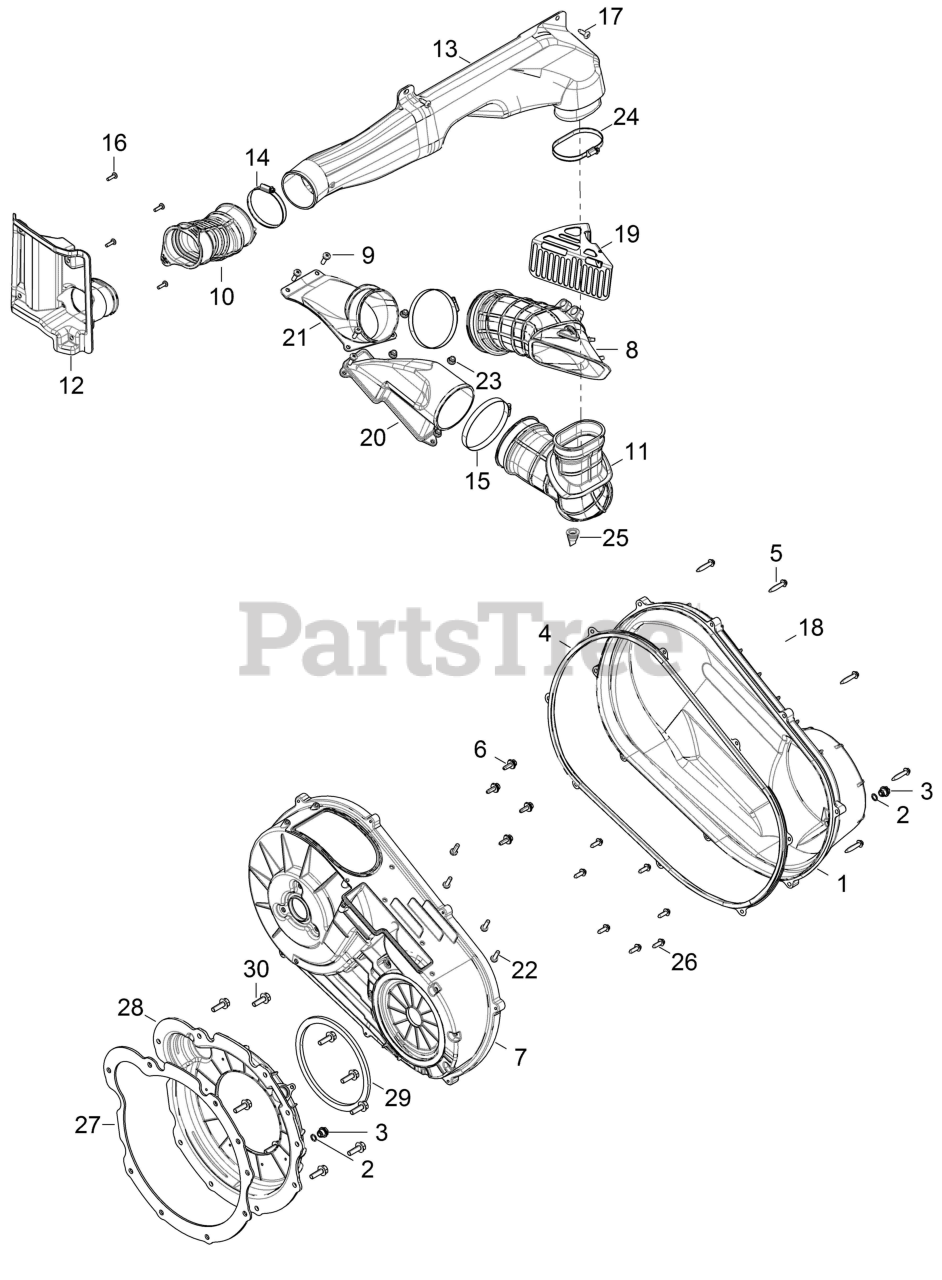

Clutch Cover Parts Diagram

  • Title
1

Gravely 21900938

ASM-COVER,CLUTCH,OUTER DSL

Note: W/REF 2,3

$

$

Not available

2

Gravely 21900208

O RING-.364X.504X.07

$

$

Not available

3

Gravely 21900253

PLUG-DRAIN

$

$

Not available

4

Gravely 21900278

SEAL-OUTER CLUTCH COVER

$

$

Not available

5

Gravely 21900439

SCR-HXFL-M6X35 ZOD HILO

$

$

Not available

6

Gravely 21900433

ASM-BOLT/WASHER,20 MM

$

$

Not available

7

Gravely 21900939

ASM-COVER,CLUTCH,INNER DSL

Note: W/REF 9,20-22

$

$

Not available

8

Gravely 21901397

HOSE, CLUTCH, AIR OUTLET

$

$

Not available

9

Gravely 21900428

SCR-#14X3/4 HI/LO-PH-PN TRX-M

$

$

Not available

10

Gravely 21900245

HOSE-INTAKE,CLUTCH

$

$

Not available

11

Gravely 21900242

HOSE-CLUTCH,AIR INLET

Note: IF BUILT BEFORE 8/1/16

$

$

Not available

11

Gravely 21901869

HOSE-CLUTCH,AIR IN,TRAP,900/1K

Note: IF BUILT AFTER 8/2/16

$

$

Not available

12

Gravely 21900275

INTAKE-FENDER-REAR

$

$

Not available

13

Gravely 21900277

DUCT-INTAKE,CLUTCH

$

$

Not available

14

Gravely 21900338

CLAMP,BAND,NARROW (10)

$

$

Not available

15

Gravely 21900349

CLAMP-WORM DRIVE,3.69 DIA

$

$

Not available

16

Gravely 21900389

SCR-10X5/8-HI/LO,PN-T25,TRX-M

$

$

Not available

17

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

18

Gravely 21901396

DECAL, BELT, CAUTION/CHECK

$

$

Not available

19

Gravely 21900198

BRKT-SCREEN,BELT

$

$

Not available

20

Gravely 21901229

DUCT-CLUTCH,AIR INLET

$

$

Not available

21

Gravely 21901319

DUCT, AIR OUTLET

$

$

Not available

22

Gravely 21900395

SCR-M6X1.0X20MM,TX,PH,8.8-B

$

$

Not available

23

Gravely 21900472

NUT-HXFL-M6X1.0 8 ZB3 NYL

$

$

Not available

24

Gravely 21900343

CLAMP-BAND,NARROW 70-90MM

$

$

Not available

25

Gravely 21901867

PLUG-DRAIN

$

$

Not available

26

$

$

Not available

27

Gravely 21901233

SEAL-FLYWHEEL COVER

$

$

Not available

28

Gravely 21900940

ASM-COVER-FLYWHEEL

Note: W/REF 2,3

$

$

Not available

29

Gravely 21901234

SEAL-CLUTCH COVER,INNER

$

$

Not available

30

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available
