996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 170101 - 179999) Dash Controls Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

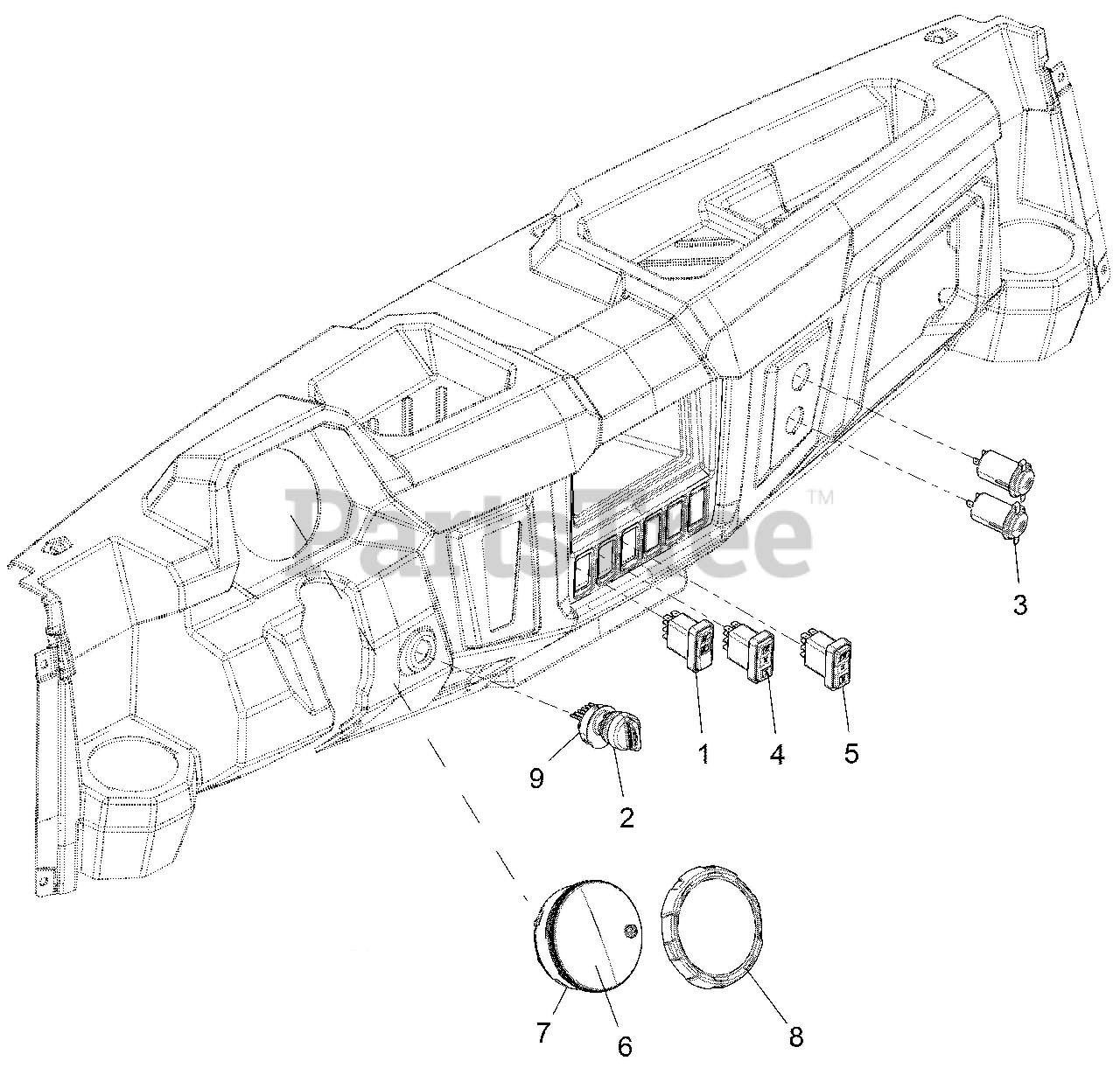

Dash Controls Parts Diagram

  • Title
1.

Gravely 21900138

SWITCH-HEADLIGHT

$

$

Not available

2.

Gravely 21900898

SWITCH,KEY,ARIENS

$

$

Not available

3.

Gravely 21901740

RECEPTACLE, POD MOUNT, 12 VOLT

$

$

Not available

4.

Gravely 21900142

SWITCH-AWD

$

$

Not available

5.

Gravely 21901217

SWITCH-BOX LIFT,MOMENTARY

$

$

Not available

6.

Gravely 21901858

ASM-CLUSTER,CPIA3,OSPS,MD

Note: [INCL. 7]

$

$

Not available

7.

Gravely 21901224

MOUNT-RUBBER,INSTR. CLUSTER

$

$

Not available

8.

Gravely 21900260

BEZEL-INSTRUMENT CLUSTER

$

$

Not available

9.

Gravely 21901352

SPACER, KEY, SWITCH

$

$

Not available

10

Gravely 21901433

KEY, SPARE

Note: NOT SHOWN

$

$

Not available
