996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 170101 - 179999) Air Intake Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

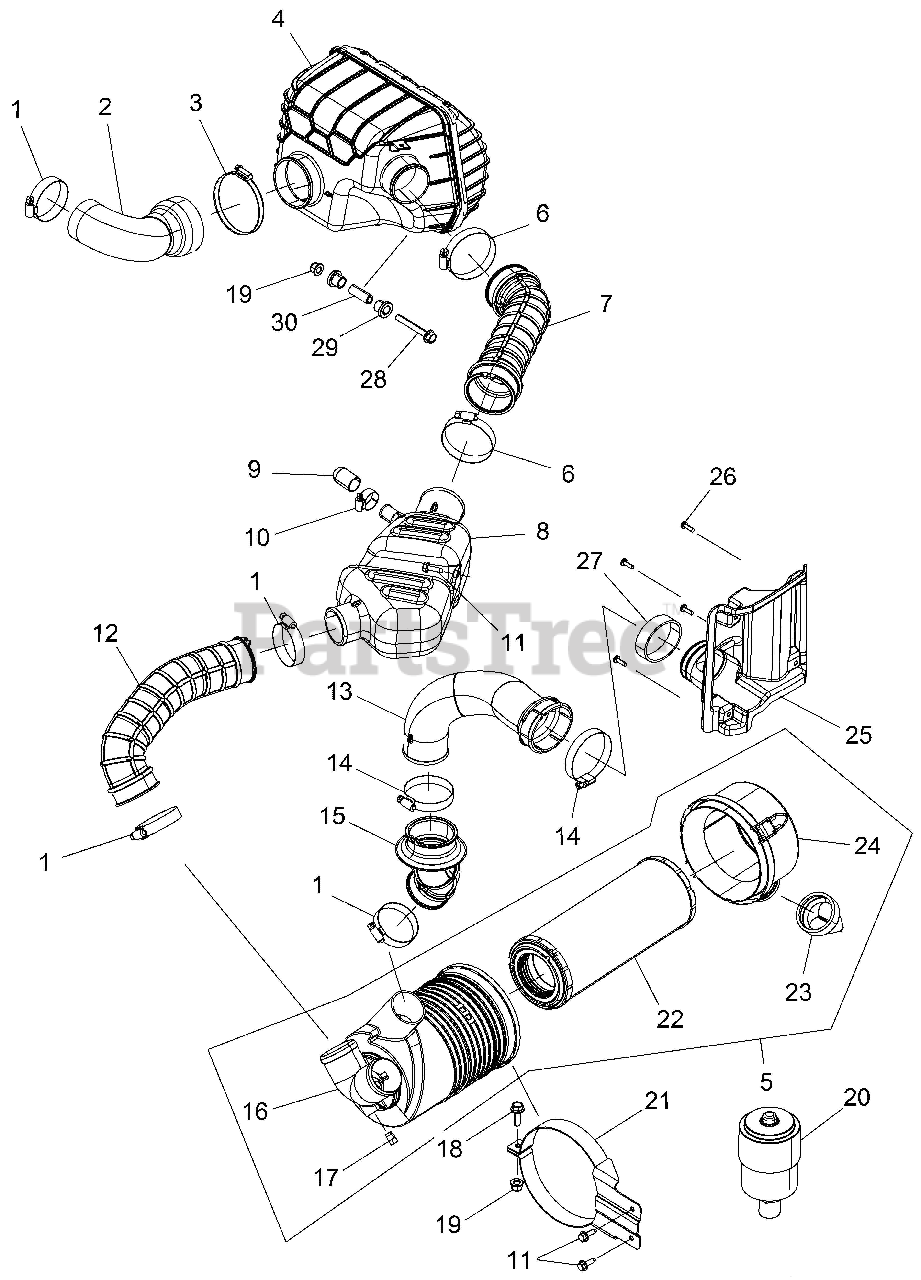

Air Intake Parts Diagram

  • Title
1

Gravely 21900332

CLAMP, HOSE, S.S.(10)

$

$

Not available

2

Gravely 21901226

HOSE-INTAKE,ENG,DSL

$

$

Not available

3

Gravely 21900343

CLAMP-BAND,NARROW 70-90MM

$

$

Not available

4

Gravely 21900836

WELD-INTAKE,PLENUM

$

$

Not available

5

Gravely 21901404

ASM., AIR INTAKE

Note: [INCL. 16,17,22-24]

$

$

Not available

6

Gravely 21900331

CLAMP-HOSE, 2.75"-SS

$

$

Not available

7

Gravely 21900235

HOSE-INTAKE,ENG

$

$

Not available

8

Gravely 21900913

DUCT-INTAKE,ENG

$

$

Not available

9

Gravely 21900864

CAP-RUBBER,.75 ID X 1.00

$

$

Not available

10

Gravely 21900336

CLAMP,HOSE

$

$

Not available

11

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

12

Gravely 21900903

HOSE-AIR BOX,SPLY

$

$

Not available

13

Gravely 21900272

DUCT-INTAKE,AIR

$

$

Not available

14

Gravely 21900330

CLAMP, HOSE

$

$

Not available

15

Gravely 21900902

HOSE-INTAKE,AIR BOX,SPLY

$

$

Not available

16

Gravely 21901290

ASM., AIRBOX, MAIN

$

$

Not available

17

Gravely 21900270

PLUG-AIRBOX

$

$

Not available

18

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available

19

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

20

Gravely 21901346

KIT, FILTER, INDICATOR

Note: OPT

$

$

Not available

21

Gravely 21900877

WELD-AIRBOX,MOUNT

$

$

Not available

22

$

$

Not available

23

Gravely 21900238

VALVE-AIRBOX

$

$

Not available

24

Gravely 21900031

ASM-LID,AIRBOX

$

$

Not available

25

Gravely 21900559

INTAKE-FENDER,REAR,BLK

$

$

Not available

26

Gravely 21900389

SCR-10X5/8-HI/LO,PN-T25,TRX-M

$

$

Not available

27

Gravely 21900240

HOSE-INTAKE,BOOT

$

$

Not available

28

Gravely 21900436

SCR-HXFL-M8X1.25X60 8.8 ZOD

$

$

Not available

29

Gravely 21900244

BUSHING-MOUNT

$

$

Not available

30

Gravely 21900180

SHAFT-COMPRESSION LMTR,34.4MM

$

$

Not available
