996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Throttle Pedal And Cable Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

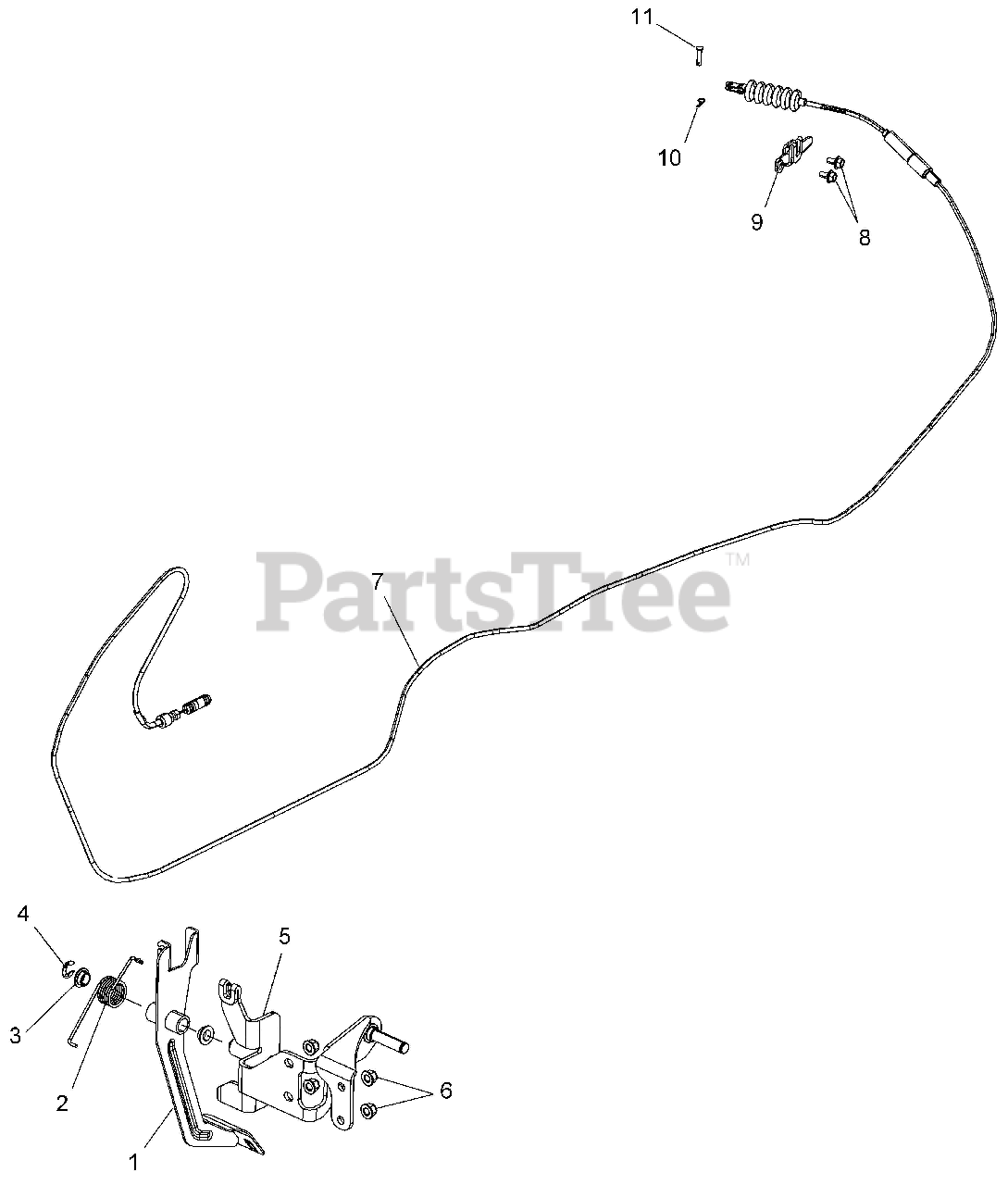

Throttle Pedal And Cable Parts Diagram

  • Title
1.

Gravely 21901248

WELD-THROTTLE PEDAL,BLK

$

$

Not available

2.

Gravely 21900309

SPRING-ACCELERATOR,HEAVY

$

$

Not available

3.

Gravely 21900268

BUSHING-PEDAL PIVOT

$

$

Not available

4.

$

$

Not available

5.

Gravely 21901425

MOUNT, PEDAL, BLACK

$

$

Not available

6.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7.

Gravely 21901239

CABLE-THROTTLE,DSL

$

$

Not available

8.

$

$

Not available

9.

Gravely 21901223

BRKT-THROTTLE,ENGINE

$

$

Not available

10.

Gravely 21901244

HAIRPIN-COTTER 3/16-1/4

$

$

Not available

11.

Gravely 21901243

PIN,CLEVIS

$

$

Not available
