996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Primary Clutch Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

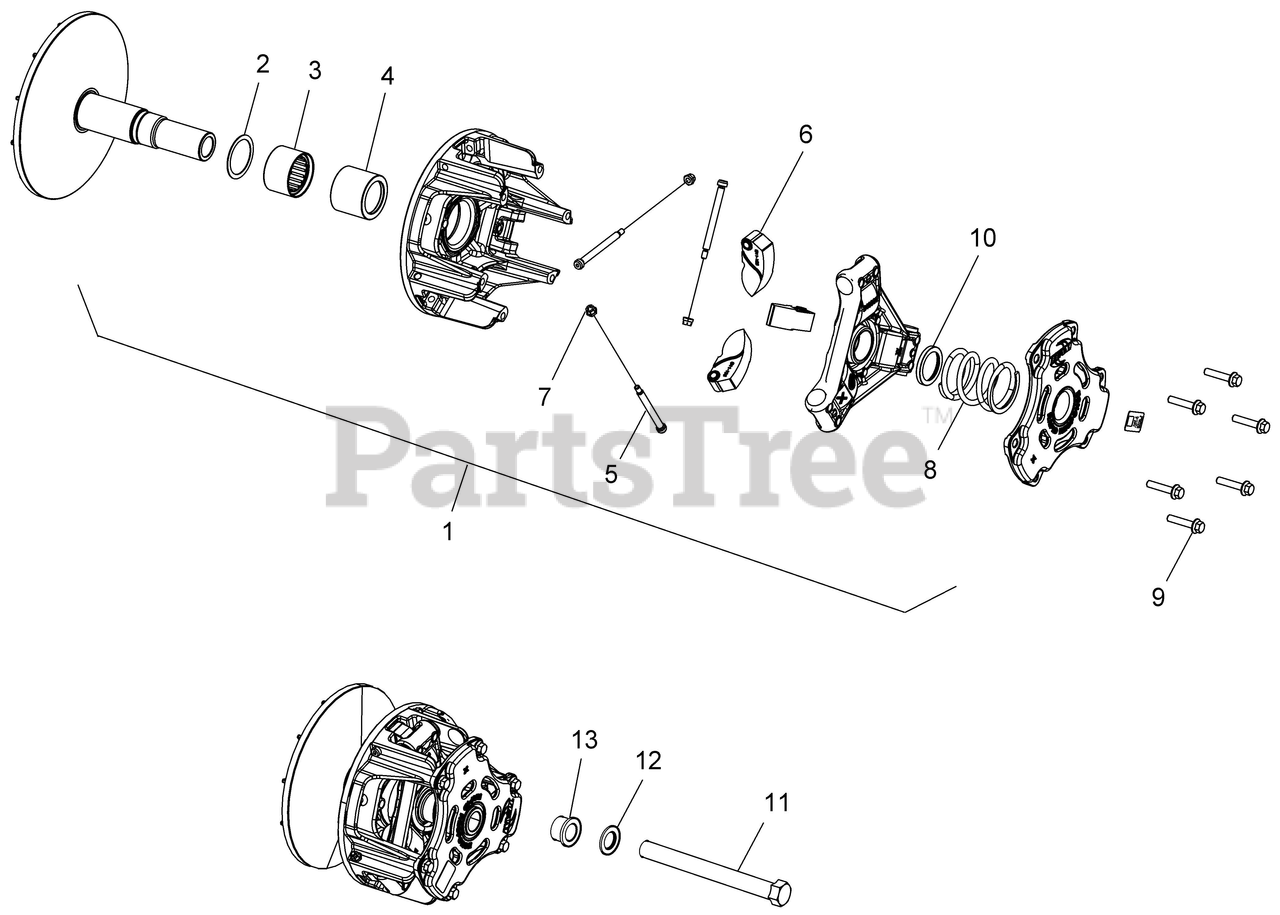

Primary Clutch Parts Diagram

  • Title
1.

Gravely 21901712

ASM., DRIVE CLUTCH

Note: [Incl 2-10]

$

$

Not available

2.

Gravely 21901242

WASHER-THRUST

$

$

Not available

3.

Gravely 21900926

SUBASSY-IDLER SLEEVE PRIMARY

$

$

Not available

4.

Gravely 21901291

CAP, IDLER SLEEVE

$

$

Not available

5.

Gravely 21901195

SCREW, SHOULDER HEX SKT .25 X

$

$

Not available

6.

Gravely 21901713

WEIGHT, CLUTCH, M17-198

$

$

Not available

7.

Gravely 21901194

NUT, LOCK HEX #10-24 FLEXLOC

$

$

Not available

8.

SPRING, COMP., 2IN., 150/260

$

$

Not available

9.

Gravely 21901196

SCREW, HEX FLANGE HD 1/4 - 20

$

$

Not available

10.

Gravely 21901208

COLLAR,PRIMARY SHIFT STOP

$

$

Not available

11.

Gravely 21900429

SCR-M14X1.5X215, HX, 8.8

$

$

Not available

12.

$

$

Not available

13.

Gravely 21900154

WASHER,CLUTCH RETAINER

$

$

Not available
