996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Main Gearcase Internals Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

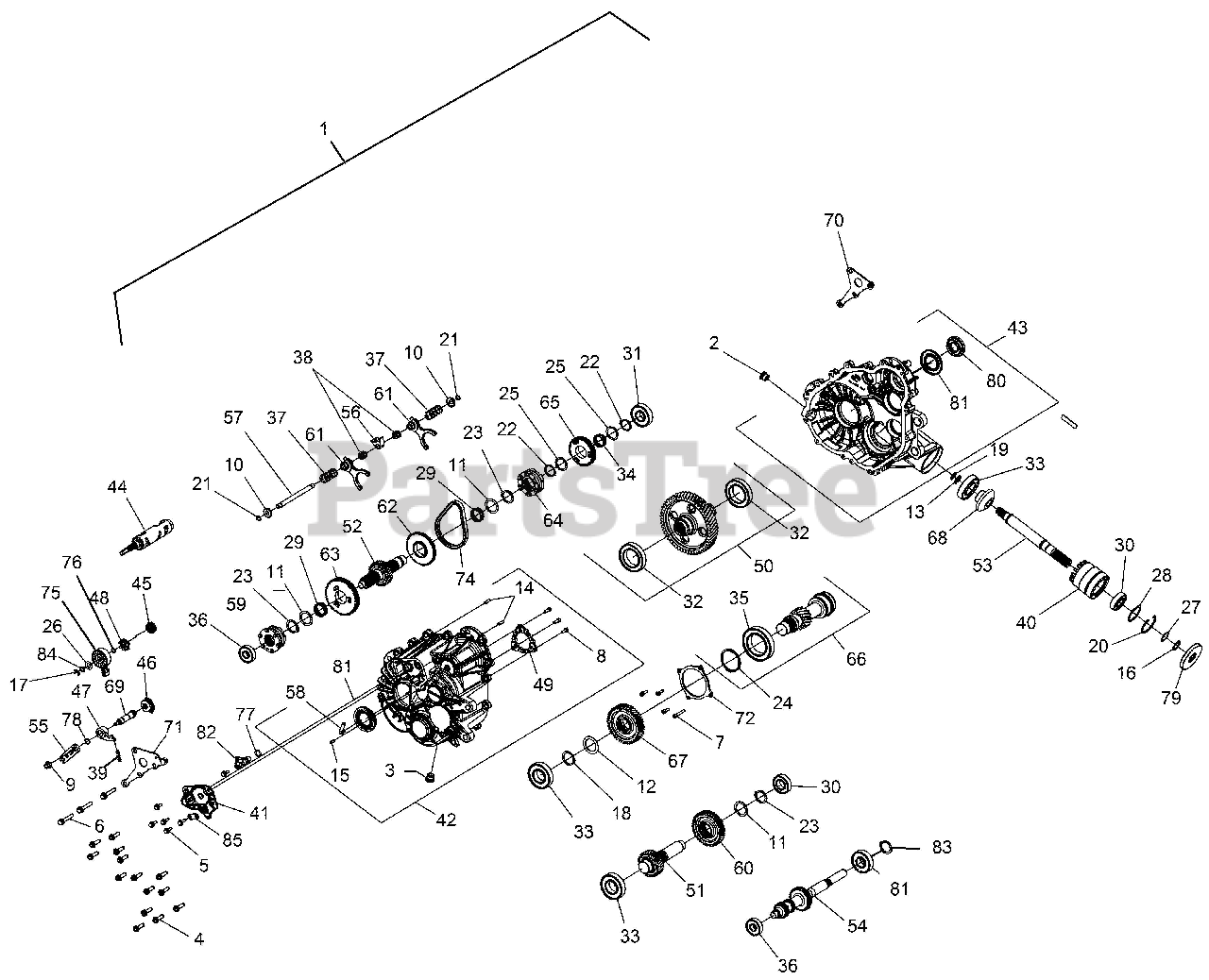

Main Gearcase Internals Parts Diagram

  • Title

1.

Note: [INCL. 2-78]

$

$

Not available

2.

Gravely 21900693

PLUG-SKT HD 1SO 6149,M18 X 1.5

$

$

Not available

3.

Gravely 21900683

PLUG-SOCKET HEAD W/MAG,M18X1.5

$

$

Not available

4.

Gravely 21900687

SCREW-HEXFLANGEHEAD,M8X1.25X30

$

$

Not available

5.

Gravely 21900730

SCREW

$

$

Not available

6.

Gravely 21900799

SCREW

$

$

Not available

7.

Gravely 21900772

SCR-M6X1.0X40,SOC/CAP(105344)

$

$

Not available

8.

Gravely 21900727

SCR-SCKT HD,CP,M6X1X18(105355)

$

$

Not available

9.

Gravely 21900817

NUT-M8X1.25,HXFLG,NYLN(110093)

$

$

Not available

10.

Gravely 21900774

WASHER-CUP

$

$

Not available

11.

Gravely 21900724

WASHER

$

$

Not available

12.

Gravely 21900808

WASHER

$

$

Not available

13.

Gravely 21900779

WASHER

$

$

Not available

14.

Gravely 21901710

PIN, DOWEL, 6 X 20

$

$

Not available

15.

Gravely 21900815

SPRING-SLOTTED PIN,6MM

$

$

Not available

16.

Gravely 21900659

RING, SNAP

$

$

Not available

17.

Gravely 21900660

RING-RETAINING

$

$

Not available

18.

Gravely 21900695

RING,RETAINING

$

$

Not available

19.

Gravely 21900666

RING,RETAINING,EXTERNAL SHR-66

$

$

Not available

20.

Gravely 21900677

RING,RETAININGBASICINTRNL2.047

$

$

Not available

21.

Gravely 21900716

RING-RETAINING

$

$

Not available

22.

Gravely 21900675

RING,RETAINING

$

$

Not available

23.

Gravely 21900670

RING, RETAINING, EXTERNAL

$

$

Not available

24.

Gravely 21900800

RING, RETAINING

$

$

Not available

25.

Gravely 21900708

WASHER,THRUST

$

$

Not available

26.

Gravely 21900712

WASHER,THRUST,.446X.88X.025

$

$

Not available

27.

Gravely 21900728

SHIM 1.180 X .995

$

$

Not available

28.

Gravely 21900729

SHIM 2.040 OD X 1.630 ID

$

$

Not available

29.

Gravely 21900690

BEARING,NEEDLE

$

$

Not available

30.

Gravely 21900629

BEARING

$

$

Not available

31.

Gravely 21900662

BEARING

$

$

Not available

32.

Gravely 21900656

BEARING, BALL

$

$

Not available

33.

Gravely 21900652

BEARING-BALL

$

$

Not available

34.

Gravely 21900737

BEARING,NEEDLE

$

$

Not available

35.

Gravely 21900747

BEARING, BALL

$

$

Not available

36.

Gravely 21900663

BEARING, BALL

$

$

Not available

37.

Gravely 21900710

SPRING-COMPRESSION

$

$

Not available

38.

Gravely 21900722

SPRING-COMPRESSION

$

$

Not available

39.

Gravely 21900777

SPRING,COMPRSSN.54ODX.44IDX.05

$

$

Not available

40.

Gravely 21900734

TUBE, SNORKLE MACH

$

$

Not available

41.

Gravely 21901735

SUBASSY COVER, SECTOR GEARS

$

$

Not available

42.

Gravely 21901737

SUBASM., RH COVER

$

$

Not available

43.

Gravely 21900765

SUBASSY,LH CASE(411919)

$

$

Not available

44.

Gravely 21900782

DRUM-SHIFT,MACH.(255289)

$

$

Not available

45.

Gravely 21900669

GEAR-SECTOR,16T

$

$

Not available

46.

Gravely 21900633

GEAR-SECTOR,31T-CUT TO 11T

$

$

Not available

47.

Gravely 21900793

ROLLER PAWL

$

$

Not available

48.

Gravely 21901470

DETENT STAR

$

$

Not available

49.

Gravely 21900795

PARK PLATE (270509)

$

$

Not available

50.

Gravely 21900818

SUBASSY-GEAR,53T (411797)

$

$

Not available

51.

Gravely 21900738

SHAFT, IDLER, 29T

$

$

Not available

52.

Gravely 21901188

SHAFT, REVERSE, 29T

$

$

Not available

53.

Gravely 21900768

SHAFT-FRONT OUTPUT(285914)

$

$

Not available

54.

Gravely 21901711

SHAFT, INPUT, HELICAL

$

$

Not available

55.

Gravely 21900798

BELLCRANK

$

$

Not available

56.

Gravely 21900791

COLLAR-SHIFT

$

$

Not available

57.

Gravely 21900814

RAIL-SHIFT SHAFT(353622)

$

$

Not available

58.

Gravely 21900755

TUBE-VENT,90-1/4" HOSE

$

$

Not available

59.

Gravely 21900783

SHIFT DOG, PARK/LOW (353357)

$

$

Not available

60.

Gravely 21901192

GEAR, 44T, STAGE 2

$

$

Not available

61.

Gravely 21900732

SHIFT FORK SUBASSEMBLY

$

$

Not available

62.

Gravely 21901736

SPROCKET, 48T, 6-FACE

$

$

Not available

63.

Gravely 21900757

GEAR-LOW,67T(352856)

$

$

Not available

64.

Gravely 21900763

DOG, ENGAGEMENT, 6-FACE

$

$

Not available

65.

Gravely 21900818

SUBASSY-GEAR,53T (411797)

$

$

Not available

66.

Gravely 21900718

ASM-SUB,PINION SHAFT(411759)

$

$

Not available

67.

Gravely 21900739

GEAR, 46T, STAGE 3

$

$

Not available

68.

Gravely 21900713

GEAR-13T,FRONT OUTPUT(352957)

$

$

Not available

69.

Gravely 21900789

SHAFT, SHIFT

$

$

Not available

70.

Gravely 21900894

WELD-REAR MOUNT BRKT

$

$

Not available

71.

Gravely 21900895

BRKT-REAR MOUNT

$

$

Not available

72.

Gravely 21900801

COVER, BEARING, CENTER DRIVE

$

$

Not available

74.

Gravely 21900640

CHAIN, SILENT

$

$

Not available

75.

Gravely 21900668

PIN-GEAR POSITION SWITCH

$

$

Not available

76.

Gravely 21900721

O-RING

$

$

Not available

77.

Gravely 21900658

O-RING, -113

$

$

Not available

78.

Gravely 21900684

O-RING

$

$

Not available

79.

Gravely 21900628

SEAL-TRIPLE LIP 25X80X10

$

$

Not available

80.

Gravely 21900638

SEAL

$

$

Not available

81.

Gravely 21900625

SEAL-TRIPLE LIP,VITON,40X70X7

$

$

Not available

82.

Gravely 21900619

SENSOR-SPEED,TRANS

$

$

Not available

83.

Gravely 21900659

RING, SNAP

$

$

Not available

84.

Gravely 21900711

WASHER-SPRING,210393

$

$

Not available

85.

Gravely 21900803

BRKT-MOUNT(430592)

$

$

Not available
