996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Main Frame Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

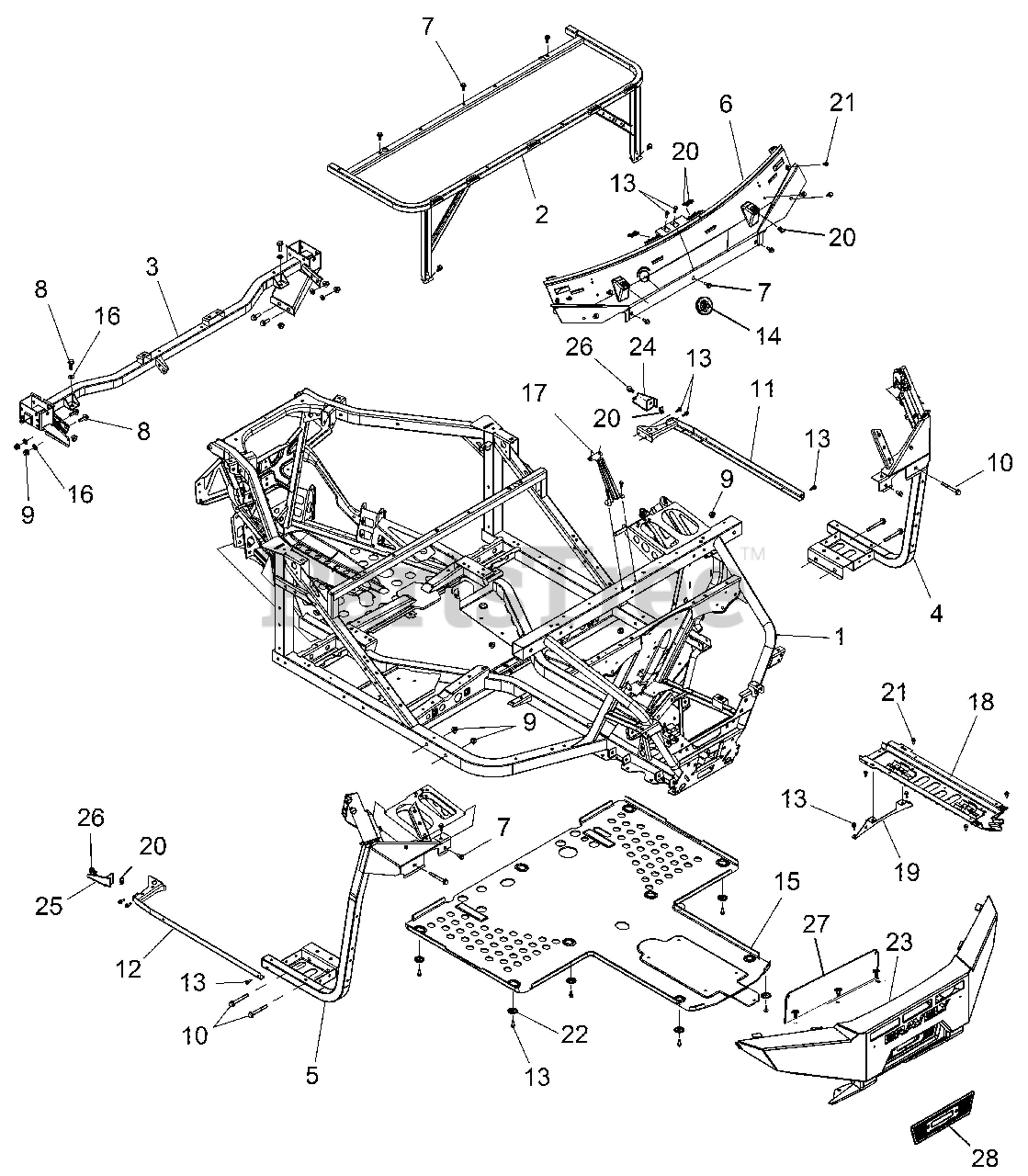

Main Frame Parts Diagram

  • Title
1.

Gravely 21901289

FRAME, MAIN, MATTE BLACK

$

$

Not available

2.

Gravely 21900534

WELD-CAB/SEAT BASE,BLK

$

$

Not available

3.

Gravely 21900831

WELD-CAB SUPPORT,REAR,BLK

$

$

Not available

4.

Gravely 21900829

WELD-FLOOR SUPPORT,LH,BLK

$

$

Not available

5.

Gravely 21900830

WELD-FLOOR SUPPORT,RH,BLK

$

$

Not available

6.

Gravely 21901391

PLATE,WINDSHIELD MOUNT,LOW BLK

$

$

Not available

7.

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

8.

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

9.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

10.

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

11.

Gravely 21900528

WELD-ROCKER,LH,BLK

$

$

Not available

12.

Gravely 21900529

WELD-ROCKER,RH,BLK

$

$

Not available

13.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

14.

Gravely 21901465

GROMMET-ELEC,CAB,SLIT

$

$

Not available

15.

Gravely 21900551

PLATE-SKID,BLK

$

$

Not available

16.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

17.

Gravely 21900900

BRKT-PLATE,CTR,PIN MT,TTN

$

$

Not available

18.

Gravely 21900573

TRAY-ROUTING,BLK

$

$

Not available

19.

Gravely 21900549

BRKT-ROUTING TRAY,BLK

$

$

Not available

20.

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

21.

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

22.

Gravely 21900485

WASHER SKID PLATE

$

$

Not available

23.

Gravely 21900878

WELD-BUMPER,FRONT,ARIENS,M BLK

$

$

Not available

24.

Gravely 21901305

BRACKET,SUPPORT,ROCKER,LH BLCK

$

$

Not available

25.

Gravely 21901307

BRACKET,SUPPORT,ROCKER,RH BLCK

$

$

Not available

26.

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

27.

Gravely 21901466

PLATE,GRAVELY RED

$

$

Not available

28.

Gravely 21901467

SCREEN-BUMPER,BLK

$

$

Not available
