996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Front Wheel Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

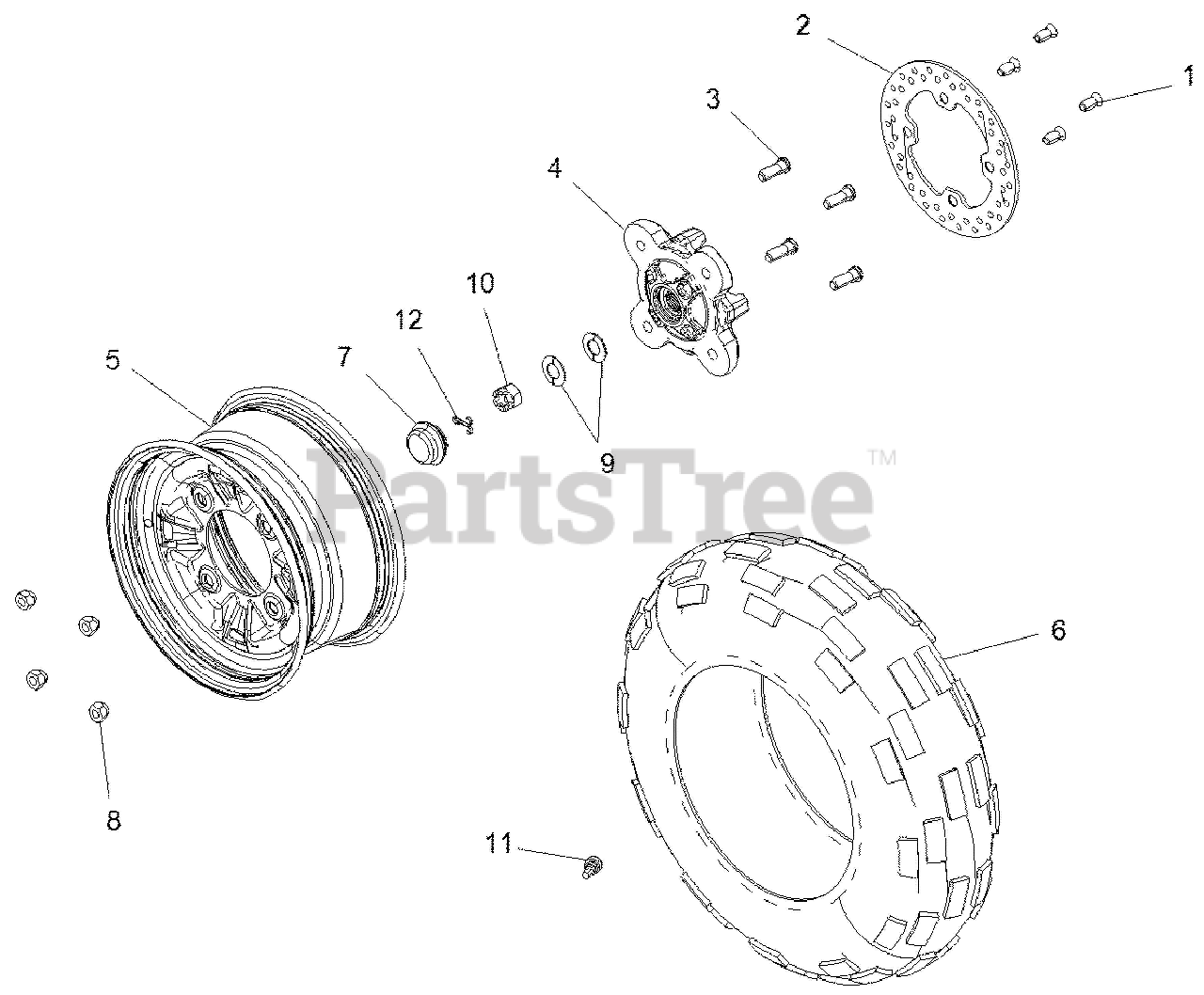

Front Wheel Parts Diagram

  • Title
1.

Gravely 21900411

SCR-M10X1.5X20 8.8 TXCS FL ZOD

$

$

Not available

2.

Gravely 21900003

DISC-BRAKE, FRONT

$

$

Not available

3.

Gravely 21900448

STUD-WHEEL,M12-1.5

$

$

Not available

4.

Gravely 21900546

HUB-WHEEL,FRONT(MACH),BLK

$

$

Not available

5.

Gravely 21901250

WELD-RIM,FR,10 GA,12X6,M.BLK

$

$

Not available

6.

Gravely 21901417

TIRE, FRONT, 25X10-12

$

$

Not available

7.

Gravely 21900904

HUB-DUST COVER,INTRNL LIP,BLNK

$

$

Not available

8.

Gravely 21900475

NUT-LUG,M12

$

$

Not available

9.

Gravely 21900478

WASHER, CONE

$

$

Not available

10.

Gravely 21900466

NUT-M18X1.5,CASTLE,ZINC/YELLOW

$

$

Not available

11.

Gravely 21900047

VALVE, RIM

$

$

Not available

12.

Gravely 21900501

PIN, COTTER

$

$

Not available
