996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Floor And Fenders Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

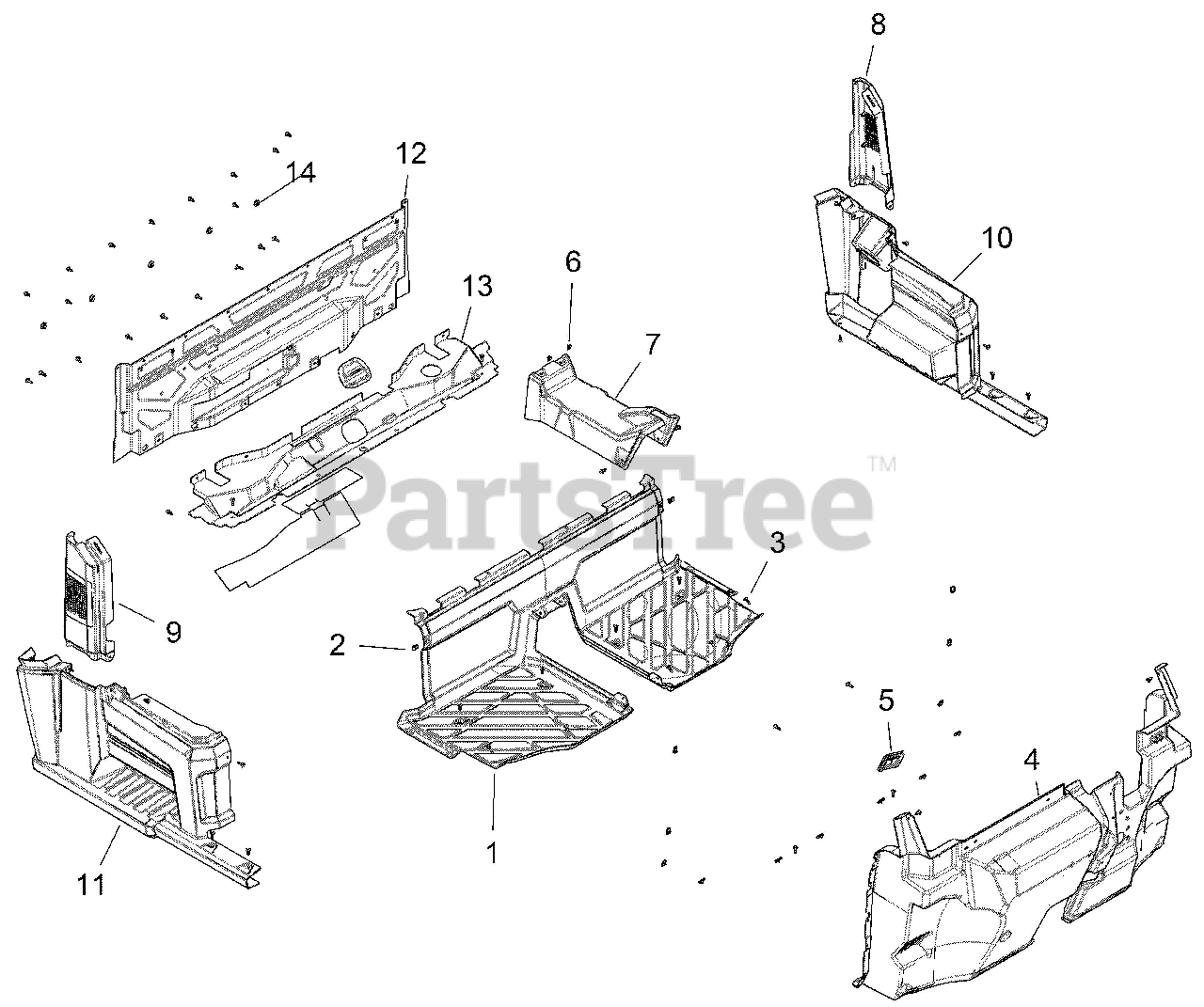

Floor And Fenders Parts Diagram

  • Title
1.

Gravely 21900558

FLOOR-BLK

$

$

Not available

2.

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

3.

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

4.

Gravely 21900557

FLOOR-FRONT,BLK

$

$

Not available

5.

Gravely 21900269

GROMMET-STEERING,FLOOR

$

$

Not available

6.

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

7.

Gravely 21900560

COVER-DRIVE SHAFT,FLOOR,BLK

$

$

Not available

8.

Gravely 21900822

ASM-FENDER-REAR,UPPER,LH,BLK

$

$

Not available

9.

Gravely 21900841

ASM-FENDER-REAR,UPPER,RH,BLK

$

$

Not available

10.

Gravely 21900905

FENDER-REAR,W/ROCKER,LH,ARIENS

$

$

Not available

11.

Gravely 21900906

FENDER-REAR,W/ROCKER,RH,ARIENS

$

$

Not available

12.

Gravely 21900574

PANEL-CLOSEOFF,REAR,BLK

$

$

Not available

13.

Gravely 21900575

PANEL-CLOSEOFF,LOWER,BLK

$

$

Not available

14.

Gravely 21900223

PLUG-COMPARTMENT

$

$

Not available
