996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Engine Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

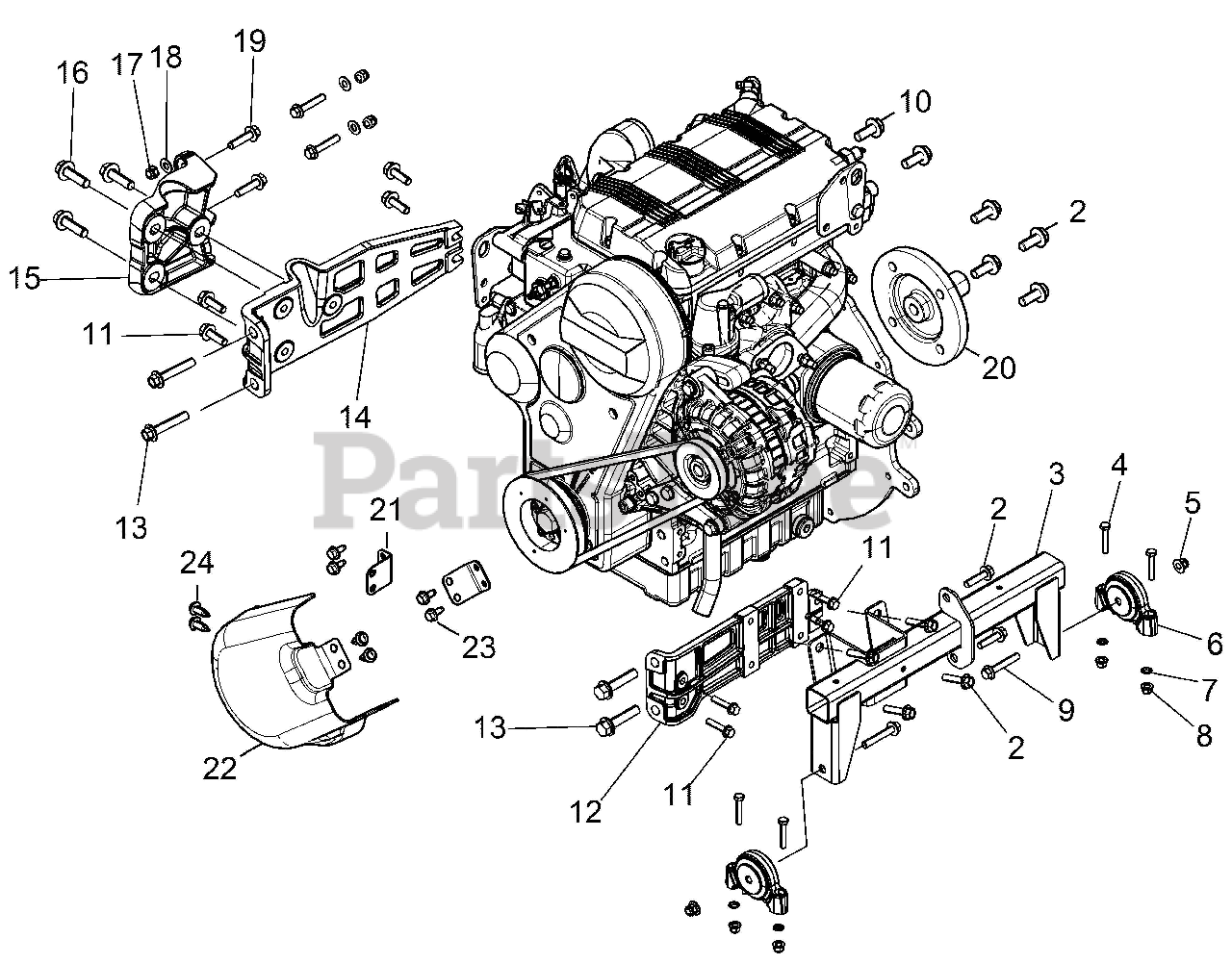

Engine Mounting Parts Diagram

  • Title

2.

Gravely 21900416

SCR-M10X1.5X25 8.8 HXFL ZOD

$

$

Not available

3.

Gravely 21901249

WELD-MOUNT,ENGINE,BLK

$

$

Not available

4.

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

5.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

6.

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

7.

Gravely 21900460

PALNUT

$

$

Not available

8.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

9.

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

10.

Gravely 21900416

SCR-M10X1.5X25 8.8 HXFL ZOD

$

$

Not available

11.

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available

12.

Gravely 21901232

COUPLER-L-ENGINE,FRONT

$

$

Not available

13.

Gravely 21901241

SCR-HXFL-M12X1.75X30 ZOD

$

$

Not available

14.

Gravely 21901714

COUPLER, ENGINE, GEARCASE

$

$

Not available

15.

Gravely 21901231

COUPLER-L-ENGINE,GEARCASE

$

$

Not available

16.

Gravely 21900450

SCR-HXFL-M10X1.5X35 10.9 ZOD D

$

$

Not available

17.

Gravely 21900470

NUT-M10X1.5 HFN NYLOC ZOD

$

$

Not available

18.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

19.

Gravely 21900451

SCR-HXFL-M10X1.5X50 10.9 ZOD

$

$

Not available

20.

Gravely 21901219

ADAPTER-CLUTCH,DSL

$

$

Not available

21.

Gravely 21901715

BRKT,BELT GUARD,MOUNT,BLK

$

$

Not available

22.

Gravely 21901716

COVER,DEBRIS

$

$

Not available

23.

Gravely 21901717

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

$

$

Not available

24.

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available
