996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 160100 - 170100) Box Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

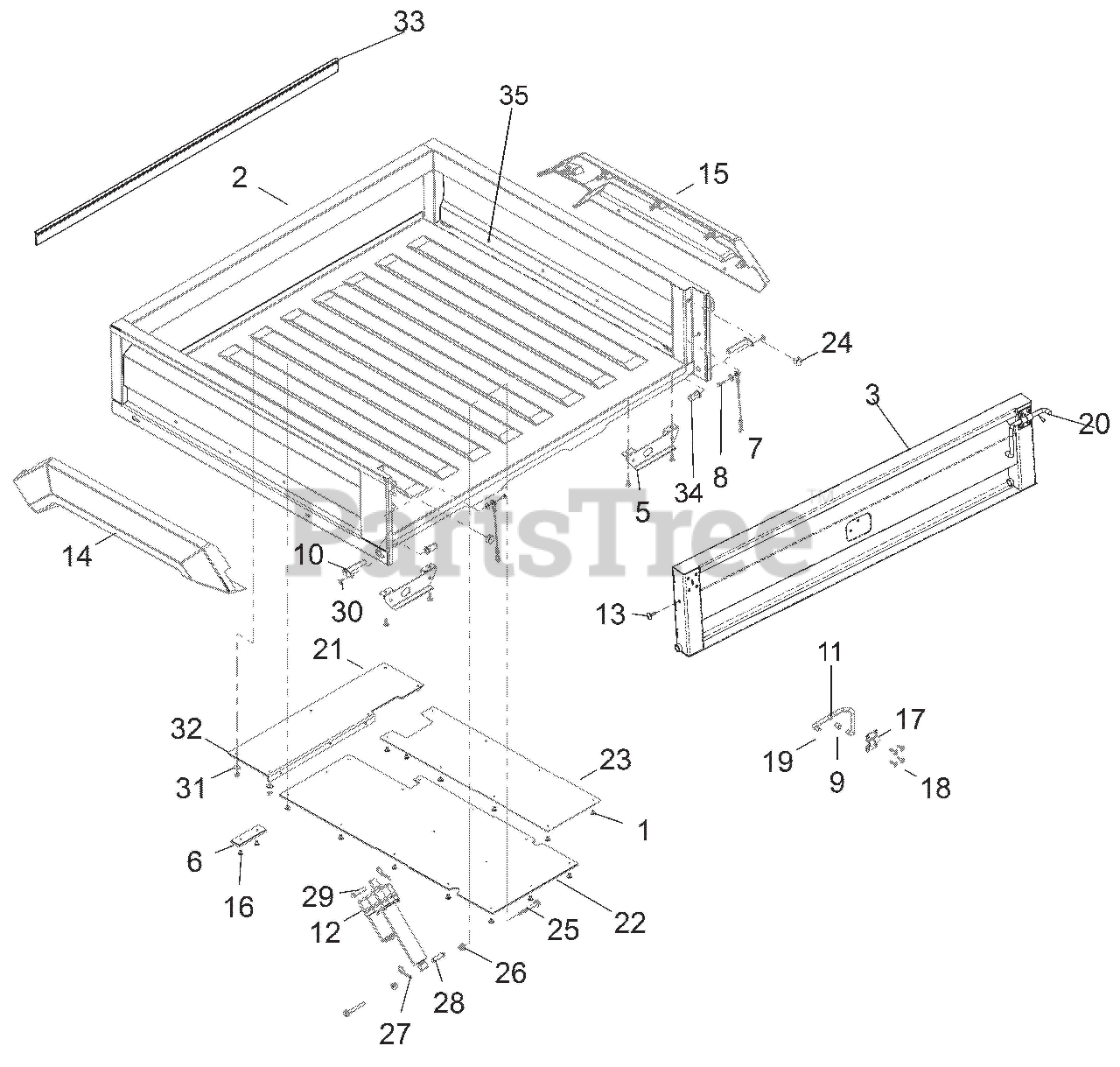

Box Parts Diagram

  • Title

1.

Gravely 21900497

RIVET(50) *

$

$

Not available

2.

Gravely 21901723

BOX, ARNS,GRAVELY RED

$

$

Not available

3.

Gravely 21901724

TAILGATE,ARNS,GRVLY RED

$

$

Not available

5.

Gravely 21901454

BRKT-TAIL LIGHT MOUNT

$

$

Not available

6.

Gravely 21900217

BUMPER-BOX BASE

$

$

Not available

7.

Gravely 21901365

CABLE, TAILGATE

$

$

Not available

8.

Gravely 21900390

BLT-SHLDR .188X.188X.25-20

$

$

Not available

9.

Gravely 21901318

CAP, TAILGATE LATCH

$

$

Not available

10.

Gravely 21901455

PIN-TAILGATE MOUNT

$

$

Not available

11.

Gravely 21901327

BUSHING, TAILGATE LATCH

$

$

Not available

12.

Gravely 21901753

ACTUATOR, BOX LIFT

$

$

Not available

13.

Gravely 21900870

SCR-TXTH-M6X1.0X25 RIE,SHDR

$

$

Not available

14.

Gravely 21901456

ASM-FLARE,BOX,CLIP,LH

$

$

Not available

15.

Gravely 21901457

ASM-FLARE,BOX,CLIP,RH

$

$

Not available

16.

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

17.

Gravely 21901458

BRKT-TAILGATE LATCH

$

$

Not available

18.

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

19.

Gravely 21901481

ROD, LATCH, LH

$

$

Not available

20.

Gravely 21901482

ROD, LATCH, RH

$

$

Not available

21.

Gravely 21901328

SHIELD, HEAT, EXHAUST, FRONT

$

$

Not available

22.

Gravely 21901329

SHIELD, HEAT, EXHAUST, REAR

$

$

Not available

23.

Gravely 21901309

SHIELD, HEAT EXHAUST MID

$

$

Not available

24.

Gravely 21901317

BUMPER, TAILGATE

$

$

Not available

25.

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

26.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

27.

Gravely 21901334

CLIP, HITCH PIN

$

$

Not available

28.

Gravely 21901335

PIN, CLEVIS

$

$

Not available

29.

Gravely 21901336

PIN, CLEVIS BOX LIFT 2"

$

$

Not available

30.

Gravely 21900409

SCR-M6X1X16 TR/TX-M

$

$

Not available

31.

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

32.

Gravely 21901332

WASHER

$

$

Not available

33.

Gravely 21901725

TRIM,BOX

$

$

Not available

34

Gravely 21901451

BUSHING, TAILGATE PIVOT PIN

$

$

Not available

35

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available
