996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Wire Harnesses Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

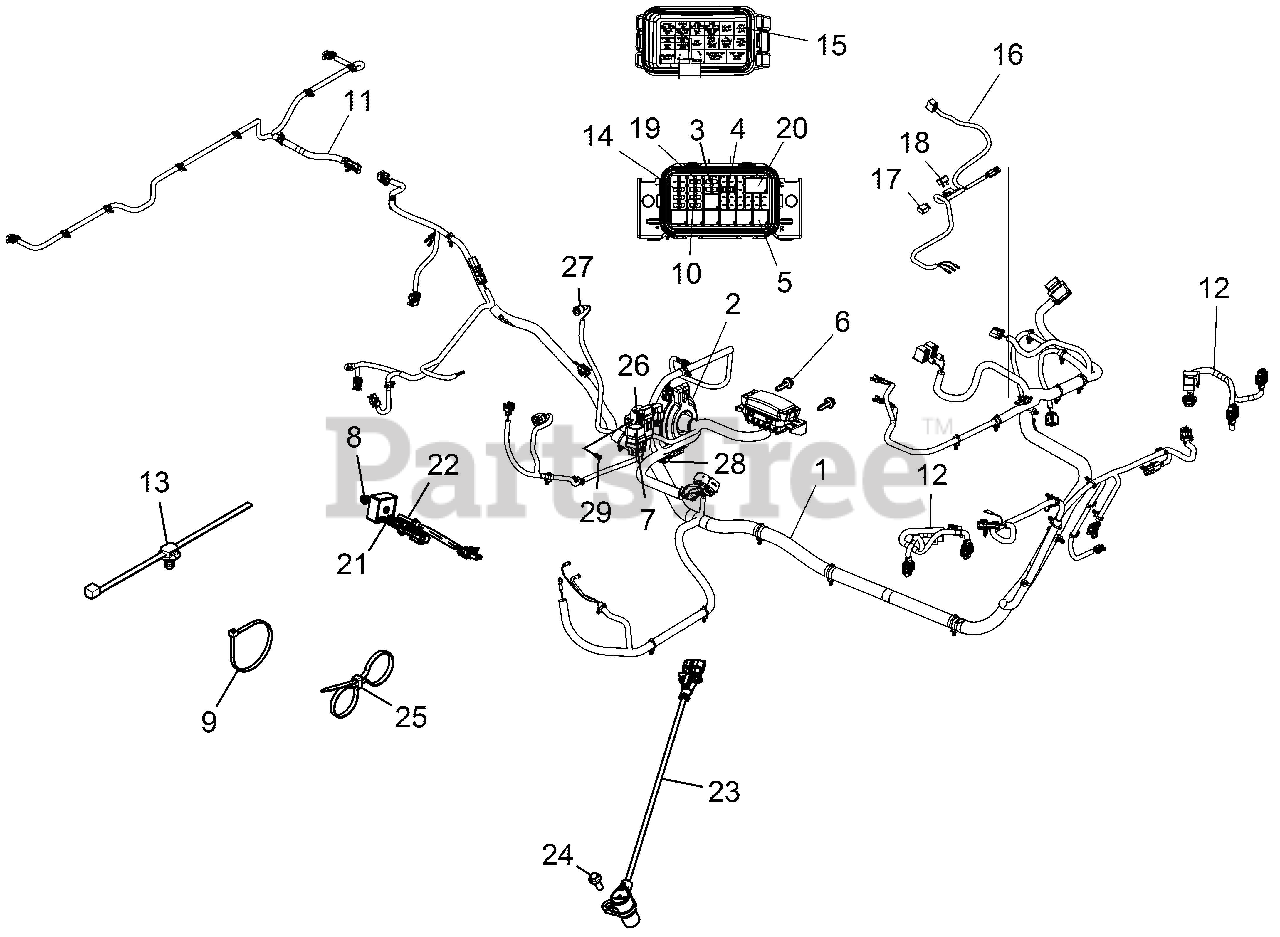

Wire Harnesses Parts Diagram

  • Title
1

Gravely 21900935

HARNESS-CHASSIS,DSL,EPS

Note: [INCL. 2-5,10-15,19,20,25-28]

$

$

Not available

1

Gravely N/A

KIT, FUSIBLE LINK, 2MM

$

$

Currently unavailable

1

Gravely N/A

KIT, FUSIBLE LINK, 1MM

$

$

Currently unavailable

1

Gravely N/A

KIT, FUSIBLE LINK, .8MM

$

$

Currently unavailable

2

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

3

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

4

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

5

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

6

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

7

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

9

Gravely 21900324

CABLE TIE (10)

$

$

Not available

10

Gravely 21900826

FUSE,PARK,20 AMP,(10)

$

$

Not available

11

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

12

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

$

$

Not available

13

Gravely 21900348

CLIP-ROUTING

$

$

Not available

14

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

15

Gravely 21901430

DECAL, FUSE BLOCK

$

$

Not available

16

Gravely 21900934

HARNESS-BOX,LIFT

Note: [INCL. 17-18]

$

$

Not available

17

Gravely 21901211

RELAY-MICRO,SPST,35A,SEALED

$

$

Not available

18

Gravely 21900933

BREAKER-CIRCUIT,20 AMP,SEALED

$

$

Not available

19

Gravely 21900932

FUSE, MINI BLADE, 15 AMP

$

$

Not available

20

Gravely 21901212

RELAY-SPDT,SERIES 301,SEALED

$

$

Not available

21

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

22

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

23

Gravely 21900073

SENSOR-CRANK POSITION

$

$

Not available

24

$

$

Not available

25

Gravely 21901419

CABLE TIE

$

$

Not available

26

Gravely 21901423

CLIP, X-MAS-TREE

$

$

Not available

27

Gravely N/A

BOOT, OIL PRESSURE SWITCH

$

$

Currently unavailable

28

Gravely 21901411

TVS, 30VOLT

$

$

Not available

29

Gravely 21901422

CLIP, PLASTIC DART, NYLON

$

$

Not available
