996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Throttle Pedal/Cable Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

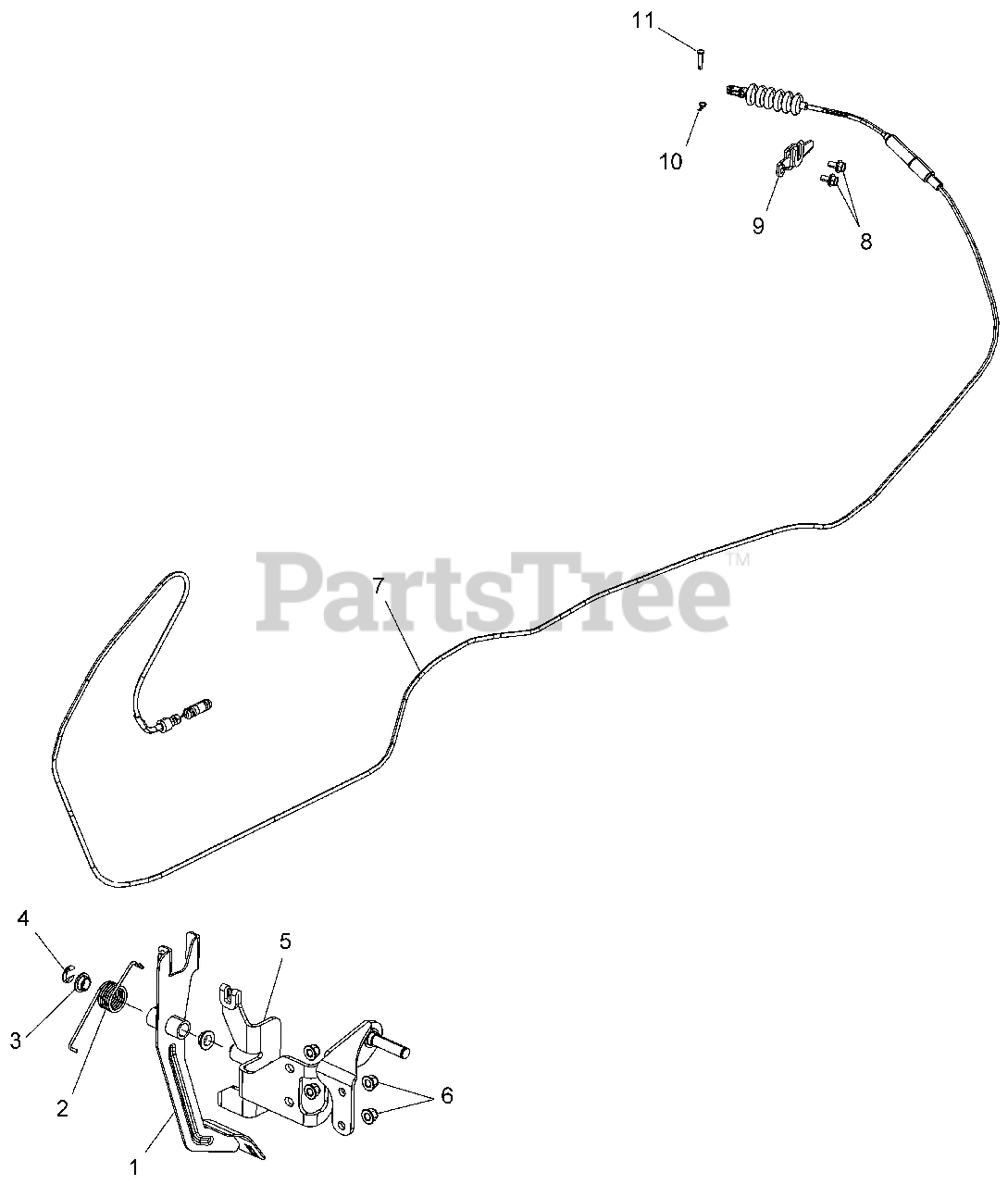

Throttle Pedal/Cable Parts Diagram

  • Title
1.

Gravely 21901248

PEDAL, THROTTLE, MATTE BLACK

$

$

Not available

2.

Gravely 21900309

SPRING, ACCELERATOR, HEAVY

$

$

Not available

3.

Gravely 21900268

BUSHING, PEDAL, PIVOT

$

$

Not available

4.

Gravely 21900518

RING, E, RETAINING

$

$

Not available

5.

Gravely 21901425

PEDAL, MOUNT, MATTE BLACK

$

$

Not available

$

$

Not available

7.

Gravely 21901239

CABLE, THROTTLE

$

$

Not available

8.

$

$

Not available

9.

Gravely 21901223

BRKT., THROTTLE, ENGINE

$

$

Not available

10.

Gravely 21901244

HAIRPIN, COTTER

$

$

Not available

11.

Gravely 21901243

PIN, CLEVIS

$

$

Not available
