996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Secondary Clutch Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

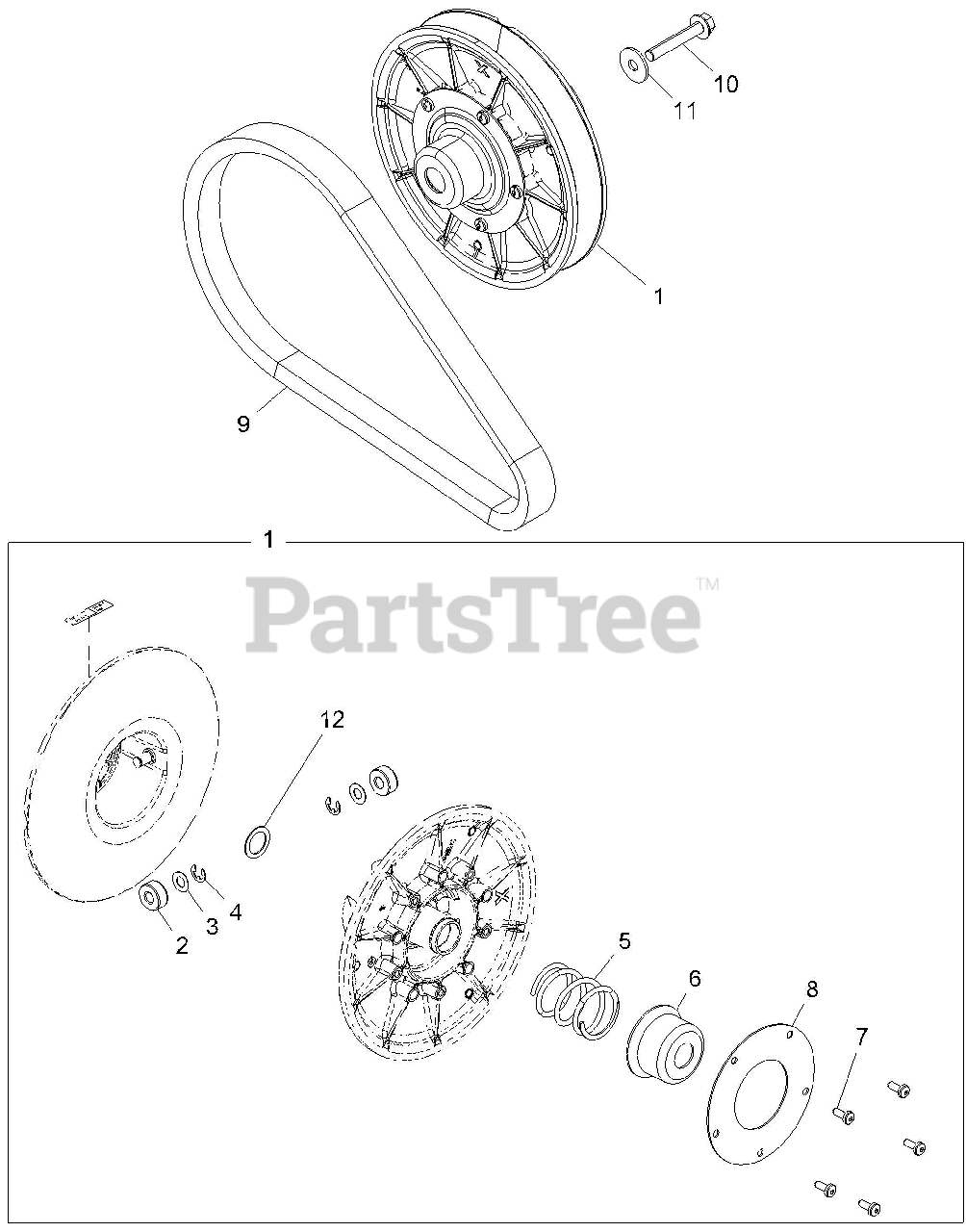

Secondary Clutch Parts Diagram

  • Title
1

Gravely 21900924

ASM-CLTCH,DRVN,DSL

Note: [INCL. 1-7]

$

$

Not available

2

Gravely 21900672

ROLLER-CLUTCH,.955 ODX.450

$

$

Not available

3

Gravely 21900661

WASHER-THRUST

$

$

Not available

4

Gravely 21900665

RET.E-RING-E T.375

$

$

Not available

5

Gravely 21901236

SPRING-CLUTCH,BLW,101-144

$

$

Not available

6

Gravely 21900824

CUP-SPRING,BOSS LW UTILITY

$

$

Not available

7

Gravely 21900825

SCR-TORX,M6X1.0X16

$

$

Not available

8

Gravely 21900852

PLATE,RETAINER,FLAT,BOSS,LW

Note: [QTY 1-5]

$

$

Not available

9

Gravely 21901182

BELT-DRIVE,11"CD

$

$

Not available

10

Gravely 21900430

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

11

Gravely 21900479

WASHER, FLAT

$

$

Not available

12

Gravely 21900492

WSHR-THRUST,1.189X0.838X0.12

$

$

Not available
