996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Main Gearcase Mounting Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

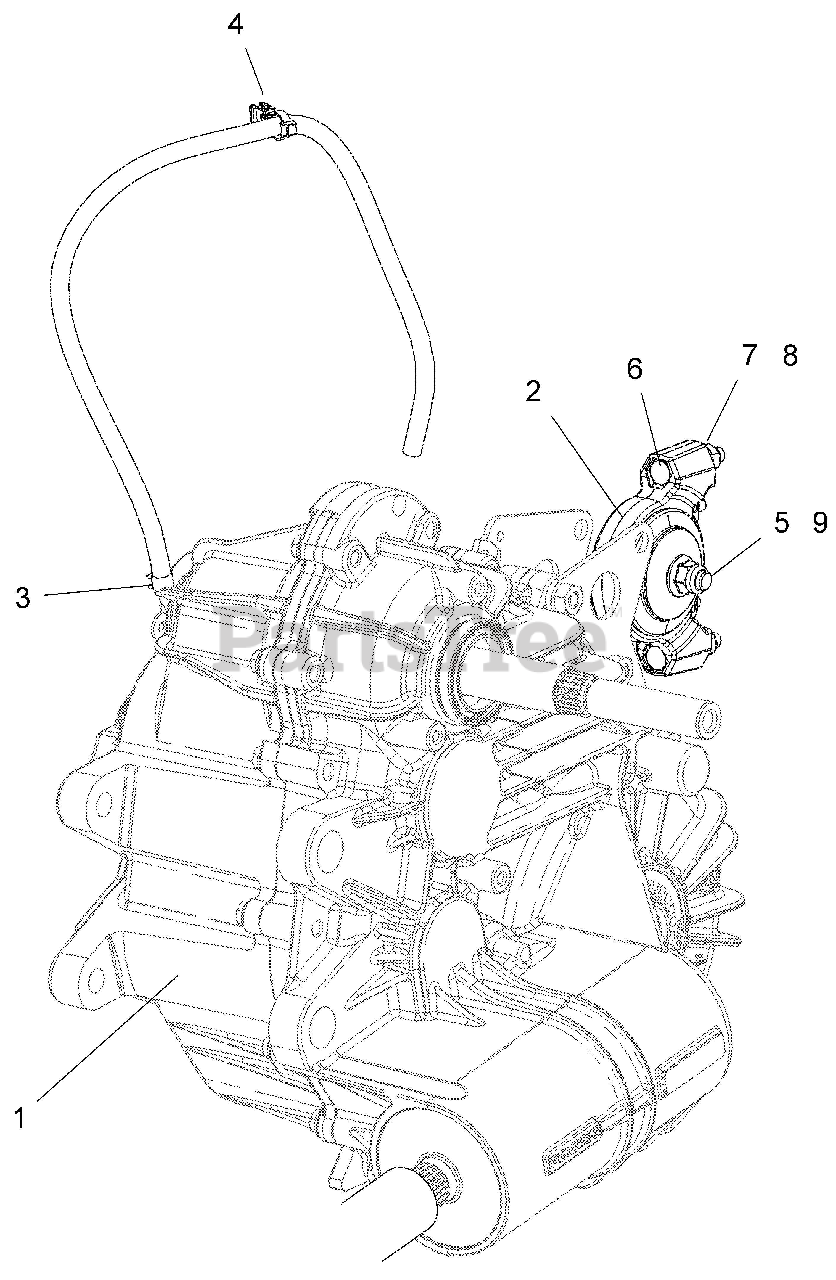

Main Gearcase Mounting Parts Diagram

  • Title
1

Gravely 21900928

ASM-GEARCASE,DSL

$

$

Not available

2

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

3

Gravely 21900326

CLAMP,HOSE(10)

$

$

Not available

4

Gravely 21900352

STRAP-CABLE TIE W/EDGE CLIP

$

$

Not available

5

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

6

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

7

$

$

Not available

8

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

9

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
