996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Cooling System Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

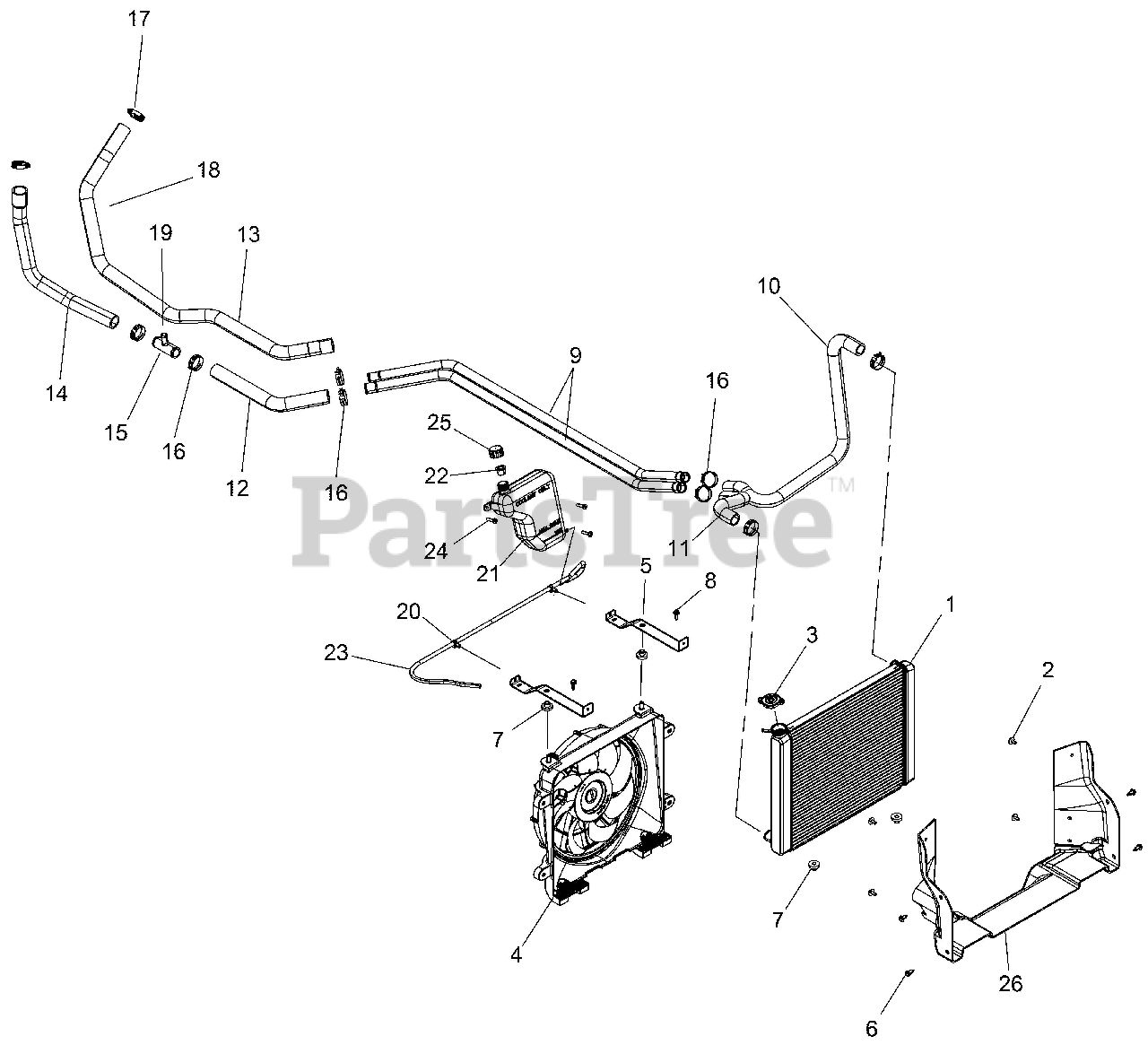

Cooling System Parts Diagram

  • Title

1

Gravely 21900029

ASM-RADIATOR, CORE

$

$

Not available

2

Gravely 21900446

BOLT-M6X15MM

$

$

Not available

3

Gravely 21900030

CAP

$

$

Not available

4

Gravely 21900074

FAN-ASSEMBLY

$

$

Not available

5

Gravely 21901366

MOUNT, RADIATOR, BLACK

$

$

Not available

6

Gravely 21900503

RIVET-TUFLOCK, .315-.325 X .787

$

$

Not available

7

Gravely 21900315

GROMMET

$

$

Not available

8

Gravely 21900393

SCR-M6 X 1.0 X 20, HXHD, FLG, TDFM, BL

$

$

Not available

9

Gravely 21900165

TUBE-COOLANT, 1"

$

$

Not available

10

Gravely 21900232

HOSE-UPPER, RAD

$

$

Not available

11

Gravely 21900233

HOSE-LOWER, RAD

$

$

Not available

12

Gravely 21901413

HOSE, ENGINE, IN

$

$

Not available

13

Gravely 21901414

HOSE, ENGINE, OUT

$

$

Not available

14

Gravely 21901415

HOSE, ENGINE, BYPASS

$

$

Not available

15

Gravely 21900320

CONNECTOR-TEE, 1 X 1 X 0.5

$

$

Not available

16

Gravely 21900339

CLAMP, SPRINGBAND 35/12, BLK

$

$

Not available

17

Gravely 21900342

CLAMP-HOSE(WORM DR) 25-40MM

$

$

Not available

18

Gravely 21900348

CLIP-ROUTING

$

$

Not available

19

Gravely 21900350

CLAMP-HOSE, SPRING, 20MM

$

$

Not available

20

Gravely 21900508

CLIP

$

$

Not available

21

Gravely 21900266

TANK-SURGE

$

$

Not available

22

Gravely 21900251

CAP, PLUG 9X(GRN), FLEX TEMP (10)

$

$

Not available

23

Gravely 21900581

FUEL LINE-95 CENTIMETERS

$

$

Not available

24

Gravely 21900387

SCR-#14 X 1 HI/LO-PH-PN-TRX-M

$

$

Not available

25

Gravely 21900250

CAP, OVERFLOW

$

$

Not available

26

Gravely 21900561

RADIATOR

$

$

Not available
