996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Cab Frame Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

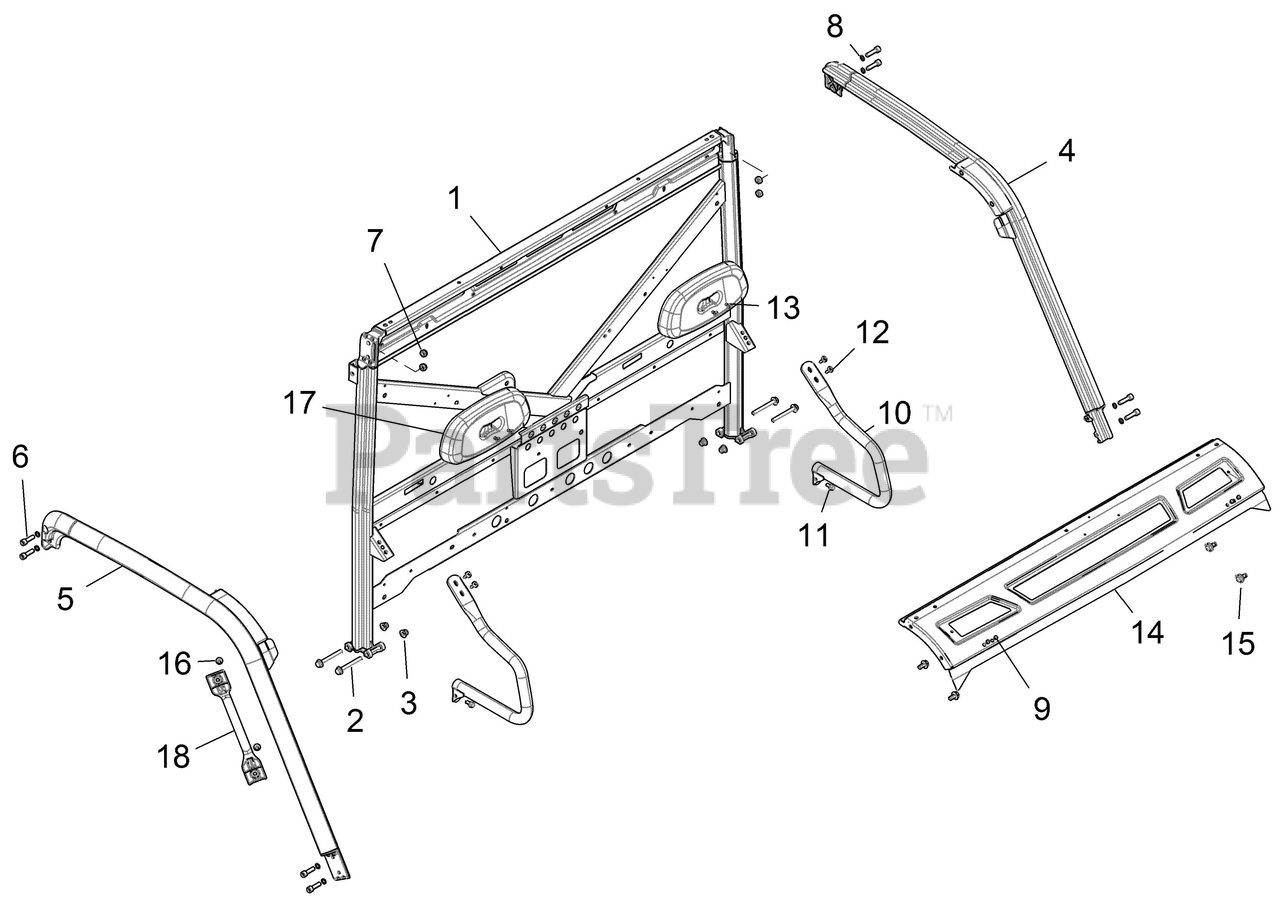

Cab Frame Parts Diagram

  • Title
1

Gravely 21901463

WELD-CAB FRAME,REAR,BLK

$

$

Not available

2

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

3

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

4

Gravely 21900523

WELD-CAB FRAME,FRT,LH,M.BLK

$

$

Not available

5

Gravely 21900524

WELD-CAB FRAME,FRT,RH,M.BLK

$

$

Not available

6

Gravely 21900453

SCR-SH-M10X1.5X35 8.8 ZPB

$

$

Not available

7

Gravely 21900462

NUT-NYLOC M10X1.5,REF

$

$

Not available

8

$

$

Not available

9

Gravely 21900511

PLUG-FENDER, REAR

$

$

Not available

10

Gravely 21901464

TUBE-HIP BOLSTER,BLK

$

$

Not available

11

Gravely 21900422

SCR-HXFL-M8X1.25X20 8.8 ZOD P3

$

$

Not available

12

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

13

Gravely 21900496

RIVET(50)

$

$

Not available

14

Gravely 21900548

PLATE-WINDSHIELD MNT,UP,M.BLK

$

$

Not available

15

Gravely 21900391

BOLT-M10X1.5X20,HXFLG,W/PATCH

$

$

Not available

16

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

17

Gravely 21900915

HEADREST-GRAVELY,GRAY

$

$

Not available

18

Gravely 21900576

HANDLE-GRAB,ROPS,BLK

$

$

Not available
