996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Box Assembly Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

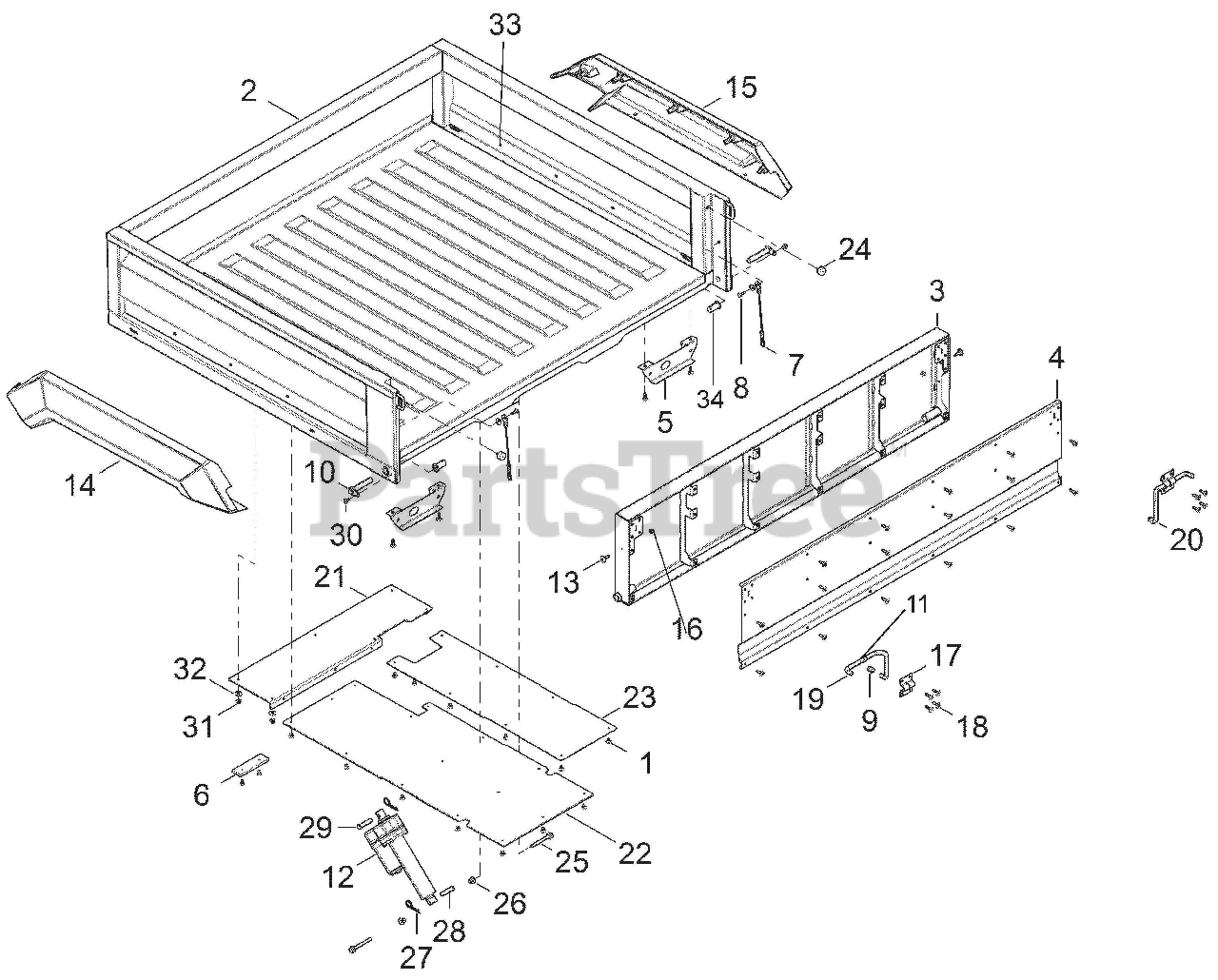

Box Assembly Parts Diagram

  • Title
1

Gravely 21900497

RIVET(50) *

$

$

Not available

2

Gravely 21900881

BOX-ARIENS,GRAVELY RED

$

$

Not available

3

Gravely 21900882

TAILGATE,ARIENS,GRAVELY RED

$

$

Not available

4

Gravely 21901310

PANEL, TAILGATE, GRAVELY RED

$

$

Not available

5

Gravely 21901454

BRKT-TAIL LIGHT MOUNT

$

$

Not available

6

Gravely 21900217

BUMPER-BOX BASE

$

$

Not available

7

Gravely 21901365

CABLE, TAILGATE

$

$

Not available

8

Gravely 21900390

BLT-SHLDR .188X.188X.25-20

$

$

Not available

9

Gravely 21901318

CAP, TAILGATE LATCH

$

$

Not available

10

Gravely 21901455

PIN-TAILGATE MOUNT

$

$

Not available

11

Gravely 21901327

BUSHING, TAILGATE LATCH

$

$

Not available

12

Gravely 21900897

ACTUATOR-BOX LIFT,SPLY

$

$

Not available

13

Gravely 21900870

SCR-TXTH-M6X1.0X25 RIE,SHDR

$

$

Not available

14

Gravely 21901456

ASM-FLARE,BOX,CLIP,LH

$

$

Not available

15

Gravely 21901457

ASM-FLARE,BOX,CLIP,RH

$

$

Not available

16

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

17

Gravely 21901458

BRKT-TAILGATE LATCH

$

$

Not available

18

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

19

Gravely 21901313

ROD, LATCH, LH, BLK

$

$

Not available

20

Gravely 21901314

ROD, LATCH, RH, BLK

$

$

Not available

21

Gravely 21901328

SHIELD, HEAT, EXHAUST, FRONT

$

$

Not available

22

Gravely 21901329

SHIELD, HEAT, EXHAUST, REAR

$

$

Not available

23

Gravely 21901309

SHIELD, HEAT EXHAUST MID

$

$

Not available

24

Gravely 21901317

BUMPER, TAILGATE

$

$

Not available

25

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

26

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

27

Gravely 21901334

CLIP, HITCH PIN

$

$

Not available

28

Gravely 21901335

PIN, CLEVIS

$

$

Not available

29

Gravely 21901336

PIN, CLEVIS BOX LIFT 2"

$

$

Not available

30

Gravely 21900409

SCR-M6X1X16 TR/TX-M

$

$

Not available

31

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

32

$

$

Not available

33

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

34

Gravely 21901451

BUSHING, TAILGATE PIVOT PIN

$

$

Not available
