996202 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Diesel (SN: 150101 - 159999) Battery Parts Diagram

Atlas JSV Utility Vehicle, Base, Diesel

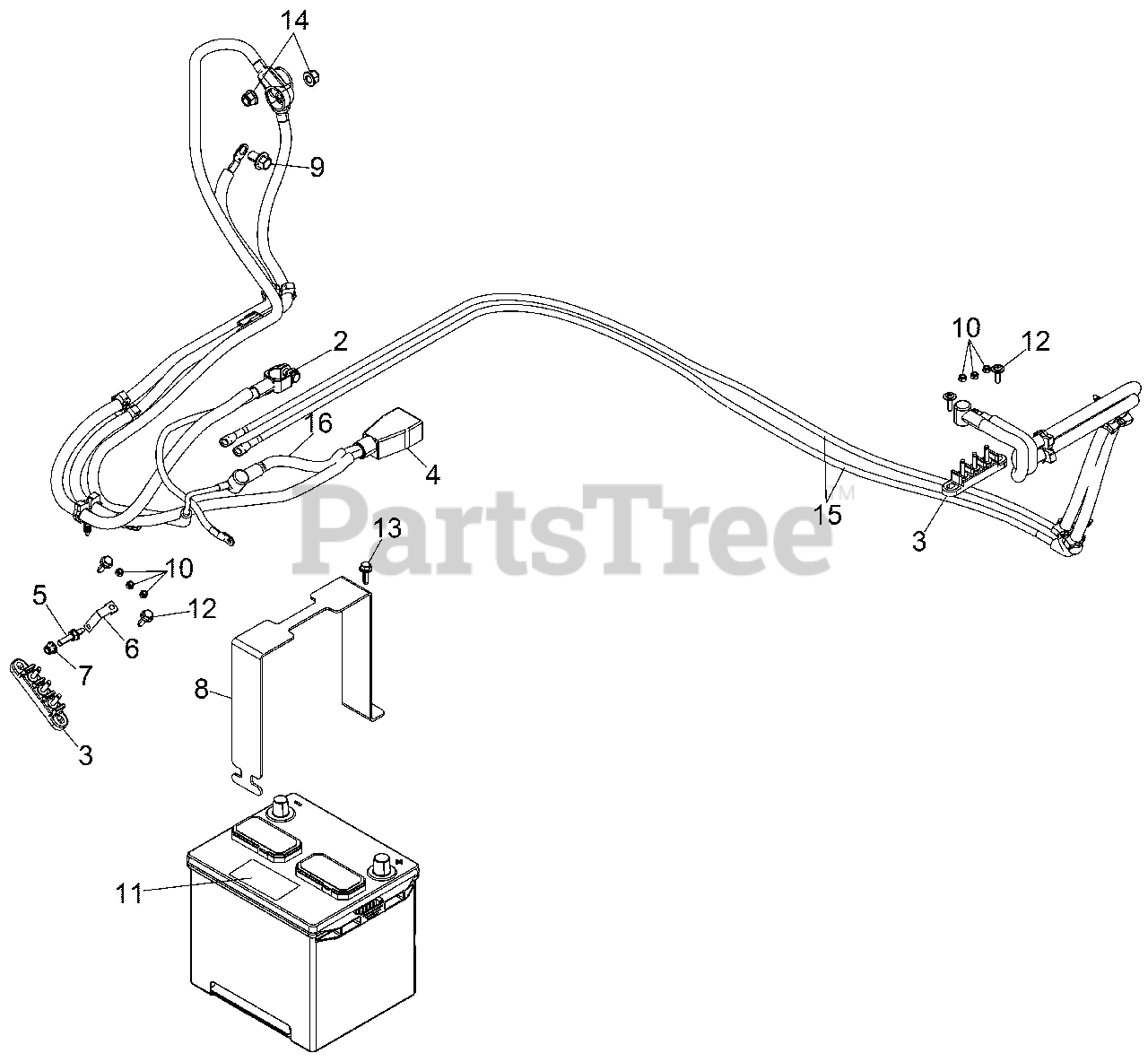

Battery Parts Diagram

  • Title
2

Gravely 21901216

ASM-CABLE, BAT TO GROUND/TERM

$

$

Not available

3

Gravely 21900140

BLOCK-TERMINAL,3 POST

$

$

Not available

4

Gravely 21901214

ASM-CABLE, BAT TO STARTER SOL

Note: [INCL. ATTACHMENT CLIP]

$

$

Not available

5

Gravely 21900441

STUD-M6X1.0X19-M6 TAPTITE

$

$

Not available

6

Gravely 21901220

STRAP-GROUND

$

$

Not available

7

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

8

Gravely 21900199

BRKT-BATTERY STRAP GALV

$

$

Not available

9

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

10

Gravely 21900468

NUTS-10-32 KEPS

$

$

Not available

11

Gravely 21901269

DECAL, BATTERY

$

$

Not available

12

Gravely 21900388

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

$

$

Not available

13

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

$

$

Not available

15

Gravely 21901347

CABLE, TERMINAL BLOCK, GROUND

$

$

Not available

16

Gravely 21901215

CABLE-ALTERNATOR,BATT

$

$

Not available
