996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 190101 - 199999) Cam Chain And Sprocket Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

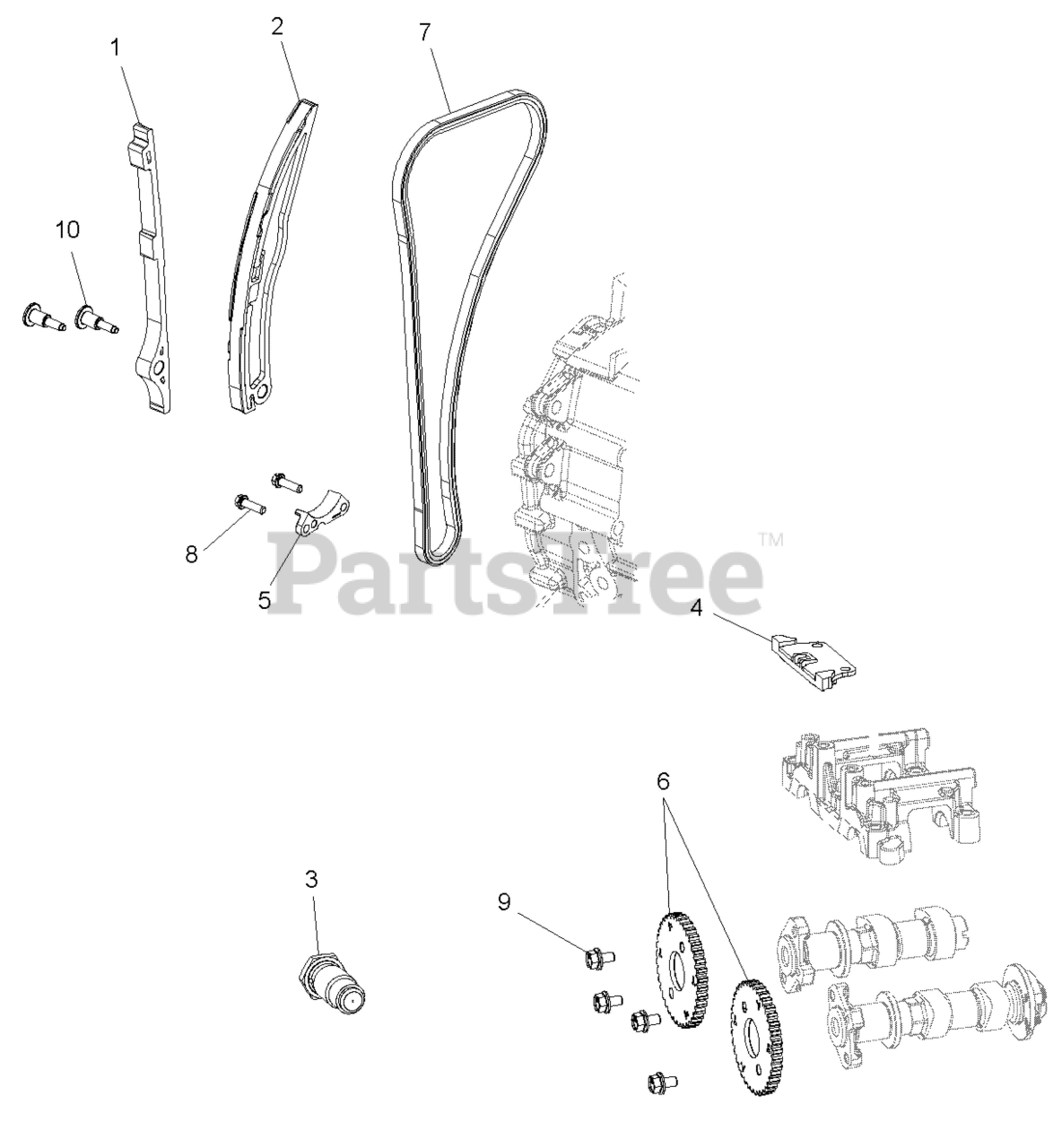

Cam Chain And Sprocket Parts Diagram

  • Title
1

Gravely 21900102

GUIDE-CAMCHAIN,FIXED

$

$

Not available

2

Gravely 21900103

GUIDE-CAMCHAIN,TENSIONER

$

$

Not available

3

Gravely 21900104

TENSIONER-CAMCHAIN,HYD

Note: [INCL. TENSIONER GASKET]

$

$

Not available

3

Gravely 21900295

GASKET-TENSIONER

$

$

Not available

4

Gravely 21900105

GUIDE, CAMCHAIN, FIXED, COVER

$

$

Not available

5

Gravely 21901844

GUIDE, CAM DRIVE, LOWER

$

$

Not available

6

Gravely 21900115

SPROCKET, CAM, DRIVEN

$

$

Not available

7

Gravely 21900116

CHAIN-CAMSHAFT 144L

$

$

Not available

8

Gravely 21900401

SCR-M6X20,HXFLG,0600214

$

$

Not available

9

Gravely 21900425

SCR-HXFL,M6X1.0X10 10.9

$

$

Not available

10

Gravely 21900426

BOLT-SHLDR,M6X12X15

$

$

Not available
