996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 190101 - 199999) Box Asm Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

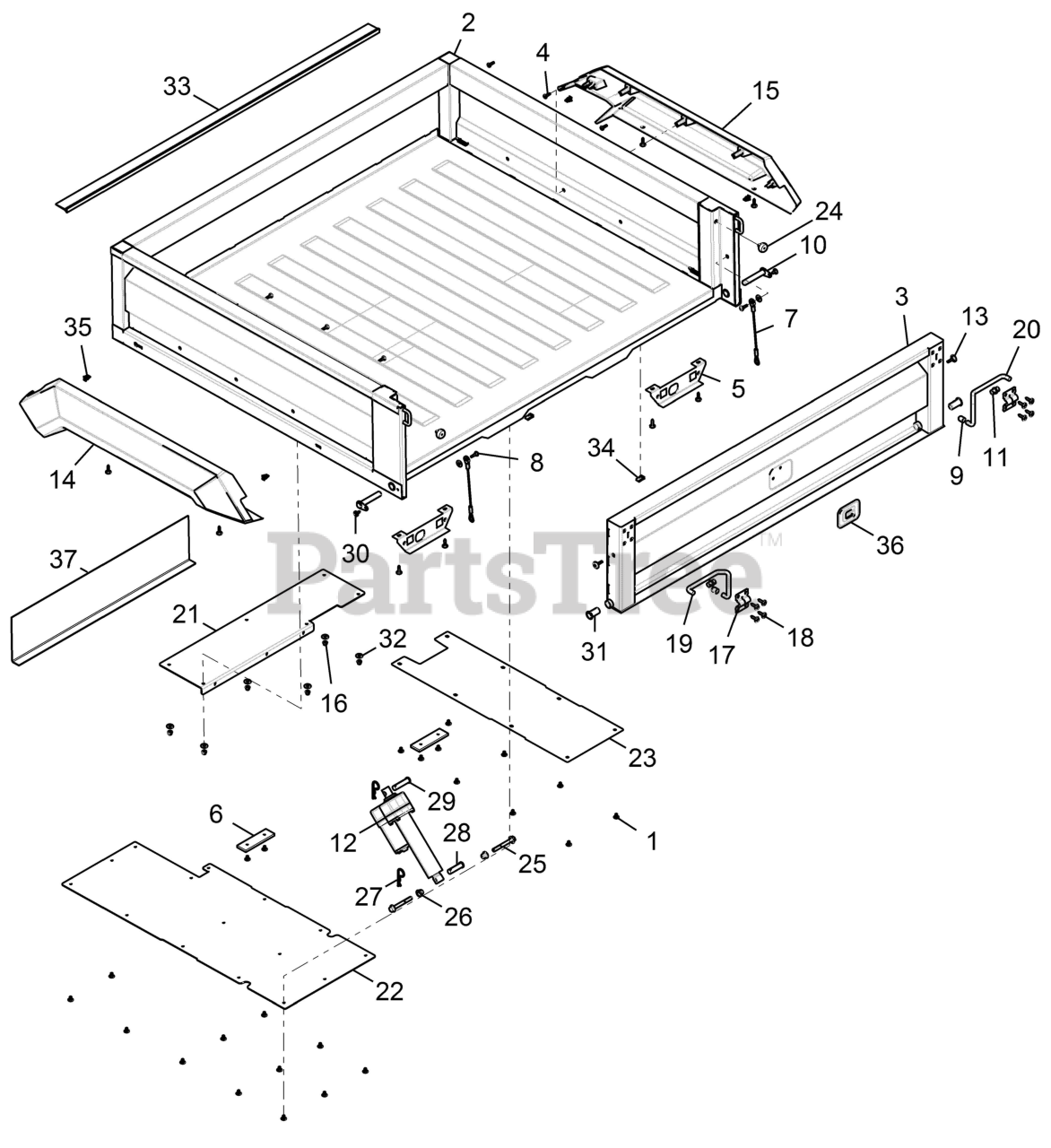

Box Asm Parts Diagram

  • Title
1

Gravely 21900497

RIVET(50) *

$

$

Not available

2

Gravely 21901723

BOX, ARNS,GRAVELY RED

$

$

Not available

3

Gravely 21901724

TAILGATE,ARNS,GRVLY RED

$

$

Not available

4

Gravely 21900644

SCR-TXPH-#14 X .75 HI-LO RIE

$

$

Not available

5

Gravely 21901311

BRKT.,TAILLIGHT MOUNT,RED

$

$

Not available

6

Gravely 21900217

BUMPER-BOX BASE

$

$

Not available

7

Gravely 21901759

TAILGATE CABLE

$

$

Not available

8

Gravely 21900390

BLT-SHLDR .188X.188X.25-20

$

$

Not available

9

Gravely 21901318

CAP, TAILGATE LATCH

$

$

Not available

10

Gravely 21901455

PIN-TAILGATE MOUNT

$

$

Not available

11

Gravely 21901327

BUSHING, TAILGATE LATCH

$

$

Not available

12

Gravely 21900897

ACTUATOR-BOX LIFT,SPLY

$

$

Not available

13

Gravely 21900870

SCR-TXTH-M6X1.0X25 RIE,SHDR

$

$

Not available

14

Gravely 21900912

FLARE-BOX,LH,ARIENS

$

$

Not available

15

Gravely 21901252

FLARE-BOX,RH,ARIENS

$

$

Not available

16

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

17

Gravely 21901458

BRKT-TAILGATE LATCH

$

$

Not available

18

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

19

Gravely 21901481

ROD, LATCH, LH

$

$

Not available

20

Gravely 21901482

ROD, LATCH, RH

$

$

Not available

21

Gravely 21901973

SHIELD, FRONT EXHAUST HEAT

Note: [IF BUILT AFTER 1/1/18]

$

$

Currently unavailable

22

Gravely 21901974

SHIELD, REAR EXHAUST HEAT

Note: [IF BUILT AFTER 1/1/18]

$

$

Currently unavailable

23

Gravely 21901309

SHIELD, HEAT EXHAUST MID

$

$

Not available

24

Gravely 21901317

BUMPER, TAILGATE

$

$

Not available

25

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

26

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

27

Gravely 21901334

CLIP, HITCH PIN

$

$

Not available

28

Gravely 21901335

PIN, CLEVIS

$

$

Not available

29

Gravely 21901336

PIN, CLEVIS BOX LIFT 2"

$

$

Not available

30

Gravely 21900409

SCR-M6X1X16 TR/TX-M

$

$

Not available

31

Gravely 21901451

BUSHING, TAILGATE PIVOT PIN

$

$

Not available

32

$

$

Not available

33

Gravely 21901725

TRIM,BOX

$

$

Not available

34

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

35

Gravely 21901360

CLIP, DASH TRIM METAL

$

$

Not available

36

$

$

Not available

37

Gravely 21901975

SHIELD, BED HEAT FOIL

$

$

Currently unavailable
