996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 180101 - 189999) Rear Suspension Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

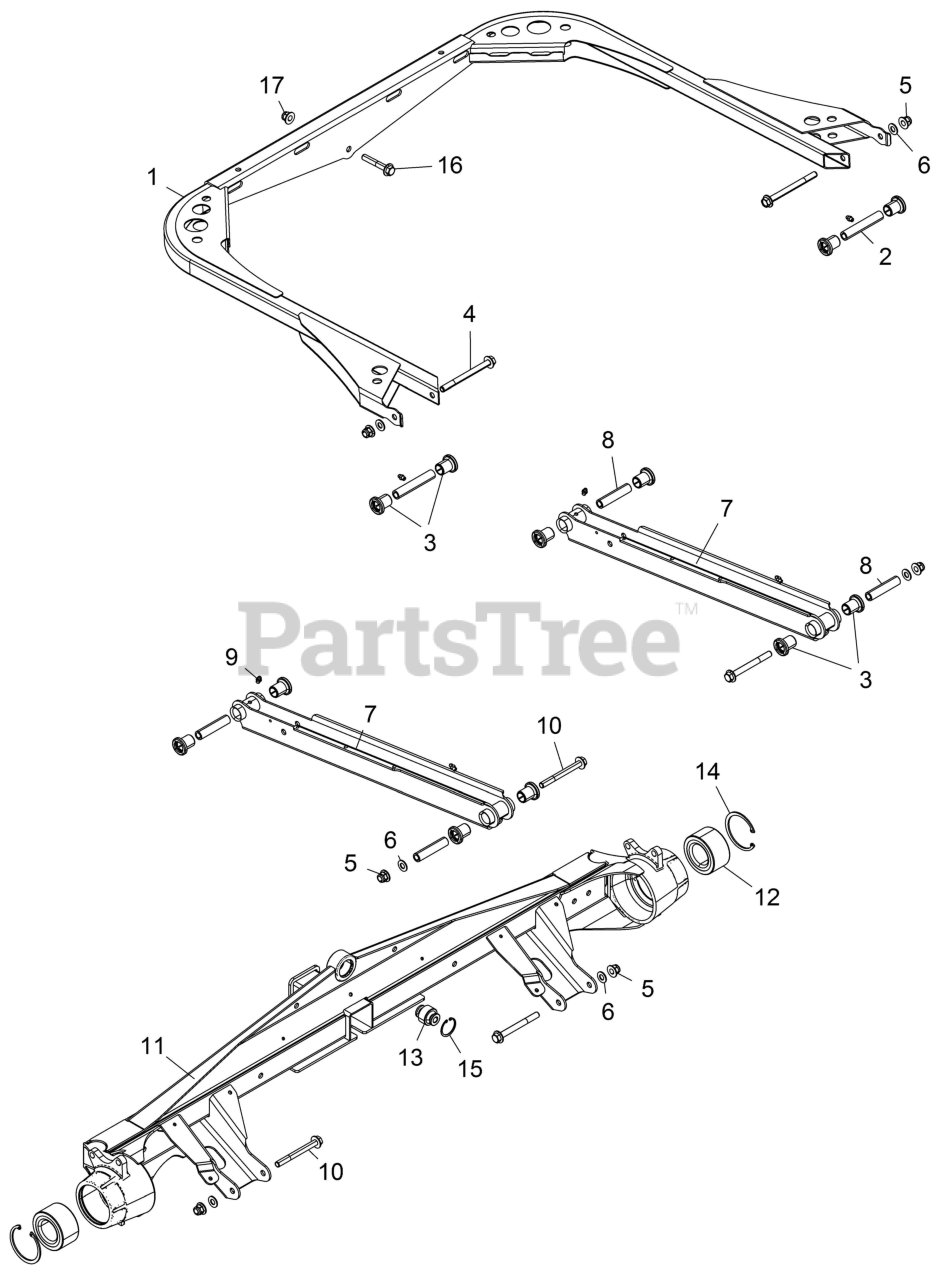

Rear Suspension Parts Diagram

  • Title
1

Gravely 21900527

WELD-UPPER LINK,M.BLK

$

$

Not available

2

Gravely 21900176

SHAFT-PIVOT,89.71MM,15.88OD

$

$

Not available

3

Gravely 21900271

BUSHING-STANDARD,ORV

$

$

Not available

4

Gravely 21900400

BOLT-M10X1.25X115,HXFLG-OLIVED

$

$

Not available

5

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

6

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

7

Gravely 21901893

WELD-LOWER LINK,BLK

$

$

Not available

8

Gravely 21900177

SHAFT-PIVOT,70.99MM,15.88OD

$

$

Not available

9

Gravely 21900329

FITTING, LUBRICATION

$

$

Not available

10

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

11

Gravely 21901892

WELD-REAR AXLE,BRACE,BLK

$

$

Not available

12

Gravely 21900002

BEARING, WHEEL

$

$

Not available

13

Gravely 21900322

BEARING-SPHERICAL LOWER 10MM

$

$

Not available

14

Gravely 21900512

RING,RETAINING

$

$

Not available

15

Gravely 21900514

RING-RETAINING,1.25 ID HSNG

$

$

Not available

16

Gravely 21900438

SCR-HXFL-M10X1.25X60 10.9 ZOD

$

$

Not available

17

Gravely 21900470

NUT-M10X1.5 HFN NYLOC ZOD

$

$

Not available
