996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 180101 - 189999) Engine Mounting Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

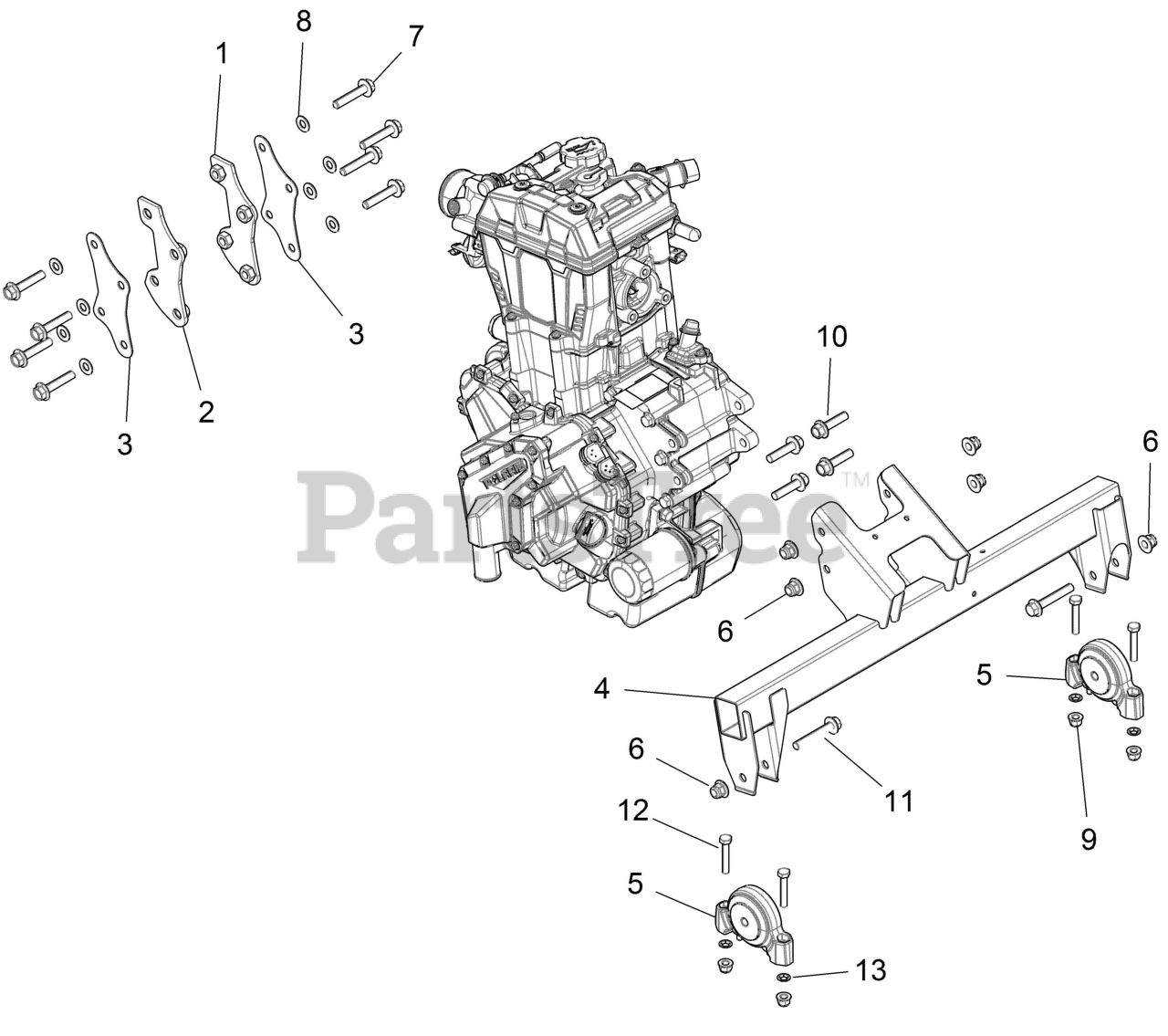

Engine Mounting Parts Diagram

  • Title
1

Gravely 21900016

WELD-TRANS,INNER,LEFT

$

$

Not available

2

Gravely 21900017

WELD-TRANS,INNER,RIGHT

$

$

Not available

3

Gravely 21900193

BRKT-COUPLER,TRANS,OUTER

$

$

Not available

4

Gravely 21900832

WELD-MOUNT,ENGINE,BLK

$

$

Not available

5

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

6

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7

Gravely 21900410

SCR-M10X1.5X50 8.8 HX/FL ZOD

$

$

Not available

8

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

9

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

10

Gravely 21900440

SCR-HXFL-M10X1.25X40 8.8 ZOD

$

$

Not available

11

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

12

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

13

$

$

Not available
