996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 170101 - 179999) Exhaust System Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

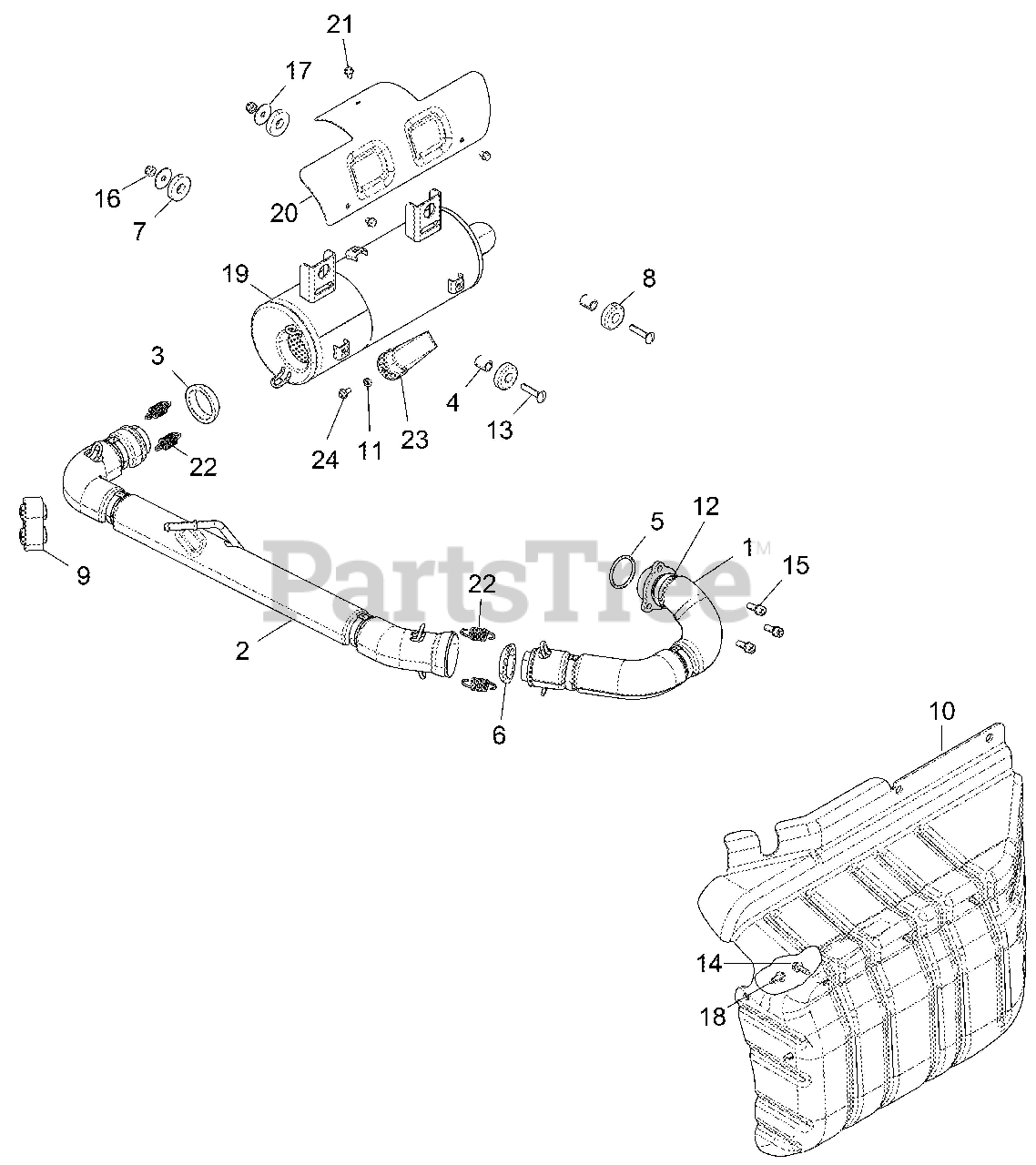

Exhaust System Parts Diagram

  • Title

1

Gravely 21901403

ASM., HEADPIPE, FRONT

Note: [INCL QTY 3 OF 26]

$

$

Not available

2

Gravely 21901402

ASM., HEADPIPE

Note: [INCL QTY 3 OF 26]

$

$

Not available

3

Gravely 21900135

SEAL-EXHAUST, SOCKET

$

$

Not available

4

Gravely 21900151

BUSHING

$

$

Not available

5

Gravely 21900190

GASKET-EXHAUST SEALING

$

$

Not available

6

Gravely 21900194

SEAL-EXHAUST

$

$

Not available

7

Gravely 21901316

WASHER, SILENCER MOUNT

$

$

Not available

8

Gravely 21900247

DAMPER-VIBRATION

$

$

Not available

9

Gravely 21900856

MOUNT-ISOLATOR

$

$

Not available

10

Gravely 21901872

SHIELD-HEAT,FOIL,FULL,RGR

$

$

Not available

11

Gravely 21901361

NUT

$

$

Not available

12

Gravely 21900341

CLAMP, HEAT SHIELD, EXHAUST

$

$

Not available

13

Gravely 21900437

SCR-CAR M8X1.25 40 8.8 ZOD

$

$

Not available

14

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

15

Gravely 21900412

SCR-M8X1.25X22,HX/SO

$

$

Not available

16

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

17

Gravely 21900476

WASHER

$

$

Not available

18

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

19

Gravely 21901343

ASM., SILENCER

Note: [INCL. 20-21, 23-24,11]

$

$

Not available

20

Gravely 21900899

SHIELD-SILENCER

$

$

Not available

21

Gravely 21900372

SCREW(10)

$

$

Not available

22

Gravely 21900308

SPRING

$

$

Not available

23

Gravely 21901405

ARRESTOR, SPARK

$

$

Not available

24

Gravely 21900377

SCREW,HXFLGHD,M6X12

$

$

Not available
