996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 170101 - 179999) Electrical Harness Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

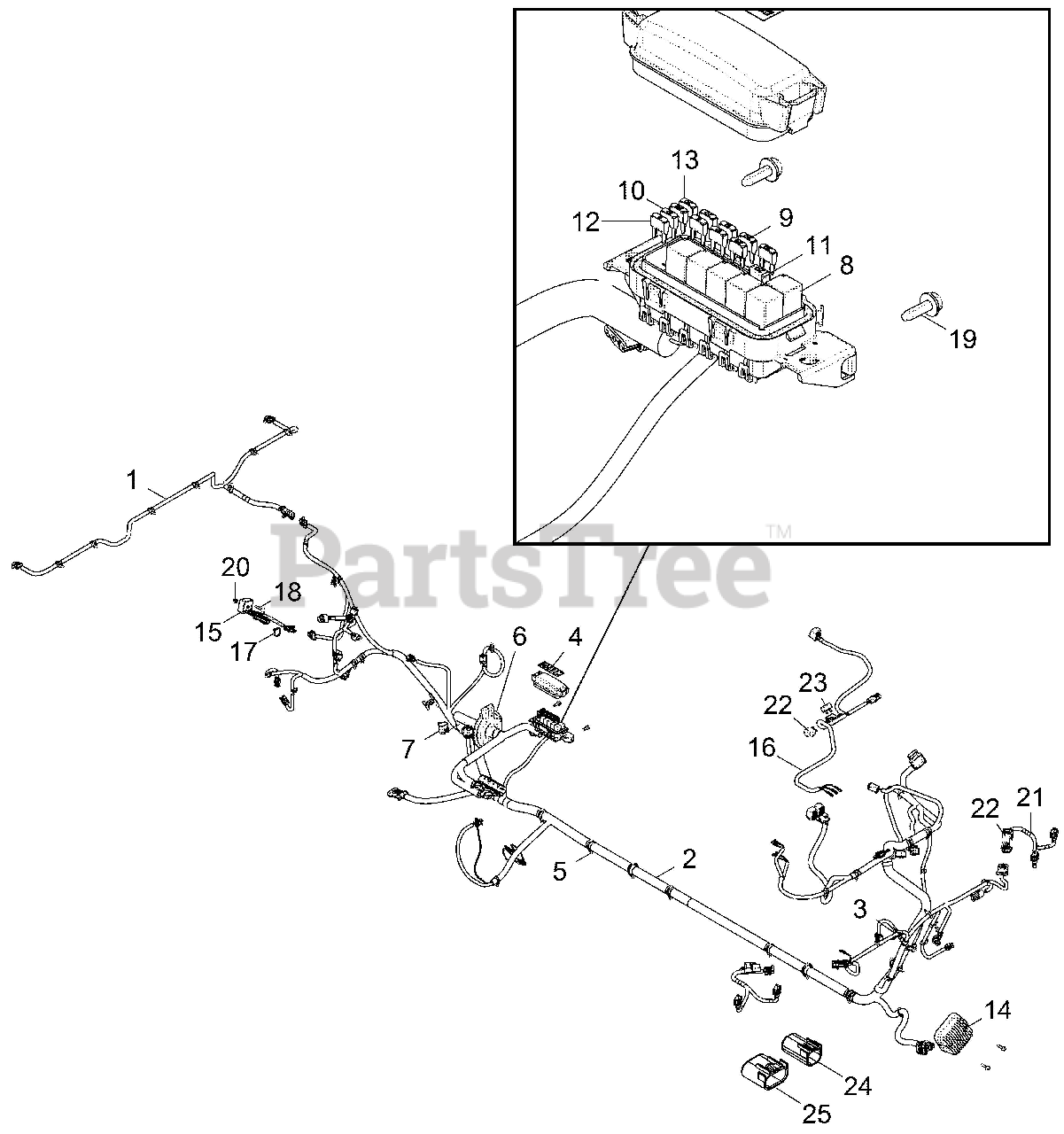

Electrical Harness Parts Diagram

  • Title

1

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

2

Gravely 21901841

HARNESS, CHASSIS, 570 CREW EPS

Note: [INCL. 3-13]

$

$

Not available

3

Gravely 21901419

CABLE TIE

$

$

Not available

4

Gravely 21901429

DECAL, RELAY/FUSE BLOCK

$

$

Not available

5

Gravely 21900348

CLIP-ROUTING

$

$

Not available

6

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

7

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8

Gravely 21900624

RELAY-SPST,SERIES 303,SEALED

$

$

Not available

9

Gravely 21901842

FUSE, 20 AMP, PARK

$

$

Not available

10

Gravely 21900651

FUSE,IGN.10 AMP,(10)

$

$

Not available

11

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

12

Gravely 21900749

FUSE-5A,MINI BLADE

$

$

Not available

13

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

14

Gravely 21901861

REGULATOR-3PH,50A,SERIES,HISPD

$

$

Not available

15

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

16

Gravely 21900934

HARNESS-BOX,LIFT

Note: [INCL. QTY. 1 OF 22,23]

$

$

Not available

17

Gravely 21900324

CABLE TIE (10)

$

$

Not available

18

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

19

Gravely 21900442

SCR-TFHFL-M6X1.0X25,ZOD

$

$

Not available

20

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

21

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

Note: [INCL. QTY. 1 OF 22]

$

$

Not available

22

Gravely 21901211

RELAY-MICRO,SPST,35A,SEALED

$

$

Not available

23

Gravely 21900933

BREAKER-CIRCUIT,20 AMP,SEALED

$

$

Not available

24

Gravely 21901859

CONNECTOR-CAP,EPS SIGNAL

$

$

Not available

25

Gravely 21901860

CONNECTOR-CAP,EPS POWER

$

$

Not available
