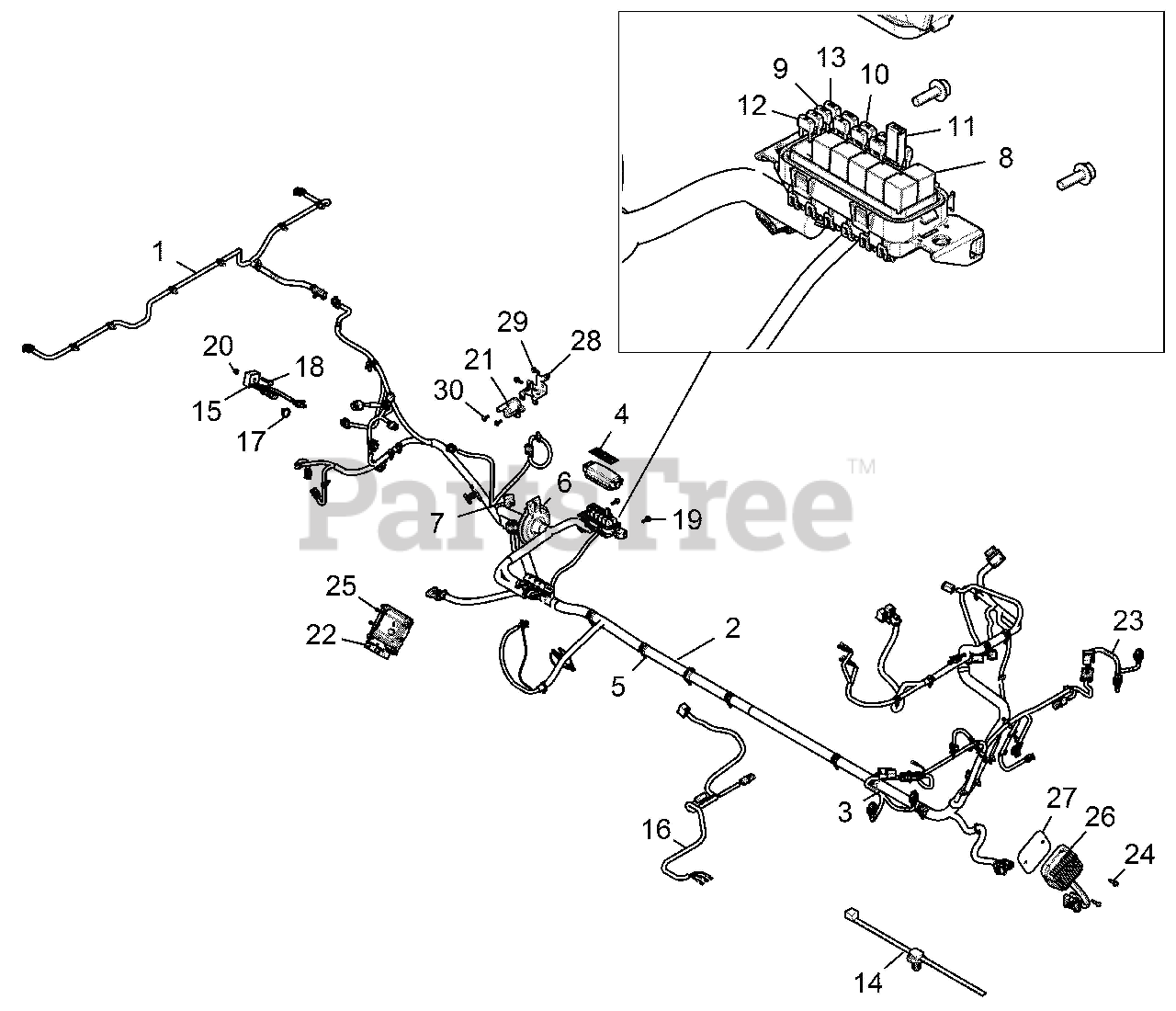

996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Wire Harness Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

Wire Harness Parts Diagram

  • Title
1.

Gravely 21900887

HARNESS-BOX-ARIENS SPLY

$

$

Not available

2.

Gravely 21901401

HARNESS, CHASSIS, 570 CREW EPS

Note: [ref. 3 -13]

$

$

Not available

3.

Gravely 21901419

CABLE TIE

$

$

Not available

4.

$

$

Not available

5.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

6.

Gravely 21900809

GROMMET-CHASSIS HARNESS

$

$

Not available

7.

Gravely 21900736

COVER-DIAGNOSTIC,W/CLIP

$

$

Not available

8.

Gravely 21900624

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

9.

$

$

Not available

10.

Gravely 21900651

FUSE,IGN.10 AMP,(10)

$

$

Not available

11.

Gravely 21900679

BREAKER-CIRCUIT,20 AMP

$

$

Not available

12.

Gravely 21901543

SWITCH-HORN

$

$

Not available

13.

Gravely 21900664

FUSE,MAIN,30 AMP,(10)

$

$

Not available

14.

Gravely 21900348

CLIP-ROUTING

$

$

Not available

15.

Gravely 21900143

RELAY, SOLID STATE,9A,LONG LD

$

$

Not available

16.

Gravely 21900934

HARNESS-BOX,LIFT

$

$

Not available

17.

Gravely 21900324

CABLE TIE (10)

$

$

Not available

18.

Gravely 21900402

BOLT-M6X1.0X35,HXFLG/SH-OLV D

$

$

Not available

19.

Gravely 21900420

SCR-HXFL-M6X1.0X20 8.8 RIE

$

$

Not available

20.

Gravely 21900467

NUT-M6X1.0,FLG-NYLOC-OLIVE D

$

$

Not available

21.

Gravely 21900139

COIL-IGNITION,500EFI

$

$

Not available

22.

Gravely 21900147

ECM-NO START,ME17

$

$

Not available

23.

Gravely 21900888

HARNESS-HEADLIGHT,ARIENS

$

$

Not available

24.

Gravely 21900442

SCR-TFHFL-M6X1.0X25,ZOD

$

$

Not available

25.

Gravely 21900418

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

$

$

Not available

26.

Gravely 21900145

REGULATOR-3PH,50A,SERIES,HISPD

$

$

Not available

27.

Gravely 21900188

COVER-VOLTAGE REGULATOR

$

$

Not available

28.

Gravely 21900855

BRKT-AIRBOX MOUNT

$

$

Not available

29.

Gravely 21900388

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

$

$

Not available

30.

Gravely 21900388

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

$

$

Not available
