996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Front Suspension Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

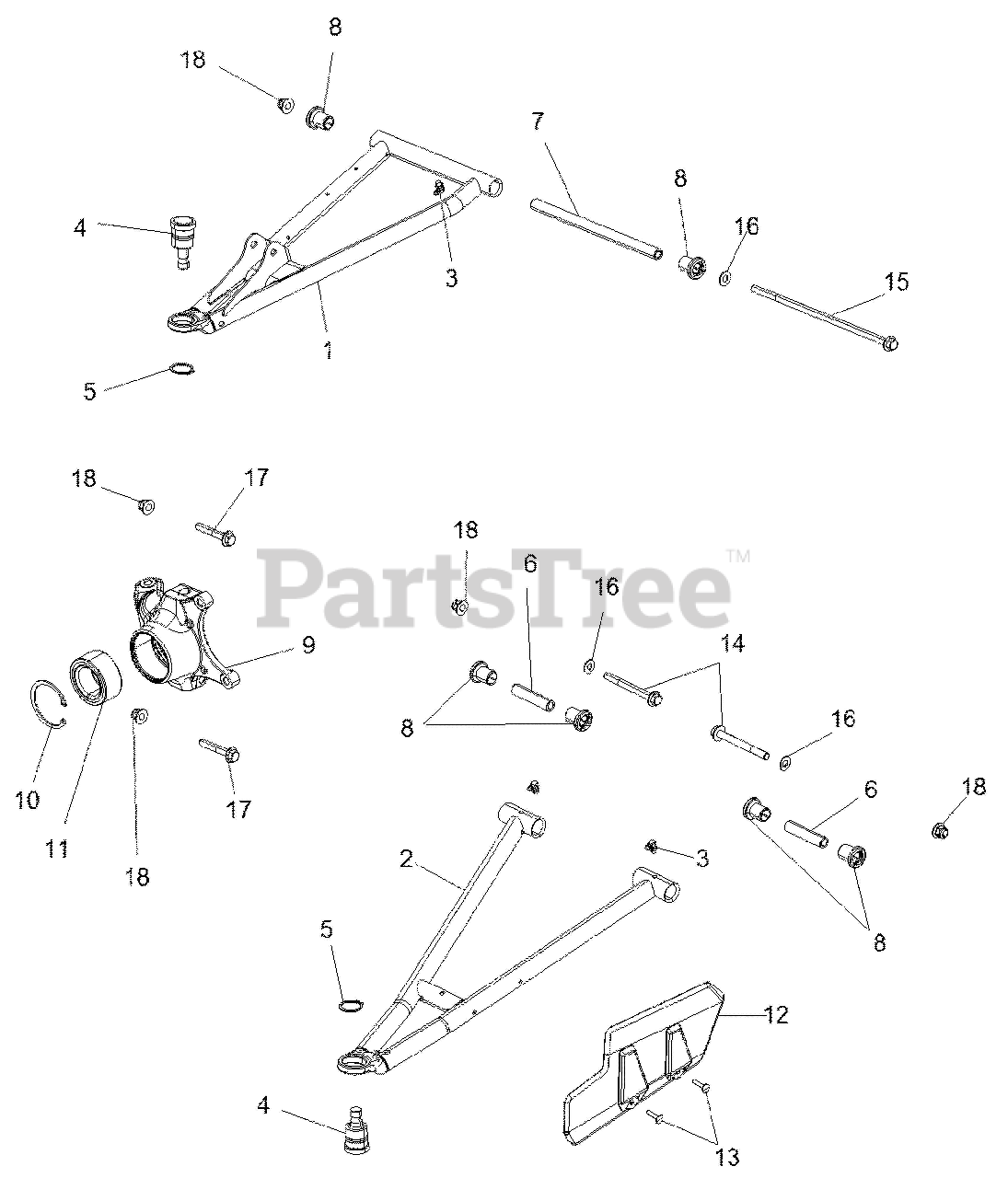

Front Suspension Parts Diagram

  • Title

1.

Gravely 21900833

WELD-A-ARM,FR,UPR,LH,BLK

$

$

Not available

1.

Gravely 21900834

WELD-A-ARM,FR,UPR,RH,BLK

$

$

Not available

2.

Gravely 21900530

WELD-A-ARM,FR,LWR,LH,M.BLK

$

$

Not available

2.

Gravely 21900531

WELD-A-ARM,FR,LWR,RH,M.BLK

$

$

Not available

3.

Gravely 21900335

FITTING, ZERK,90 DEGREE

$

$

Not available

4.

Gravely 21900357

BALL-JOINT,10MM STUD

$

$

Not available

5.

Gravely 21900513

RING-RETAINER,EXTERNAL,1.188

$

$

Not available

6.

Gravely 21900177

SHAFT-PIVOT,70.99MM,15.88OD

$

$

Not available

7.

Gravely 21900175

SHAFT-PIVOT,250.28MM,15.88OD

$

$

Not available

8.

Gravely 21900271

BUSHING-STANDARD,ORV

$

$

Not available

9.

Gravely 21901751

CARRIER, BEARING, FRONT, LH

Note: [BUILT 9/23/14 AND AFTER]

$

$

Not available

9.

Gravely 21901752

CARRIER, BEARING, FRONT, RH

Note: [BUILT 9/23/14 AND AFTER]

$

$

Not available

10.

Gravely 21901424

RING, RETAINING, INTERNAL

$

$

Not available

11.

Gravely 21900131

BEARING-BALL,SEALED,44X72X33.1

$

$

Not available

12.

Gravely 21900562

SHIELD-CV,FRONT,LH,BLK

$

$

Not available

12.

Gravely 21900563

SHIELD-CV,FRONT,RH,BLK

$

$

Not available

13.

Gravely 21900497

RIVET(50) *

$

$

Not available

14.

Gravely 21900413

SCR-HXFL-M10X1.25X95 10.9 ZOD

$

$

Not available

15.

Gravely 21900417

SCR-HXFL-M10X1.25X275 10.9 ZOD

$

$

Not available

16.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

17.

Gravely 21901477

SCR-HXFL-M10X1.5X65 10.9 RIE

$

$

Not available

18.

Gravely 21900470

NUT-M10X1.5 HFN NYLOC ZOD

$

$

Not available
