996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Engine And Transmission Mounting Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

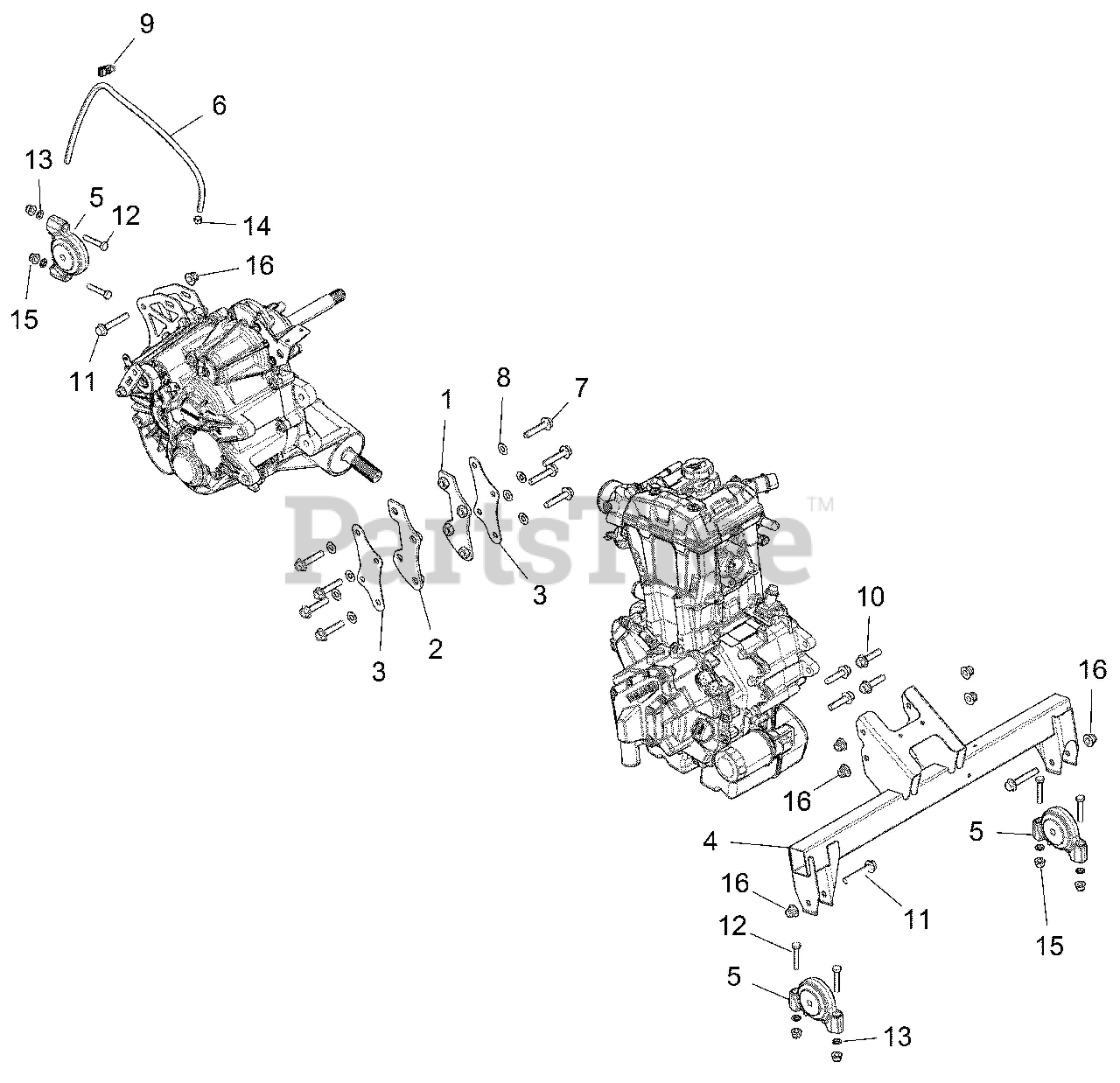

Engine And Transmission Mounting Parts Diagram

  • Title
1.

Gravely 21900016

WELD-TRANS,INNER,LEFT

$

$

Not available

2.

Gravely 21900017

WELD-TRANS,INNER,RIGHT

$

$

Not available

3.

Gravely 21900193

BRKT-COUPLER,TRANS,OUTER

$

$

Not available

4.

Gravely 21900832

WELD-MOUNT,ENGINE,BLK

$

$

Not available

5.

Gravely 21900038

MOUNT-ISOLATOR,DRIVELINE

$

$

Not available

6.

Gravely 21901706

LINE, FUEL

$

$

Not available

7.

Gravely 21900410

SCR-M10X1.5X50 8.8 HX/FL ZOD

$

$

Not available

8.

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

9.

Gravely 21900352

STRAP-CABLE TIE W/EDGE CLIP

$

$

Not available

10.

Gravely 21900440

SCR-HXFL-M10X1.25X40 8.8 ZOD

$

$

Not available

11.

Gravely 21900399

BOLT-M10X1.25X60,HXFLG-OLIVE D

$

$

Not available

12.

Gravely 21900419

SCR-HH M8X1.25X45 8.8 ZOD

$

$

Not available

13.

$

$

Not available

14.

Gravely 21900326

CLAMP,HOSE(10)

$

$

Not available

15.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

16.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available
