996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Cab Frame Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

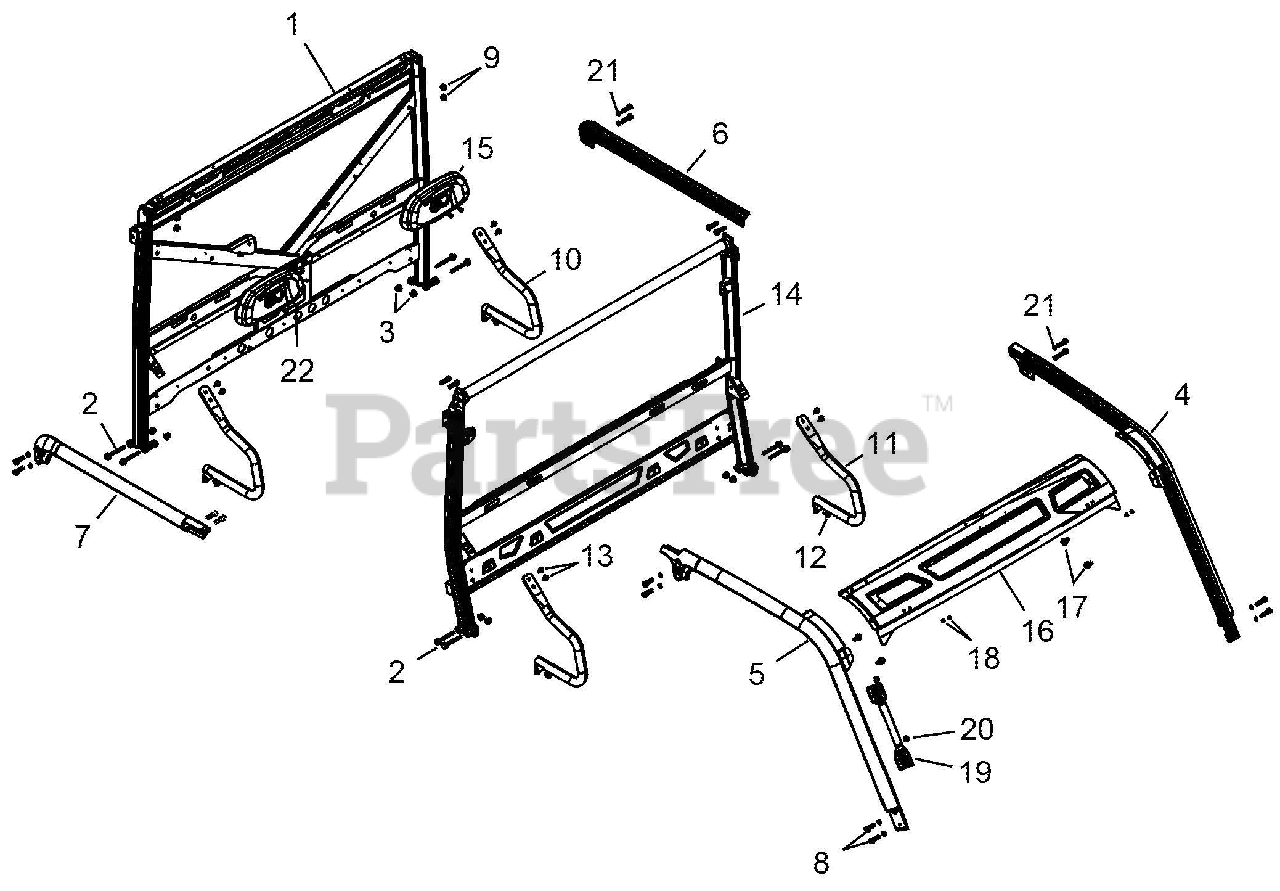

Cab Frame Parts Diagram

  • Title

1.

Gravely 21901463

WELD-CAB FRAME,REAR,BLK

$

$

Not available

2.

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

3.

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

4.

Gravely 21900535

WELD-CAB FRAME,FRT,LH,BLK

$

$

Not available

5.

Gravely 21900536

WELD-CAB FRAME,FRT,RH,M.BLK

$

$

Not available

6.

Gravely 21900539

WELD-CAB FRAME,REAR,LH,M.BLK

$

$

Not available

7.

Gravely 21900540

WELD-CAB FRAME,REAR,RH,M.BLK

$

$

Not available

8.

Gravely 21900453

SCR-SH-M10X1.5X35 8.8 ZPB

$

$

Not available

9.

Gravely 21900462

NUT-NYLOC M10X1.5,REF

$

$

Not available

10.

Gravely 21901464

TUBE-HIP BOLSTER,BLK

$

$

Not available

11.

Gravely 21901490

BOLSTER, HIP FRONT MATTE BLACK

$

$

Not available

12.

Gravely 21900422

SCR-HXFL-M8X1.25X20 8.8 ZOD P3

$

$

Not available

13.

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

14.

Gravely 21901262

WELD-CAB FRAME,CENTER 6 PASS

$

$

Not available

15.

Gravely 21900915

HEADREST-GRAVELY,GRAY

$

$

Not available

16.

Gravely 21900548

PLATE-WINDSHIELD MNT,UP,M.BLK

$

$

Not available

17.

Gravely 21900391

BOLT-M10X1.5X20,HXFLG,W/PATCH

$

$

Not available

18.

Gravely 21900511

PLUG-FENDER, REAR

$

$

Not available

19.

Gravely 21900576

HANDLE-GRAB,ROPS,BLK

$

$

Not available

20.

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

21.

Gravely 21900482

WASHER

$

$

Not available

22.

Gravely 21900496

RIVET(50)

$

$

Not available
