996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 160100 - 170100) Air Intake System Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

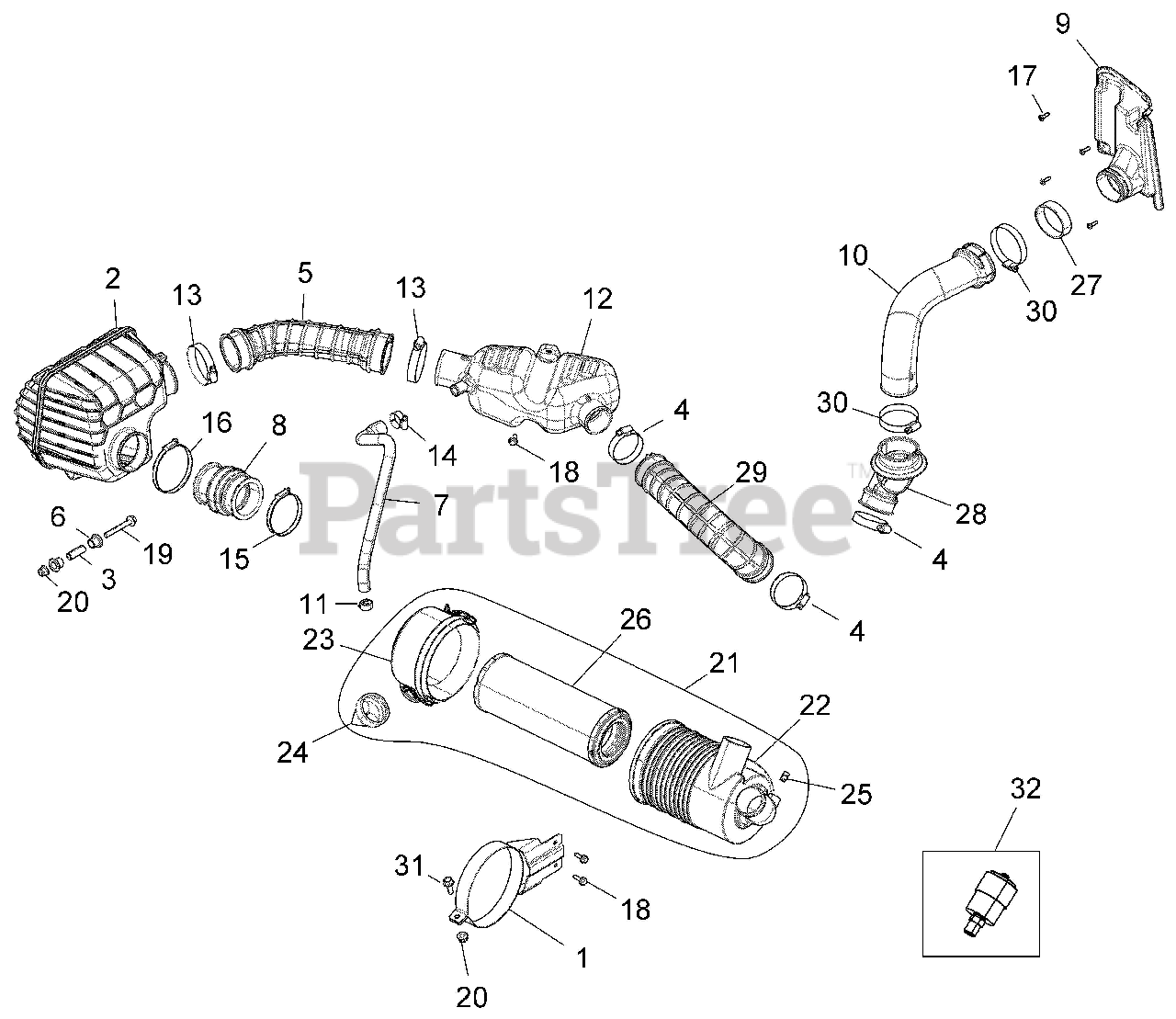

Air Intake System Parts Diagram

  • Title
1.

Gravely 21900877

WELD-AIRBOX,MOUNT

$

$

Not available

2.

Gravely 21900836

WELD-INTAKE,PLENUM

$

$

Not available

3.

Gravely 21900180

SHAFT-COMPRESSION LMTR,34.4MM

$

$

Not available

4.

Gravely 21900332

CLAMP, HOSE, S.S.(10)

$

$

Not available

5.

Gravely 21900235

HOSE-INTAKE,ENG

$

$

Not available

6.

Gravely 21900244

BUSHING-MOUNT

$

$

Not available

7.

Gravely 21900862

HOSE-VENT,ENG

$

$

Not available

8.

Gravely 21900863

BOOT-THROTTLE BODY

$

$

Not available

9.

Gravely 21900559

INTAKE-FENDER,REAR,BLK

$

$

Not available

10.

Gravely 21900272

DUCT-INTAKE,AIR

$

$

Not available

11.

Gravely 21901354

CLAMP, HOSE, SPRING

$

$

Not available

12.

Gravely 21900913

DUCT-INTAKE,ENG

$

$

Not available

13.

Gravely 21900331

CLAMP-HOSE, 2.75"-SS

$

$

Not available

14.

Gravely 21900336

CLAMP,HOSE

$

$

Not available

15.

Gravely 21900338

CLAMP,BAND,NARROW (10)

$

$

Not available

16.

Gravely 21900343

CLAMP-BAND,NARROW 70-90MM

$

$

Not available

17.

Gravely 21900389

SCR-10X5/8-HI/LO,PN-T25,TRX-M

$

$

Not available

18.

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

19.

Gravely 21900436

SCR-HXFL-M8X1.25X60 8.8 ZOD

$

$

Not available

20.

Gravely 21900464

NUT-M8X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

21.

Gravely 21901404

ASM., AIR INTAKE

Note: [INCL. 22-26]

$

$

Not available

22.

Gravely 21901290

ASM., AIRBOX, MAIN

$

$

Not available

23.

Gravely 21900031

ASM-LID,AIRBOX

$

$

Not available

24.

Gravely 21900238

VALVE-AIRBOX

$

$

Not available

25.

Gravely 21900270

PLUG-AIRBOX

$

$

Not available

26.

$

$

Not available

27.

Gravely 21900240

HOSE-INTAKE,BOOT

$

$

Not available

28.

Gravely 21900902

HOSE-INTAKE,AIR BOX,SPLY

$

$

Not available

29.

Gravely 21900903

HOSE-AIR BOX,SPLY

$

$

Not available

30.

Gravely 21900330

CLAMP, HOSE

$

$

Not available

31.

Gravely 21900392

BOLT-M8X1.25X25,HXFLG-OLIVE D

$

$

Not available

32.

Gravely 21901346

KIT, FILTER, INDICATOR

Note: [OPT]

$

$

Not available
