996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 150101 - 159999) Primary Clutch Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

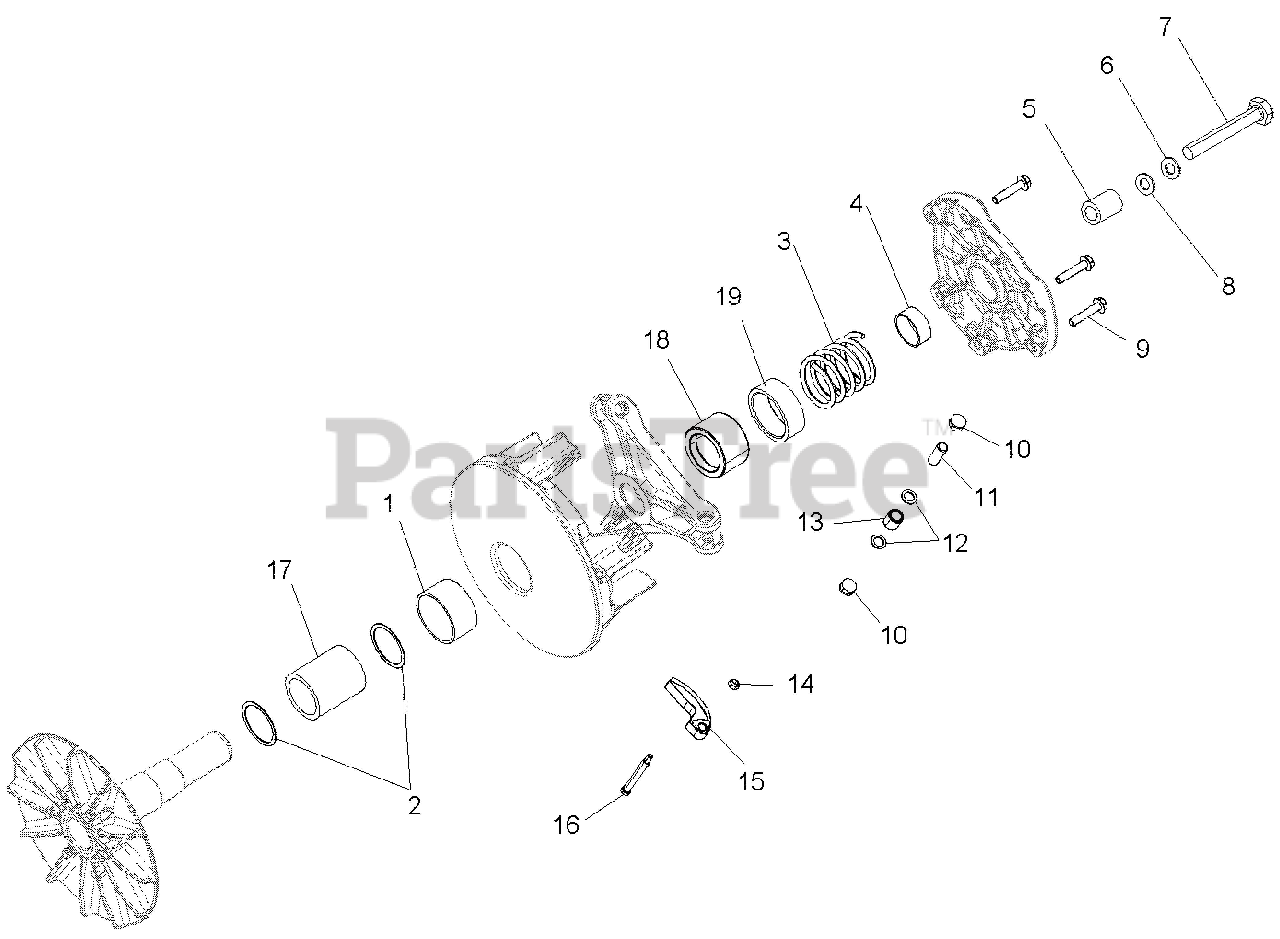

Primary Clutch Parts Diagram

  • Title

Gravely 21900034

ASM-DRIVE CLUTCH,BASIC,BEARING

Note: [INCL. ALL LESS 3,5-8,15,19][IF BUILT BEFORE 8/4/15]

$

$

Not available

Gravely N/A

ASM-DRIVE CLUTCH,BASIC,BEARING

Note: [INCL. ALL LESS 3,5-8,15,19][IF BUILT AFTER 8/5/15]

$

$

Currently unavailable

1.

Gravely 21900126

BEARING-DU,1.75ID

$

$

Not available

2.

Gravely 21900487

WASHER-CLUTCH,VESPEL

$

$

Not available

3.

Gravely 21900310

SPRING-CLUTCH, 35-240

$

$

Not available

4.

Gravely 21900128

BEARING COVER, .75IN

$

$

Not available

5.

Gravely 21900249

BUSHING

$

$

Not available

6.

Gravely 21900494

WASHER LOCK

$

$

Not available

7.

Gravely 21900435

BOLT-CLUTCH ATV,7/16X20X8

$

$

Not available

8.

Gravely 21900183

WASHER(10) *

$

$

Not available

9.

Gravely 21900386

SCR-1/4-20X1.25 HX/FL GR5

$

$

Not available

10.

Gravely 21900267

BUTTON,CLUTCH,RUBBER BACKED

$

$

Not available

11.

Gravely 21900152

PIN-ROLLER,(10)

$

$

Not available

12.

Gravely 21900255

WASHER-CLUTCH,SPIDER ROLLER

$

$

Not available

12.

Gravely 21901362

WASHER

Note: [OPTIONAL AR]

$

$

Not available

13.

Gravely 21900033

ROLLER/BUSHING ASM.(3) **

$

$

Not available

14.

Gravely 21900456

NUT FLEXLOC(10)

$

$

Not available

15.

Gravely 21900281

WEIGHT-SHIFT,25-52G,PM

$

$

Not available

16.

Gravely 21900371

BOLT,SHOULDER(10)

$

$

Not available

17.

Gravely 21900127

BEARING-NEEDLE

$

$

Not available

18.

Gravely 21900280

SPACER-CLUTCH,PM

Note: [IF BUILT BEFORE 8/4/15]

$

$

Not available

18.

Gravely 21901471

SPACER-CLUTCH

Note: [IF BUILT AFTER 8/5/15]

$

$

Not available

19.

Gravely 21900257

SPACER-CLUTCH,LIMITER

$

$

Not available
