996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 150101 - 159999) Front Caliper Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

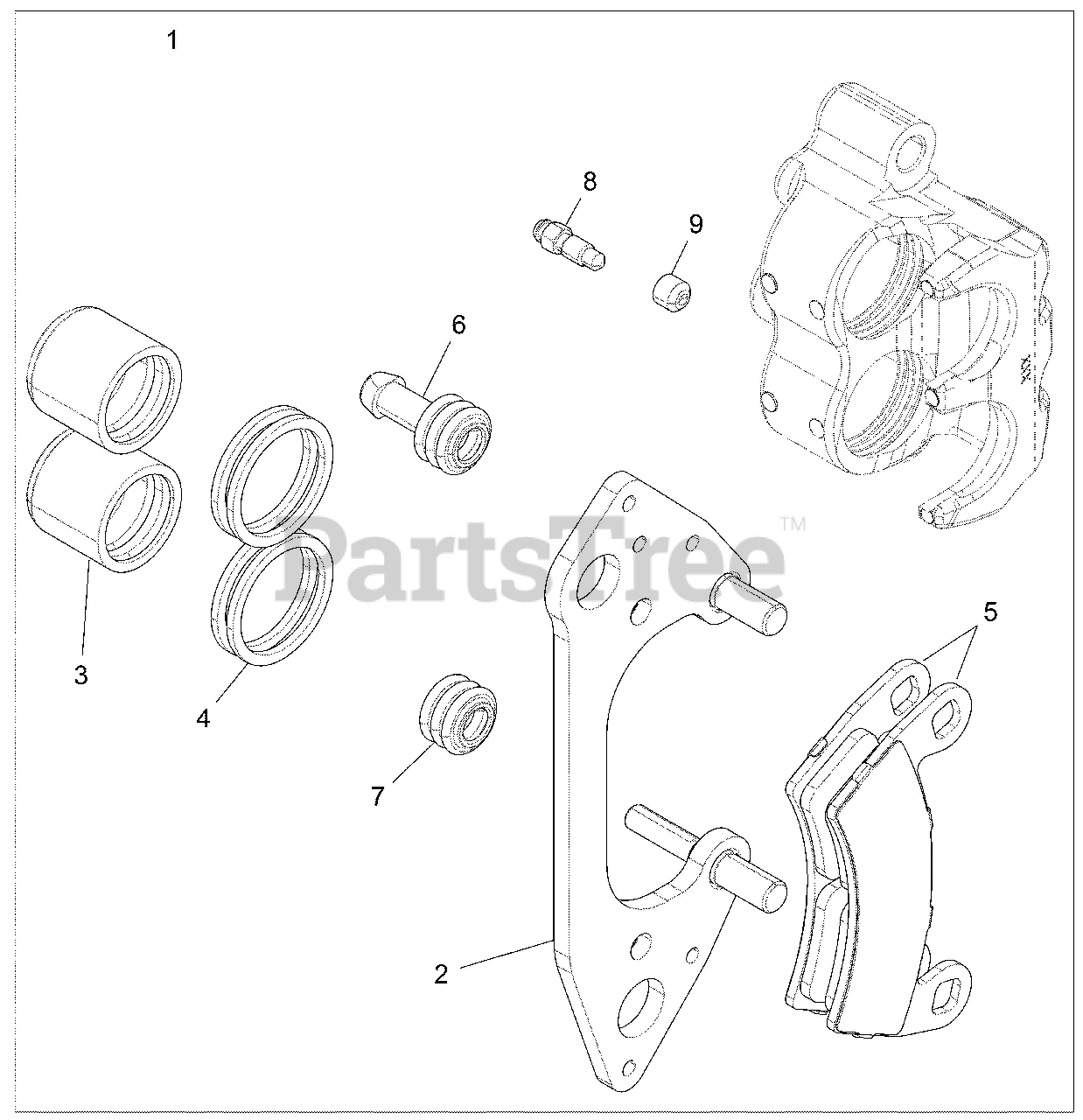

Front Caliper Parts Diagram

  • Title
1.

Gravely 21900065

ASM-BRK-CAL-L-DB1-3/8-GROOVED

$

$

Not available

1.

Gravely 21900066

ASM-BRK-CAL-R-DB1-3/8-GROOVED

$

$

Not available

2.

Gravely 21900054

ASM-CAL/MNT,DB,1-3/8,METRIC

Note: [IF BUILT BEFORE 4/1/15]

$

$

Not available

2.

Gravely 21901462

ASM., CALIPER, MOUNT, FRONT

Note: [IF BUILT AFTER 4/2/15]

$

$

Not available

3.

Gravely 21900173

PISTON-BRAKE,1.375,AL,GROOVED

$

$

Not available

4.

Gravely 21900222

SEAL-CALIPER,INNER,1.375"

$

$

Not available

5.

Gravely 21900618

KIT, BRAKE PAD ASM.

Note: [INCL. 2 PADS]

$

$

Not available

6.

Gravely 21900219

BOOT-PIN BUSHING

$

$

Not available

7.

Gravely 21900220

BOOT-PIN SEAL

$

$

Not available

8.

Gravely 21900345

SCR-M7X1.0,BLEEDER,OLIVE D

$

$

Not available

9.

Gravely 21900408

SCR-M10X1.0X8,SOC SET-OD

$

$

Not available
