996201 (JSV 6000) - Gravely Atlas JSV Utility Vehicle, Crew Cab, Gas (SN: 150101 - 159999) Battery Parts Diagram

Atlas JSV Utility Vehicle, Crew Cab, Gas

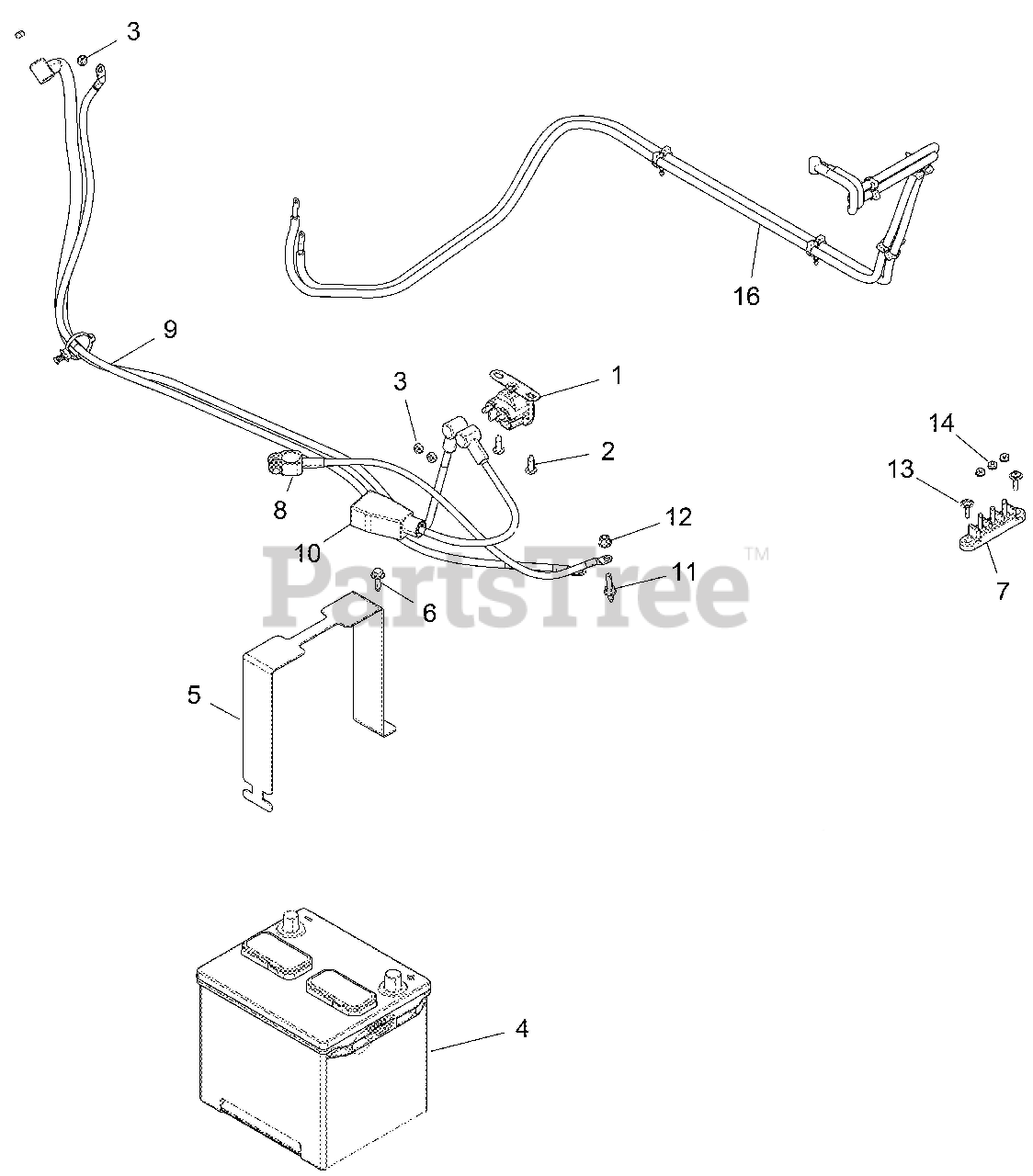

Battery Parts Diagram

  • Title
1

Gravely 21900667

SOLENOID-STARTER,SEALED

$

$

Not available

2

Gravely 21900414

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

$

$

Not available

3

Gravely 21900459

NUT,NYLOK(10)

$

$

Not available

4

Gravely 21900148

BATTERY-575 CCA,FLOODED,FILLED

$

$

Not available

5

Gravely 21900199

BRKT-BATTERY STRAP GALV

$

$

Not available

6

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

7

Gravely 21900140

BLOCK-TERMINAL,3 POST

$

$

Not available

8

Gravely 21900846

CABLE-BAT TO GND

$

$

Not available

9

Gravely 21900847

CABLE-START TO SOLENOID

$

$

Not available

10

Gravely 21900848

CABLE-BATTERY TO SOLENOID

$

$

Not available

11

Gravely 21900441

STUD-M6X1.0X19-M6 TAPTITE

$

$

Not available

12

Gravely 21900463

NUT-M6 FLANGE,NYLOK

$

$

Not available

13

Gravely 21900388

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

$

$

Not available

14

Gravely 21900468

NUTS-10-32 KEPS

$

$

Not available

15

Gravely 21901269

DECAL, BATTERY

Note: NOT SHOWN

$

$

Not available

16

Gravely 21901412

CABLE, TERMINAL BLOCK

$

$

Not available
