996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Thermostat And Cover Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

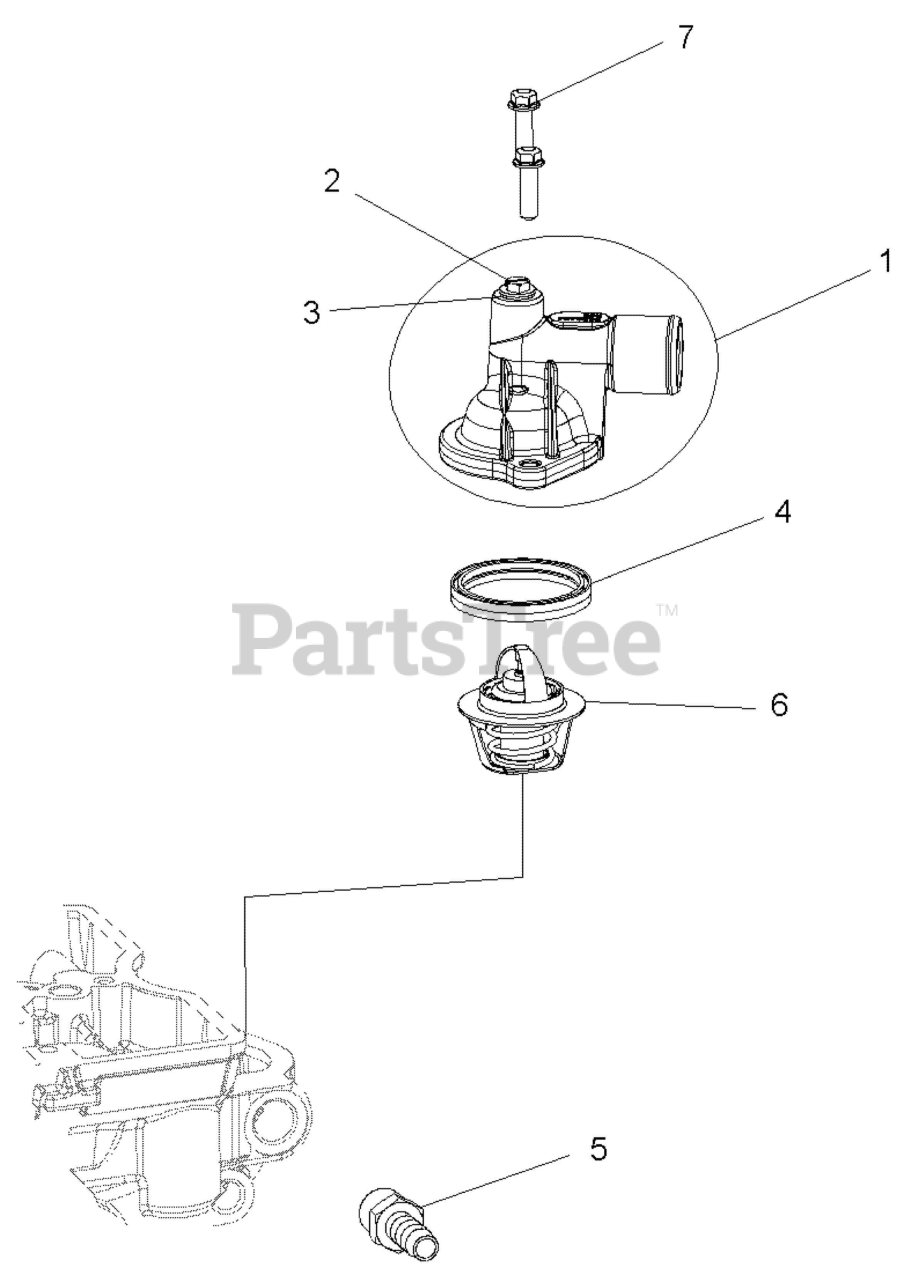

Thermostat And Cover Parts Diagram

  • Title
1

Gravely 21900019

ASM-THERMOSTAT COVER W/BLEED

Note: [INCL. 2,3]

$

$

Not available

1

Gravely 21900163

COVER-THERMOSTAT,ANGLED,MACH

$

$

Not available

2

Gravely 21900432

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

$

$

Not available

3

Gravely 21900490

WASHER-FLAT

$

$

Not available

4

Gravely 21900228

SEAL-THERMOSTAT

$

$

Not available

5

Gravely 21900321

FITTING-3/8NPTFX1/2 HOSE BARB

$

$

Not available

6

Gravely 21900318

THERMOSTAT-44M FLANGE,180F

$

$

Not available

7

Gravely 21900401

SCR-M6X20,HXFLG,0600214

$

$

Not available
