996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Rear Shock Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

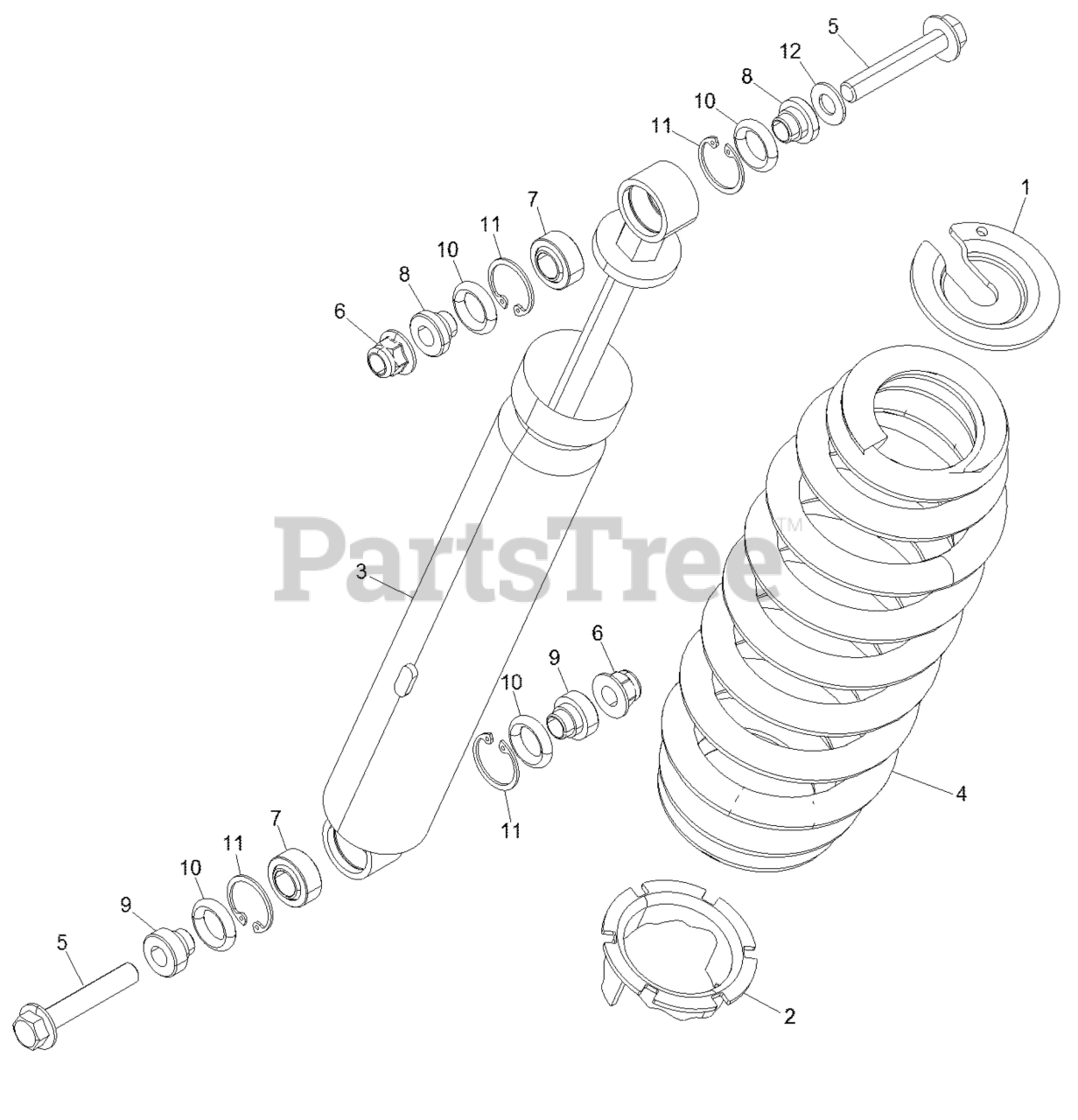

Rear Shock Parts Diagram

  • Title
1

Gravely 21900187

RETAINER-SPRING,STEEL

$

$

Not available

2

Gravely 21900189

CAM-ADJUSTING,SPRING,STEEL

$

$

Not available

3

Gravely 21901875

SHOCK-REAR

$

$

Not available

4

Gravely 21900578

SPRING-350#,M.BLK

$

$

Not available

5

Gravely 21900438

SCR-HXFL-M10X1.25X60 10.9 ZOD

$

$

Not available

6

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

7

Gravely 21900046

BEARING-SPERICAL,SHOCK

$

$

Not available

8

Gravely 21900167

BUSHING-REDUCER,.500X.398,ZYW

$

$

Not available

9

Gravely 21900167

BUSHING-REDUCER,.500X.398,ZYW

$

$

Not available

10

Gravely 21900216

O-RING,0.600IDX.210

$

$

Not available

11

Gravely 21900517

RING-RETAINING,1.00 ID

$

$

Not available

12

Gravely 21900486

WASHER,3/8 FW

$

$

Not available
