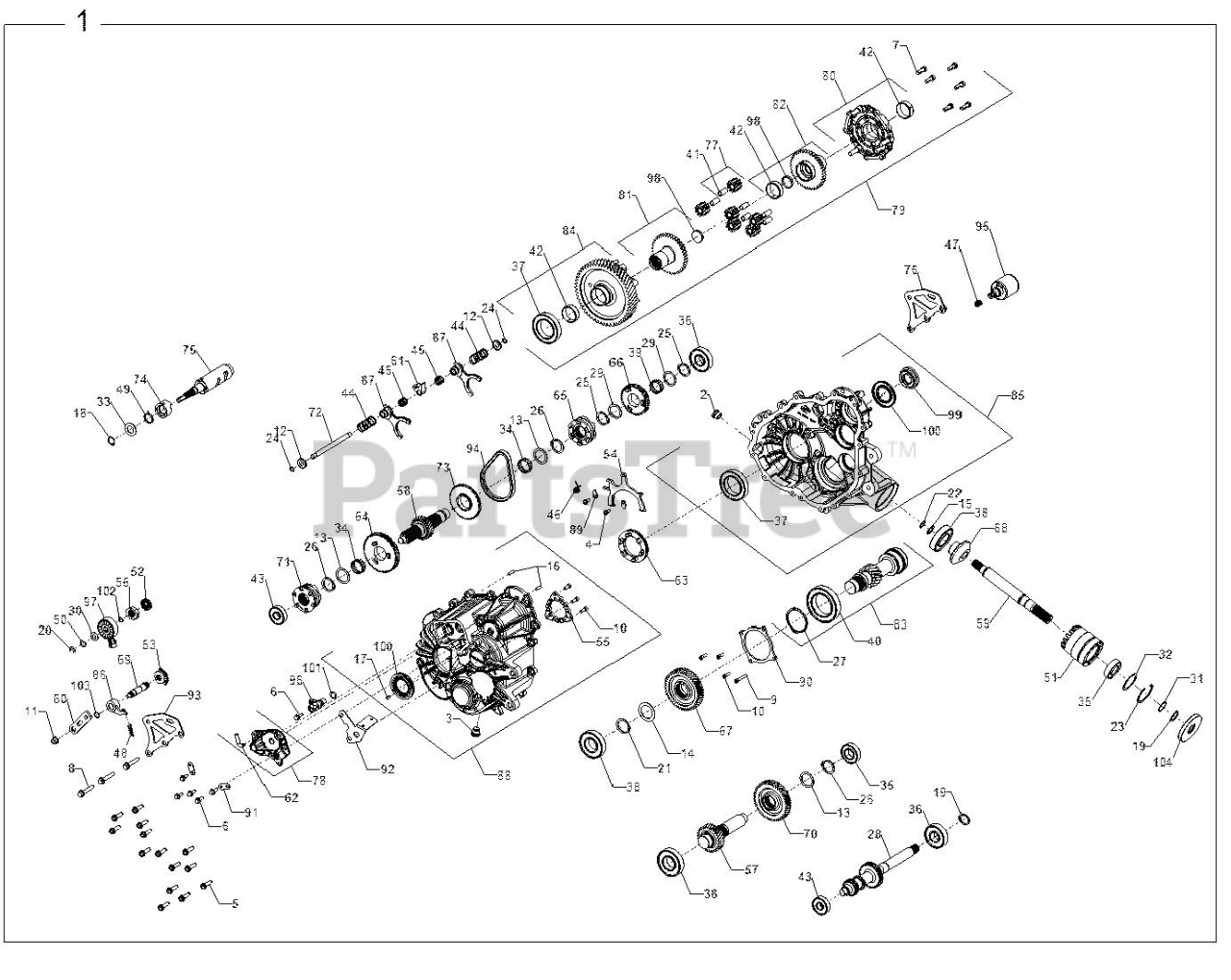

996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Main Gearcase Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

Main Gearcase Parts Diagram

  • Title

1

Gravely 21901825

ASM-GEARCASE,570,RGR

Note: W/REF. ALL

$

$

Not available

2

Gravely 21900693

PLUG-SKT HD 1SO 6149,M18 X 1.5

$

$

Not available

3

Gravely 21900683

PLUG-SOCKET HEAD W/MAG,M18X1.5

$

$

Not available

4

Gravely 21900780

SCREW, TORX PAN HD M6 X 1 X 16

$

$

Not available

5

Gravely 21900687

SCREW-HEXFLANGEHEAD,M8X1.25X30

$

$

Not available

6

Gravely 21900730

SCREW

$

$

Not available

7

Gravely 21900762

SCREW-CAP HH,M8 X 1.25 X 20

$

$

Not available

8

Gravely 21900799

SCREW

$

$

Not available

9

Gravely 21900772

SCR-M6X1.0X40,SOC/CAP(105344)

$

$

Not available

10

Gravely 21900727

SCR-SCKT HD,CP,M6X1X18(105355)

$

$

Not available

11

Gravely 21900817

NUT-M8X1.25,HXFLG,NYLN(110093)

$

$

Not available

12

Gravely 21900774

WASHER-CUP

$

$

Not available

13

Gravely 21900724

WASHER

$

$

Not available

14

Gravely 21900808

WASHER

$

$

Not available

15

Gravely 21900779

WASHER

$

$

Not available

16

Gravely 21900786

PIN, DOWEL, 6 X 20

$

$

Not available

17

Gravely 21900815

SPRING-SLOTTED PIN,6MM

$

$

Not available

18

Gravely 21901849

RING, RETAINING BASIC EXTERNAL

$

$

Not available

19

Gravely 21900659

RING, SNAP

$

$

Not available

20

Gravely 21900660

RING-RETAINING

$

$

Not available

21

Gravely 21900695

RING,RETAINING

$

$

Not available

22

Gravely 21900666

RING,RETAINING,EXTERNAL SHR-66

$

$

Not available

23

Gravely 21900677

RING,RETAININGBASICINTRNL2.047

$

$

Not available

24

Gravely 21900716

RING-RETAINING

$

$

Not available

25

Gravely 21900675

RING,RETAINING

$

$

Not available

26

Gravely 21900670

RING, RETAINING, EXTERNAL

$

$

Not available

27

Gravely 21900800

RING, RETAINING

$

$

Not available

28

Gravely 21901469

SHAFT-PINNION,INPUT,BOSS,LW

$

$

Not available

29

Gravely 21900708

WASHER,THRUST

$

$

Not available

30

Gravely 21900712

WASHER,THRUST,.446X.88X.025

$

$

Not available

31

Gravely 21900728

SHIM 1.180 X .995

$

$

Not available

32

Gravely 21900729

SHIM 2.040 OD X 1.630 ID

$

$

Not available

33

Gravely 21901850

SPACER, 19.4 X 34 X 2

$

$

Not available

34

Gravely 21900690

BEARING,NEEDLE

$

$

Not available

35

Gravely 21900629

BEARING

$

$

Not available

36

Gravely 21900662

BEARING

$

$

Not available

37

Gravely 21900656

BEARING, BALL

$

$

Not available

38

Gravely 21900652

BEARING-BALL

$

$

Not available

39

Gravely 21900737

BEARING,NEEDLE

$

$

Not available

40

Gravely 21900747

BEARING, BALL

$

$

Not available

41

Gravely 21900794

BEARING,PLAIN,10X12X25

$

$

Not available

42

Gravely 21900792

PLAIN,BEARING 40X44X15

$

$

Not available

43

Gravely 21900663

BEARING, BALL

$

$

Not available

44

Gravely 21900710

SPRING-COMPRESSION

$

$

Not available

45

Gravely 21900722

SPRING-COMPRESSION

$

$

Not available

46

Gravely 21900742

SPRING, TORSION RETURN

$

$

Not available

47

Gravely 21900777

SPRING,COMPRSSN.54ODX.44IDX.05

$

$

Not available

48

Gravely 21901185

SPRING, COMPRESSION DETENT

$

$

Not available

49

Gravely 21901851

SPRING, TORSION

$

$

Not available

50

Gravely 21900711

WASHER-SPRING,210393

$

$

Not available

51

Gravely 21900734

TUBE, SNORKLE MACH

$

$

Not available

52

Gravely 21900669

GEAR-SECTOR,16T

$

$

Not available

53

Gravely 21900633

GEAR-SECTOR,31T-CUT TO 11T

$

$

Not available

54

Gravely 21900802

SHIFT FORK (270507)

$

$

Not available

55

Gravely 21900795

PARK PLATE (270509)

$

$

Not available

56

Gravely 21901854

STAR, DETENT

$

$

Not available

57

Gravely 21900738

SHAFT, IDLER, 29T

$

$

Not available

58

Gravely 21900813

SHAFT,REVERSE,25T (285878)

$

$

Not available

59

Gravely 21901189

SHAFT, OUTPUT, FRONT

$

$

Not available

60

Gravely 21900798

BELLCRANK

$

$

Not available

61

Gravely 21900791

COLLAR-SHIFT

$

$

Not available

62

Gravely 21900755

TUBE-VENT,90-1/4" HOSE

$

$

Not available

63

Gravely 21900723

DOG-ENGAGEMENT

$

$

Not available

64

Gravely 21900757

GEAR-LOW,67T(352856)

$

$

Not available

65

Gravely 21900763

DOG, ENGAGEMENT, 6-FACE

$

$

Not available

66

Gravely 21900760

GEAR, 53T

$

$

Not available

67

Gravely 21900739

GEAR, 46T, STAGE 3

$

$

Not available

68

Gravely 21900713

GEAR-13T,FRONT OUTPUT(352957)

$

$

Not available

69

Gravely 21900789

SHAFT, SHIFT

$

$

Not available

70

Gravely 21900812

GEAR,48T STAGE 2 (353115)

$

$

Not available

71

Gravely 21900783

SHIFT DOG, PARK/LOW (353357)

$

$

Not available

72

Gravely 21900814

RAIL-SHIFT SHAFT(353622)

$

$

Not available

73

Gravely 21901736

SPROCKET, 48T, 6-FACE

$

$

Not available

74

Gravely 21901855

PARK CAM

$

$

Not available

75

Gravely 21901856

DRUM, SHIFT MACH

$

$

Not available

76

Gravely 21900894

WELD-REAR MOUNT BRKT

$

$

Not available

77

Gravely 21900654

GEAR SUBASSEMBLY

$

$

Not available

78

Gravely 21901735

SUBASSY COVER, SECTOR GEARS

Note: (INCLUDES ALL HARDWARE)

$

$

Not available

79

Gravely 21900758

DIFF-LOCKING (411600)

$

$

Not available

80

Gravely 21900823

SUBASSY-COVER,DIFF (411601)

$

$

Not available

81

Gravely 21900804

SUBASSY-GEAR,39T SIDE (411607)

$

$

Not available

82

Gravely 21900805

SUBASSY-GEAR,39T SIDE (411608)

$

$

Not available

83

Gravely 21900718

ASM-SUB,PINION SHAFT(411759)

Note: (INCLUDES ALL HARDWARE)

$

$

Not available

84

Gravely 21900818

SUBASSY-GEAR,53T (411797)

Note: (INCLUDES ALL HARDWARE)

$

$

Not available

85

Gravely 21900765

SUBASSY,LH CASE(411919)

Note: (INCLUDES ALL HARDWARE)

$

$

Not available

86

Gravely 21900793

ROLLER PAWL

$

$

Not available

87

Gravely 21901853

SUBASSEMBLY, SHIFT FORK

$

$

Not available

88

Gravely 21901857

SUBASSEMBLY RH COVER

Note: (INCLUDES ALL HARDWARE)

$

$

Not available

89

Gravely 21900796

RETAINER-FORK

$

$

Not available

90

Gravely 21900801

COVER, BEARING, CENTER DRIVE

$

$

Not available

91

Gravely 21900803

BRKT-MOUNT(430592)

$

$

Not available

92

Gravely 21900851

BRKT-MNT,HARNESS

$

$

Not available

93

Gravely 21900895

BRKT-REAR MOUNT

$

$

Not available

94

Gravely 21900640

CHAIN, SILENT

$

$

Not available

95

Gravely 21900773

SOLENOID

$

$

Not available

96

Gravely 21900619

SENSOR-SPEED,TRANS

$

$

Not available

97

Gravely 21901881

SWITCH, ROTARY 2 PIN RESISTIVE

$

$

Not available

98

Gravely 21900776

PLUG,EXPANSION,1 1/4

$

$

Not available

99

Gravely 21900638

SEAL

$

$

Not available

100

Gravely 21900625

SEAL-TRIPLE LIP,VITON,40X70X7

$

$

Not available

101

Gravely 21900658

O-RING, -113

$

$

Not available

102

Gravely 21900721

O-RING

$

$

Not available

103

Gravely 21900684

O-RING

$

$

Not available

104

Gravely 21900628

SEAL-TRIPLE LIP 25X80X10

$

$

Not available
