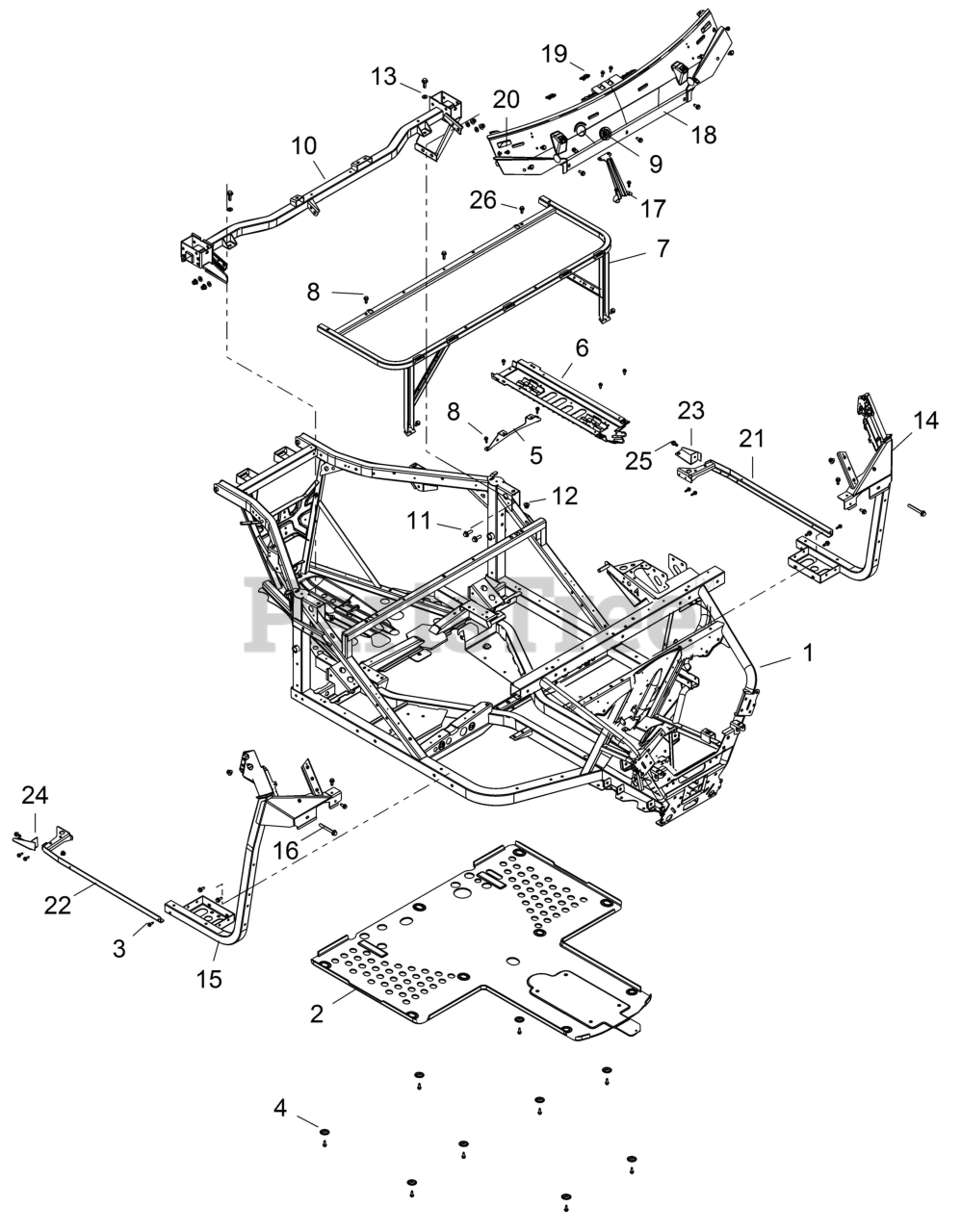

996200 (JSV 3000) - Gravely Atlas JSV Utility Vehicle, Base, Gas (SN: 190101 - 199999) Frame Parts Diagram

Atlas JSV Utility Vehicle, Base, Gas

Frame Parts Diagram

  • Title

1

Gravely 21901888

WELD-FRAME,MAIN,ARNS,GAS,BLK

$

$

Not available

2

Gravely 21900551

PLATE-SKID,BLK

$

$

Not available

3

Gravely 21900393

SCR-M6X1.0X20,HXHD,FLG,TDFM,BL

$

$

Not available

4

Gravely 21900485

WASHER SKID PLATE

$

$

Not available

5

Gravely 21900549

BRKT-ROUTING TRAY,BLK

$

$

Not available

6

Gravely 21900573

TRAY-ROUTING,BLK

$

$

Not available

7

Gravely 21900534

WELD-CAB/SEAT BASE,BLK

$

$

Not available

8

Gravely 21900396

BOLT-M8X1.25X20,HXFLG,TAP/R-OD

$

$

Not available

9

Gravely 21901465

GROMMET-ELEC,CAB,SLIT

$

$

Not available

10

Gravely 21900831

WELD-CAB SUPPORT,REAR,BLK

$

$

Not available

11

Gravely 21900415

SCR-HXFL-M10X1.25X30 8.8 ZOD

$

$

Not available

12

Gravely 21900465

NUT-M10X1.25,FLG,NYLOC-OLIVE D

$

$

Not available

13

Gravely 21900486

WASHER,3/8 FW

$

$

Not available

14

Gravely 21901884

WELD-FLOOR SUPPORT,LH,BLK

$

$

Not available

15

Gravely 21901885

WELD-FLOOR SUPPORT,RH,BLK

$

$

Not available

16

Gravely 21900444

SCR-HXFL-M10X1.25X80 8.8 ZOD

$

$

Not available

17

Gravely 21900900

BRKT-PLATE,CTR,PIN MT,TTN

$

$

Not available

18

Gravely 21901391

PLATE,WINDSHIELD MOUNT,LOW BLK

$

$

Not available

19

Gravely 21900344

CLIP-U SPEED NUT

$

$

Not available

20

Gravely 21900503

RIVET-TUFLOK,.315-.325X.787 (5

$

$

Not available

21

Gravely 21900528

WELD-ROCKER,LH,BLK

$

$

Not available

22

Gravely 21900529

WELD-ROCKER,RH,BLK

$

$

Not available

23

Gravely 21901305

BRACKET,SUPPORT,ROCKER,LH BLCK

$

$

Not available

24

Gravely 21901307

BRACKET,SUPPORT,ROCKER,RH BLCK

$

$

Not available

25

Gravely 21900447

SCR-TXTH-M6X1.0X25 RIE

$

$

Not available

26

Gravely 21901983

SCR, TFTX, M8X1.25 X 40

$

$

Currently unavailable
